DD532-50-5(85x50x40)

Order number: 70101461

Product description:
Dot lasermodule, green, 532nm, 50mW, 5V DC, 85x50mm, class 3B

• High Power
• external pcb
• Operating Voltage 5 V DC
• Laser Class 3B
• glas lenses anti reflex coated

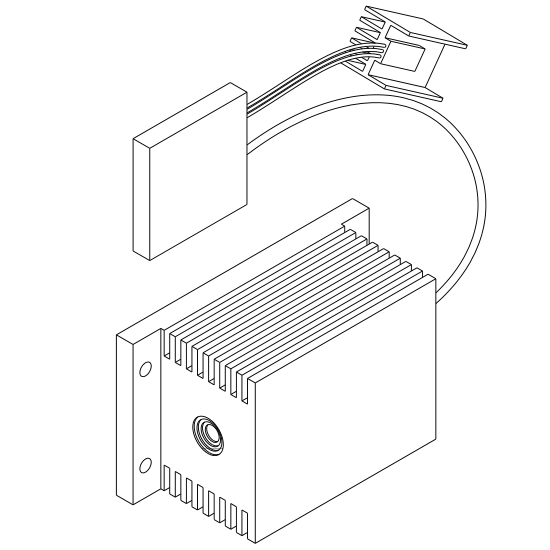

DD532-50-5(85x50x40) - Zeichnung isometrisch

470,50
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	532nm (grün)
Optical Power	50mW
Laser Class	3B
Divergence	0.5mrad
Beam Diameter	3.5mm
Size of Laserdot	4mm@10m
Operating Distance	100m
Optics	Glass lens AR coated
Beam Mode	TEM00
Laser technology	YVO4+KTP
Stability	+/- 20% @ 15-30°C
Size	50 x 85 x 40mm
Material	aluminium
Cable length	100mm
Focus	collimated
Output Aperture	5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	250 - 600, typ 450mA
Operating Temperature	15°C - 30°C
Storage Temperature	-40°C - 80°C
Warm up time	<15min
Weight	297g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.

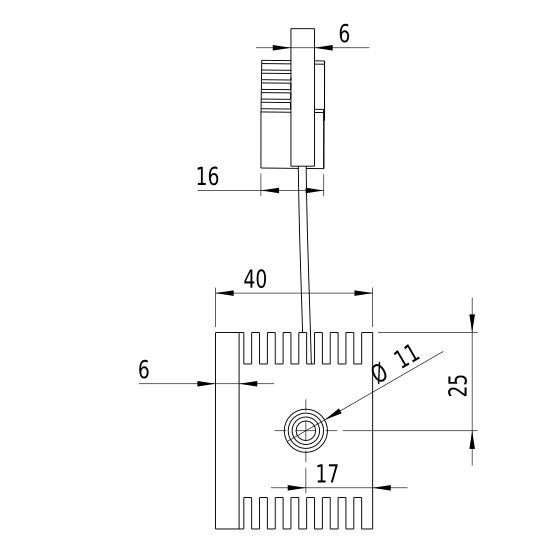

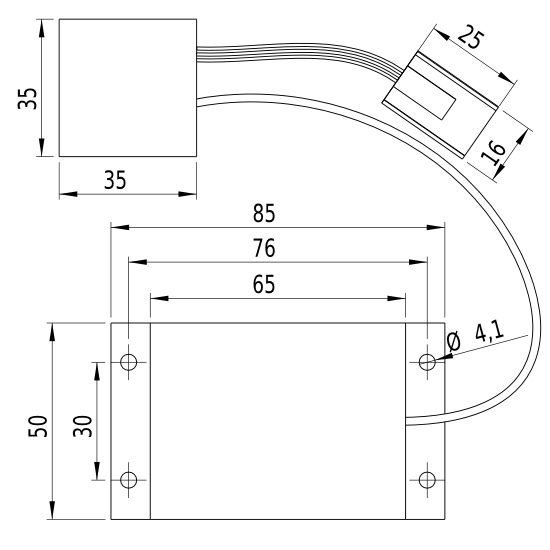

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
