CB635-2-5(16x45)-PL

Order number: 70110456

Product description:
isolated Cross lasermodule, red, 90°, 635nm, 2mW, 5V DC, 16x45mm, class 1, protection lens

• Operating Voltage 5 V DC
• Laser Class 1
• for medical devices
• image processing
• uniform line thickness

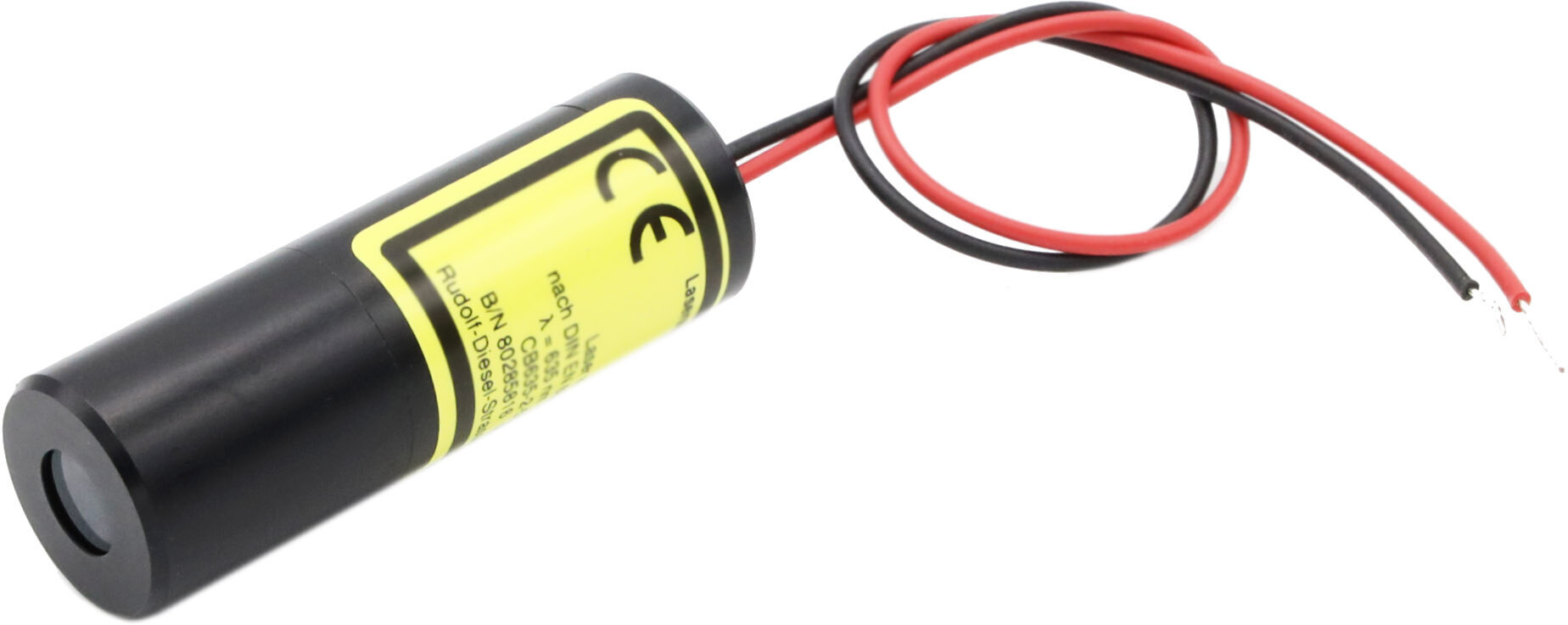

CB635-2-5(16x45)-PL - Produktbild 1
CB635-2-5(16x45)-PL - Hauptbild
CB635-2-5(16x45)-PL - Rendergrafik
CB635-2-5(16x45)-PL - Zeichnung
CB635-2-5(16x45)-PL - Zeichnung Front
CB635-2-5(16x45)-PL - Zeichnung isometrisch
Warnlabel 1
62,94
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeCross
    Wavelength635nm
    (rot)
    Optical Power2mW
    Laser Class1
    Divergence0.3mrad
    Fan Angle90°
    Line Thickness<1mm@2m
    Operating Distance2m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    SizeØ16mm 45mm
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusfixed (2000mm)
    Output Aperture7mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current20 - 55, typ 35mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight24g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Verticality< ±0.5°
    Stripping of wire5mm
  • Illustration and technical drawing
  • CB635-2-5(16x45)-PL - Produktbild 1
    CB635-2-5(16x45)-PL - Hauptbild
    CB635-2-5(16x45)-PL - Rendergrafik
    CB635-2-5(16x45)-PL - Zeichnung
    CB635-2-5(16x45)-PL - Zeichnung Front
    CB635-2-5(16x45)-PL - Zeichnung isometrisch
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
  • Matching accessories
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Order no.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    66.30 EUR
