CB650-1-5(20x90)5-ADJ-CON

Order number: 70134667

Product description:
Adjustable Cross lasermodule, red, 5°, 650nm, 1mW, 5V DC, 20x90mm, class 1M, incl. connector

• Operating Voltage 5V DC
• Laser Class 1M
• low cost
• Fan angle 5 °
• compact size

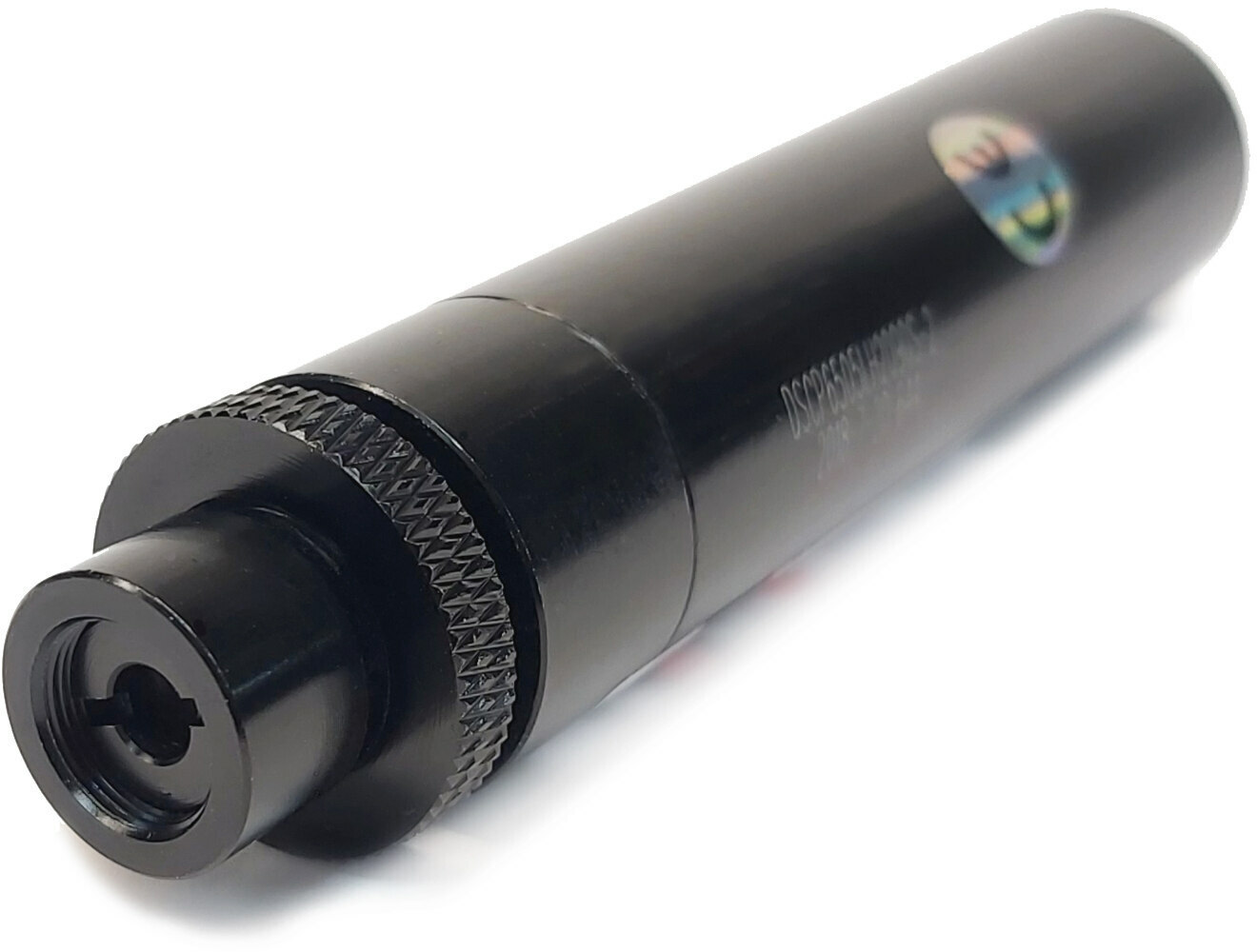

CB650-1-5(20x90)5-ADJ-CON - Produktbild 1

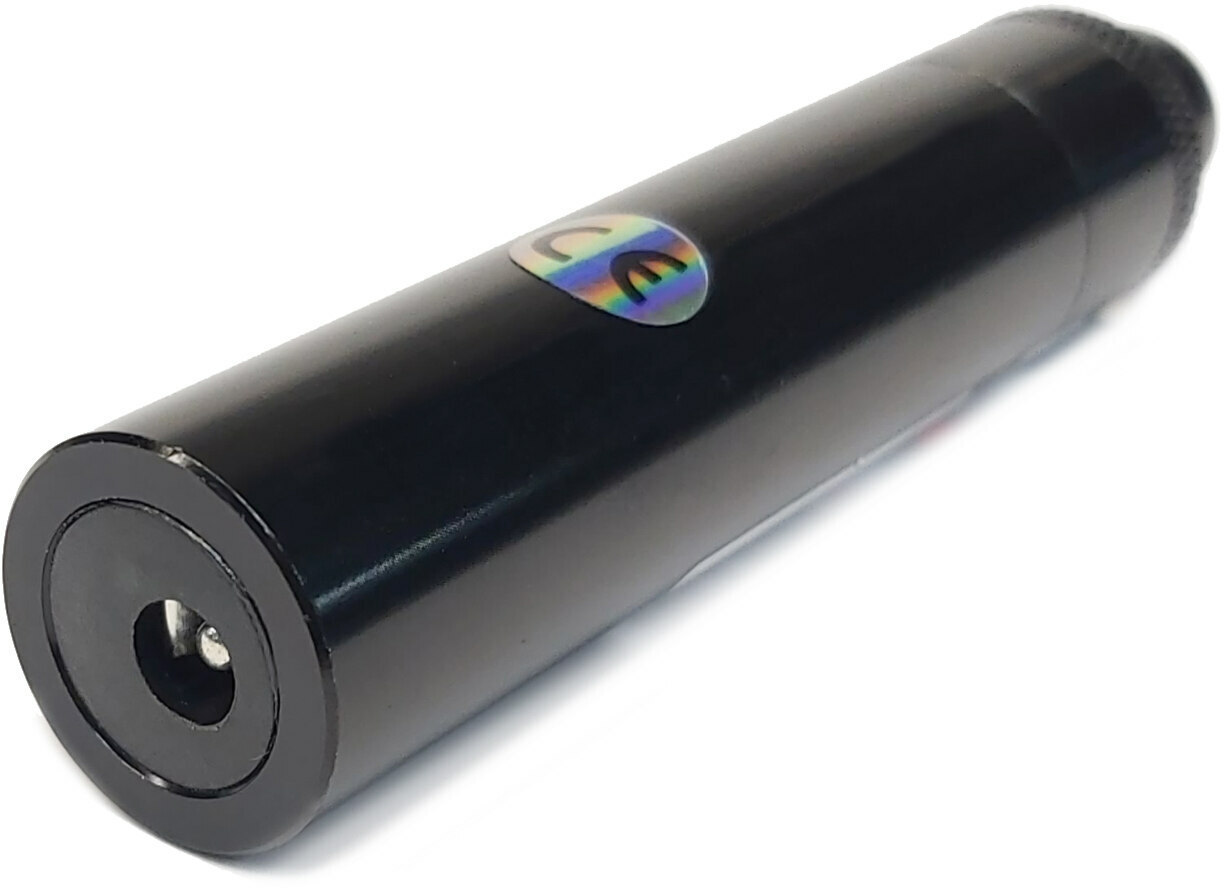

CB650-1-5(20x90)5-ADJ-CON - Hauptbild

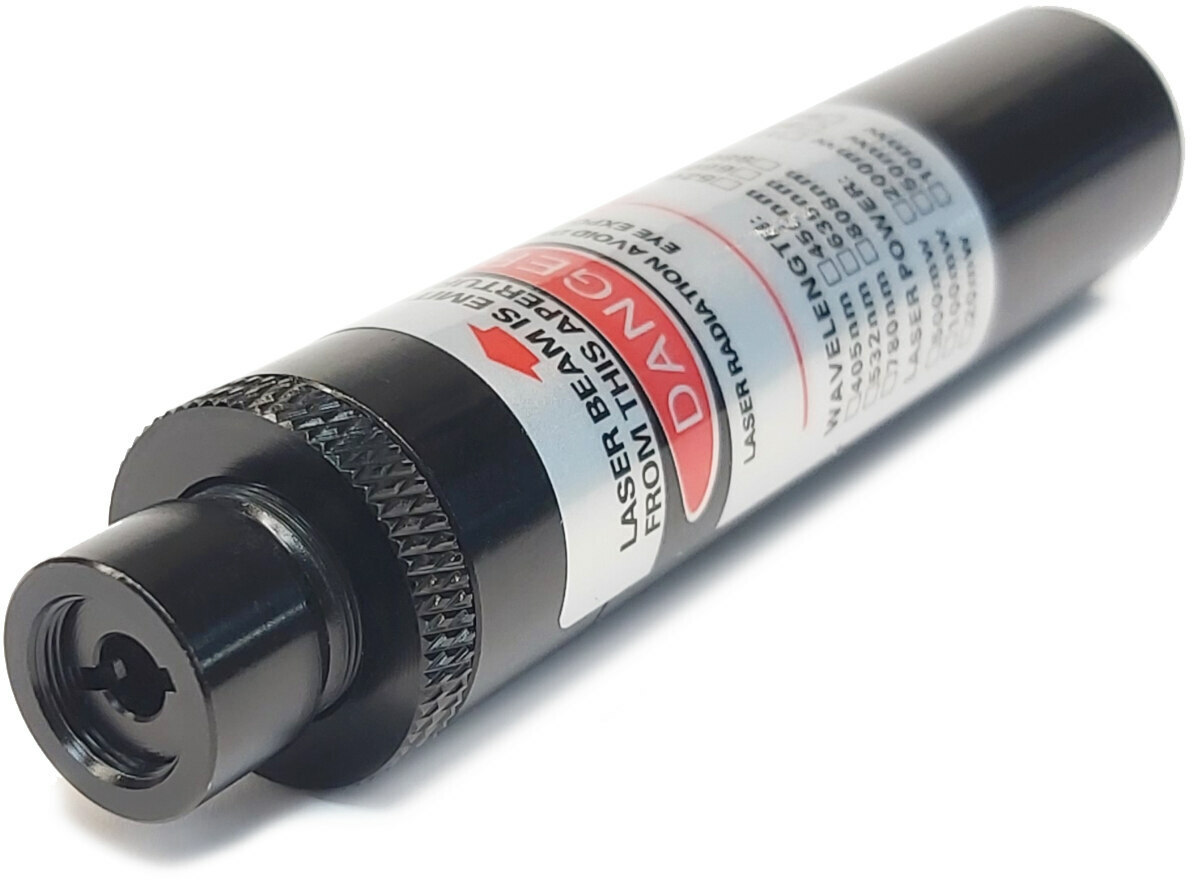

CB650-1-5(20x90)5-ADJ-CON - Rendergrafik
Warnlabel 1M
151,18
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Cross
    Wavelength 650nm
    (rot)
    Optical Power 1mW
    Laser Class 1M
    Divergence 0.3mrad
    Fan Angle
    Operating Distance 5m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø20mm 90mm
    Material aluminium
    Wire type 24AWG, black, 3mm
    Focus adjustable
    Output Aperture 6mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 5 - 40, typ 20mA
    Housing Color black
    Connector 2.5 mm DC socket (+ pole inner)
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 72g
    Power Supply LFNT-5
  • Illustration and technical drawing
  • CB650-1-5(20x90)5-ADJ-CON - Produktbild 1
    CB650-1-5(20x90)5-ADJ-CON - Hauptbild
    CB650-1-5(20x90)5-ADJ-CON - Rendergrafik
    Warnlabel 1M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Stecker Pin Ground: outer pole
    Positive:Cable color Positive: redred5V DC
    Stecker Pin Positive: inner pole
  • Matching accessories
  • MULTI-MOUNT-20(45x75)MULTI-MOUNT-20(45x75)
    Order no.: 70112511
    Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
    61.26 EUR
