MLH640-30-5(18x60)90-PWL-F250

Order number: 70146783

Product description:
line laser, red, 90°, 640nm, 30mW, 5V DC, 18x60mm, class 2M, uniform line distribution, Powell lens, Focus 250mm, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing
• TTl-Modulation
MLH640-30-5(18x60)90-PWL-F250 - Hauptbild
MLH640-30-5(18x60)90-PWL-F250 - Produktbild 1

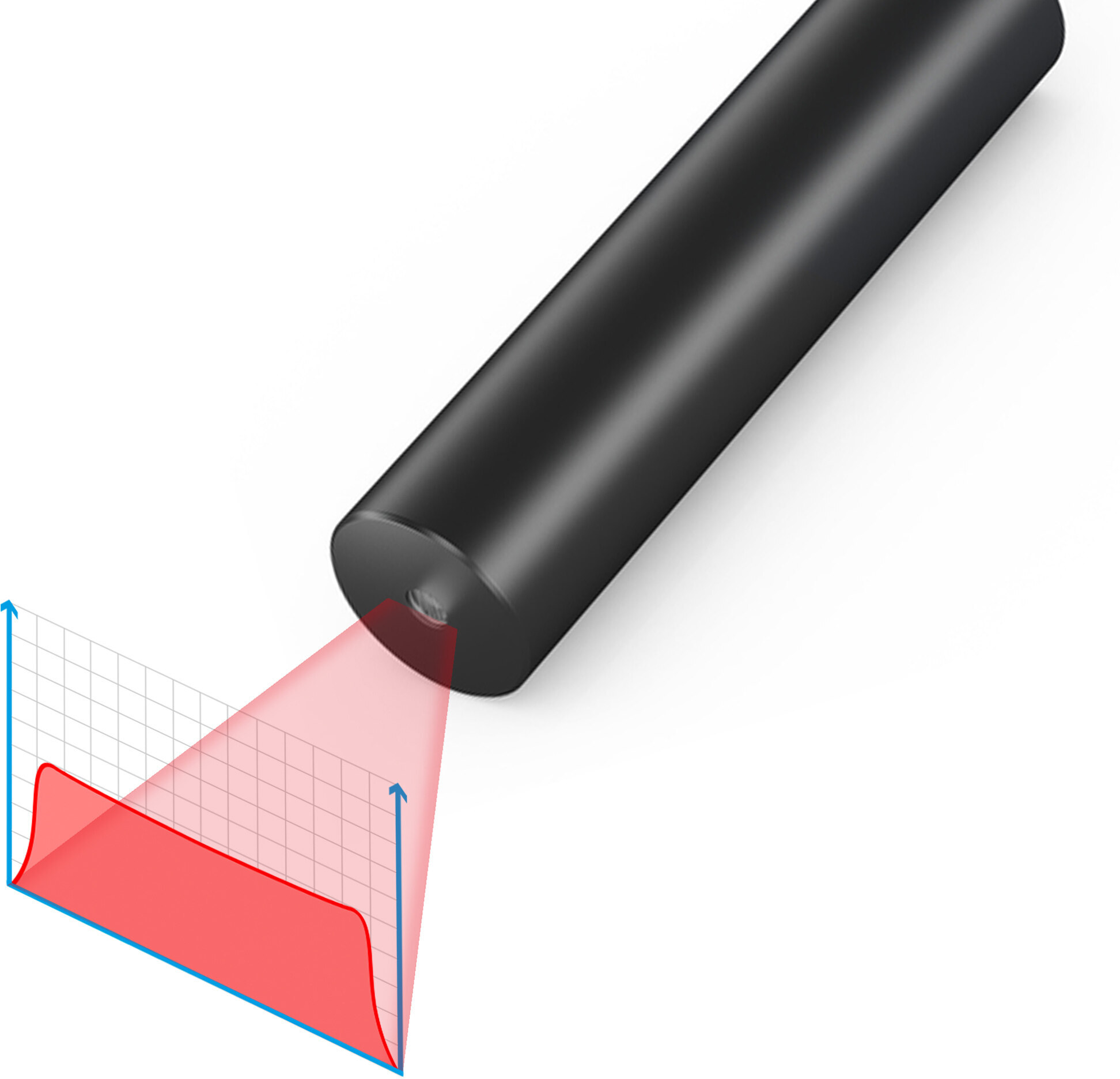

MLH640-30-5(18x60)90-PWL-F250 - Rendergrafik
Warnlabel 2M
1.109,16
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength640nm
    (rot)
    Optical Power30mW
    Laser Class2M
    Divergence1mrad
    Fan Angle45°
    Line Thickness≤300μm (@250mm)
    Operating Distance0.25m
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Opt. Power Stability at const. Temp.<5%
    Size
    Materialaluminium
    Cable length200mm
    Wire type26AWG, UL, isolated
    Focusfixed (250mm)
    Output Aperture4mm
    Potential of Housinginsulated
    Max. Mod. Frequency100kHz
    Lifetime>10000h
    Operating Voltage4.5 - 5, typ 5V DC
    Operating Current50 - 100, typ 80mA
    Housing Colorblack
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight20g
    Stripping of wire5mm
  • Illustration and technical drawing
  • MLH640-30-5(18x60)90-PWL-F250 - Hauptbild
    MLH640-30-5(18x60)90-PWL-F250 - Produktbild 1
    MLH640-30-5(18x60)90-PWL-F250 - Rendergrafik
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
    Modulation:Cable color Modulate: yellowyellow100kHz
  • Matching accessories
  • LFNT-5LFNT-5
    Order no.: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    22.61 EUR
