DJ635-0.7-5(10.6x12.2)-F100

Order number: 70140873

Product description:
Dot lasermodule, red, 635nm, 0.7mW, 5V DC, 10.6x12.2mm, class 2

• compact size
• Laser Class 2
• low power consumption
• Operating Voltage 3-6V DC

94,03
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	635nm (rot)
Optical Power	0.7mW
Laser Class	2
Divergence	2mrad
Size of Laserdot	<0.07mm@0.1m
Operating Distance	0.1m
Optics	acryl lense
Laser technology	diode
Size
Material	Bronze
Cable length	115mm
Wire type	26AWG, UL, isolated
Focus	fixed (100mm)
Output Aperture	5mm
Potential of Housing	VDD(+)
Lifetime	>10000h
Operating Voltage	3 - 6, typ 5V DC
Operating Current	10 - 40, typ 30mA
Housing Color	brass
Operating Temperature	-10°C - 50°C
Storage Temperature	-20°C - 60°C
Weight	5g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	3mm

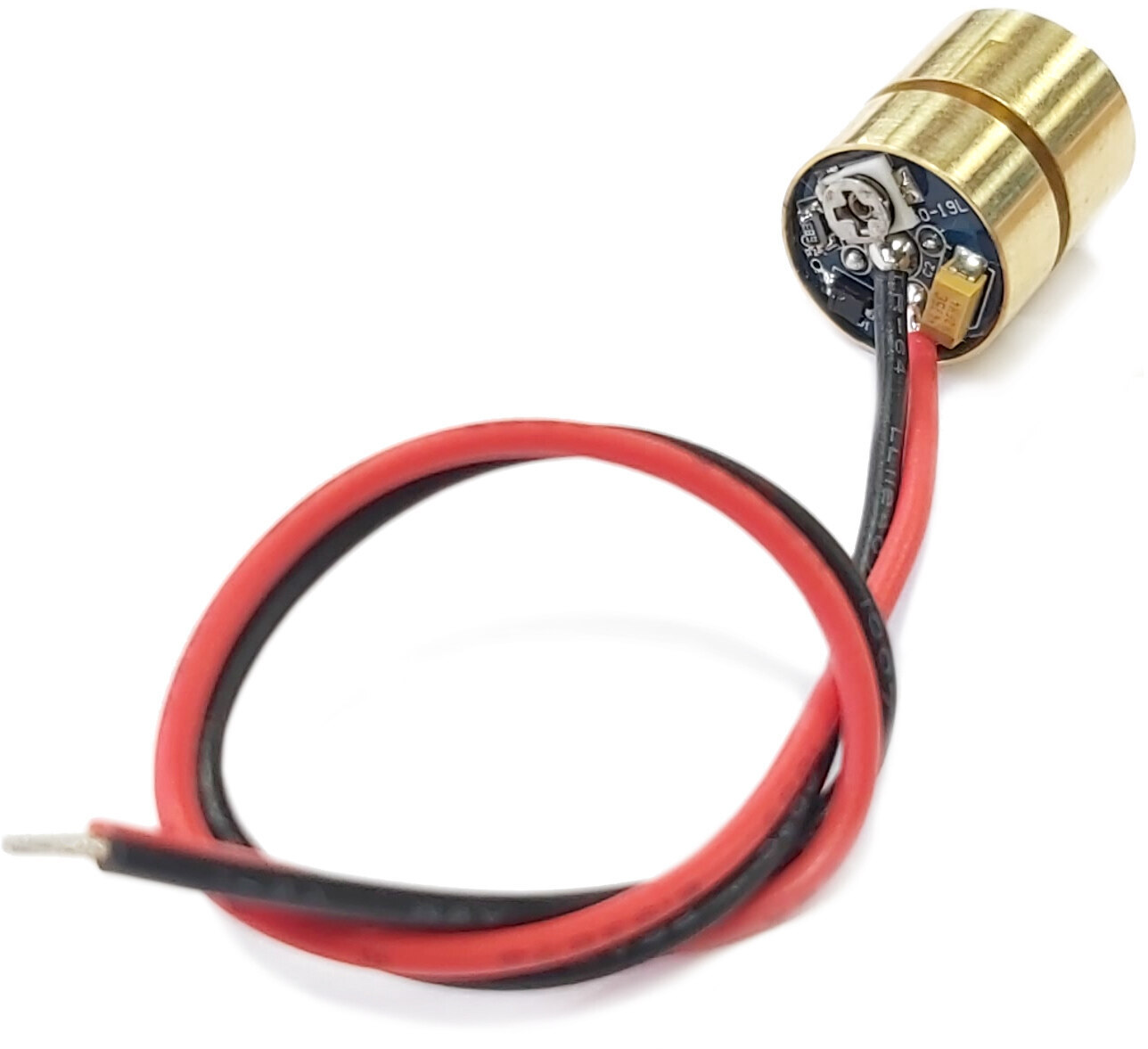

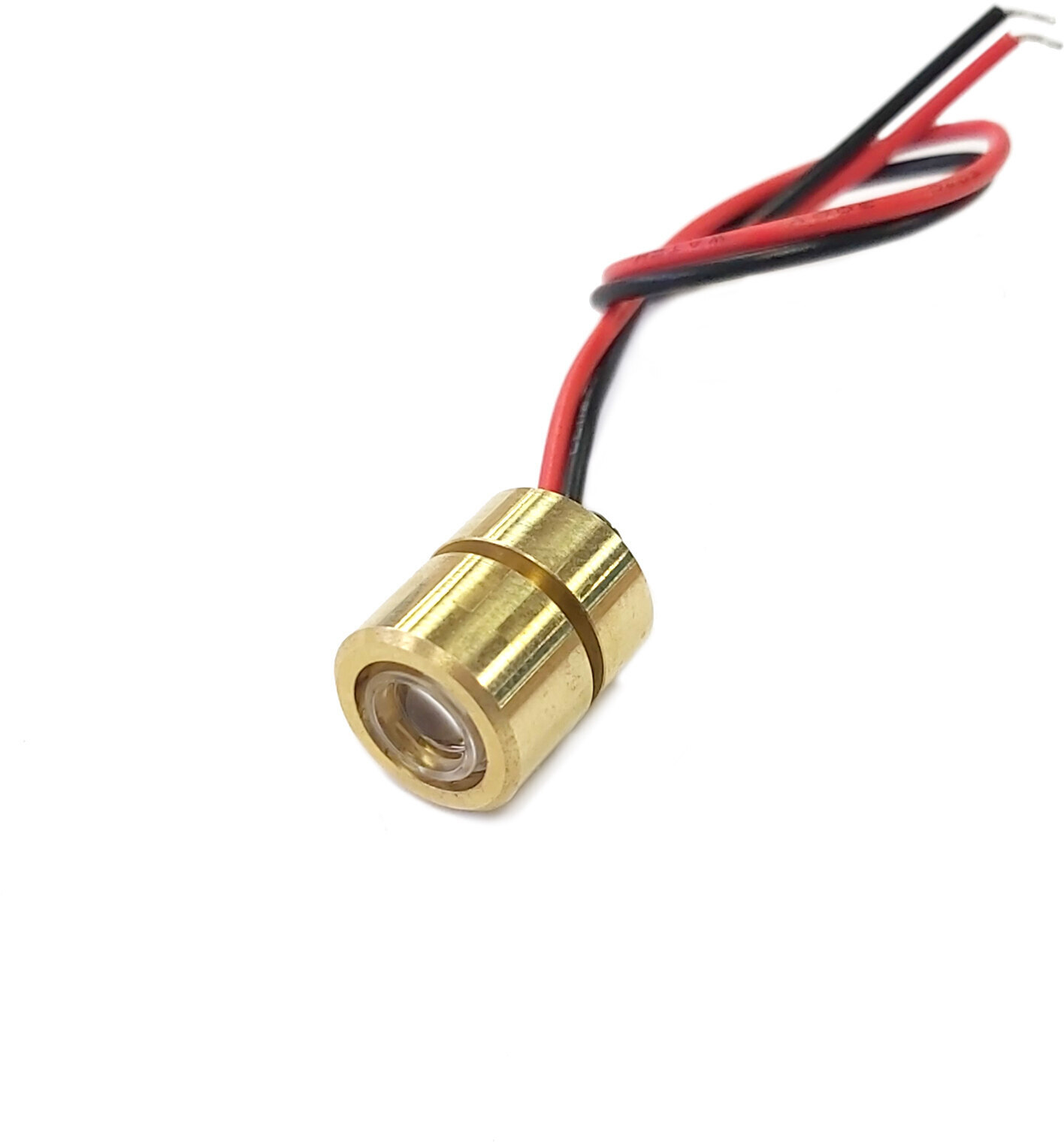

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
