LH520-10-24(32x115)110-PWL-M12

Order number: 70134766

Product description:
Isolated Line lasermodule, green, 110°, 520nm, 10mW, uniform line intensity, Powell lens, 12-24V DC, 32x115mm, class 2M, with M12 connector

• Operating Voltage 24 V DC
• Isolated housing
• Laser Class 2M
• Protection lens
• M12 Connector

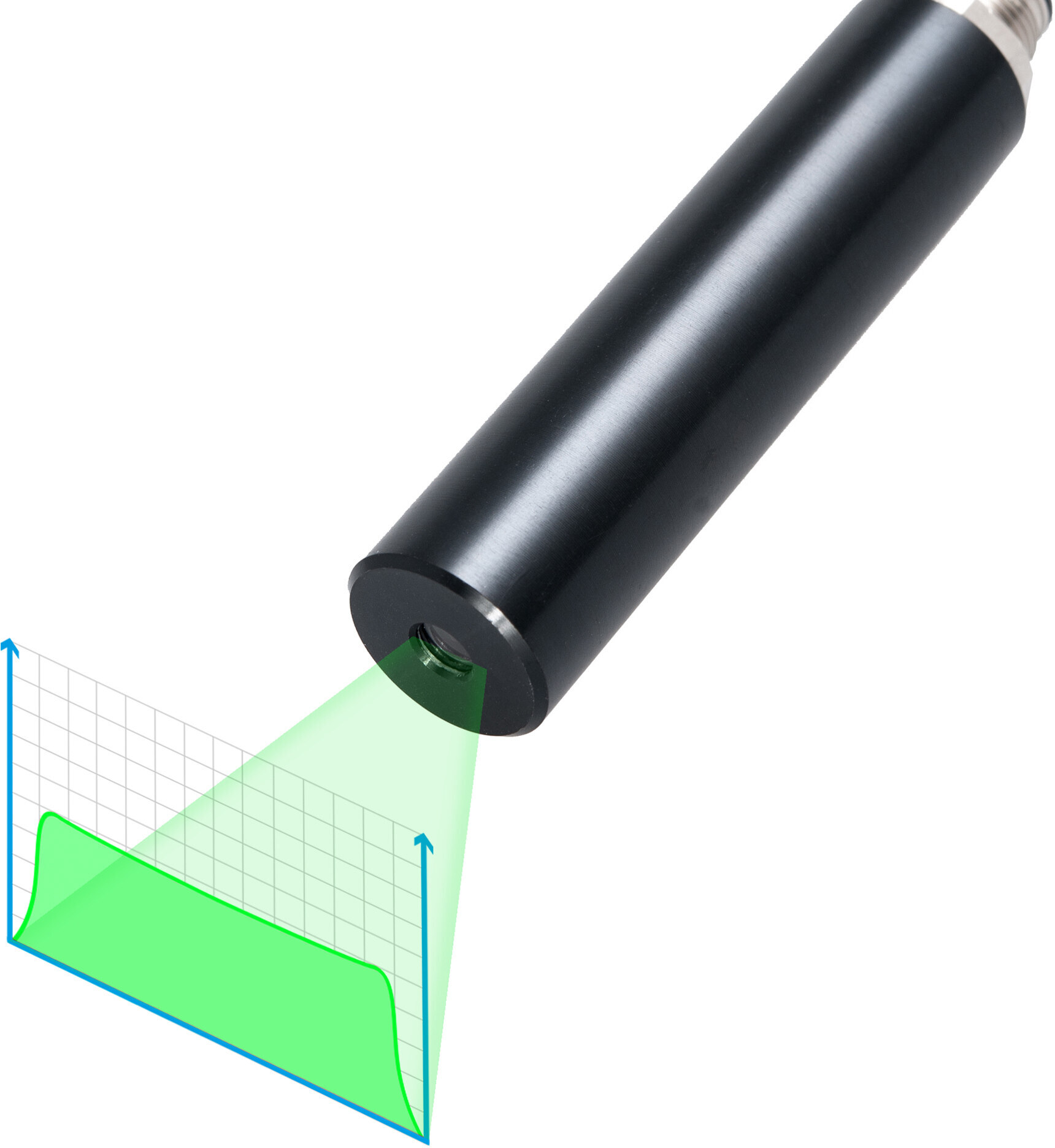

LH520-10-24(32x115)110-PWL-M12 - Produktbild 1
LH520-10-24(32x115)110-PWL-M12 - Hauptbild
LH520-10-24(32x115)110-PWL-M12 - Produktbild 2
Warnlabel 2M
789,83
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 10mW
    Laser Class 2M
    Divergence 1mrad
    Fan Angle 110°
    Line Thickness <1.5mm@3m
    Operating Distance 3m
    Optics Powell Lens
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø32mm 115mm
    Material aluminium
    Focus fixed (3000mm)
    Output Aperture 5.5mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 12 - 26.4, typ 24V DC
    Operating Current 120 - 250, typ 180mA
    Housing Color black
    Connector CON-M12
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 160g
    Protection Class IPIP 67
  • Illustration and technical drawing
  • LH520-10-24(32x115)110-PWL-M12 - Produktbild 1
    LH520-10-24(32x115)110-PWL-M12 - Hauptbild
    LH520-10-24(32x115)110-PWL-M12 - Produktbild 2
    Warnlabel 2M
  • Matching accessories
  • NT-TT-12NT-TT-12
    Order no.: 70122992
    Power Supply with connector, Output: 12V DC, Input: 90-264V AC, 50-60Hz, Output Power: 30W max. with DC plug 2,5x5,5x9,5mm. DC Cord 1800mm
    46.97 EUR
