LH635-10-5(22x80)120-ADJ-POTI

Order number: 70134636

Product description:
Isolated Adjustable Line lasermodule, red, 120°, 635nm, 10mW, 5V DC, 22x80mm, class 1,Laser line thickness, brightness and line length adjustable, incl. connector

• Operating Voltage 5V DC
• Laser Class 1
• low cost
• Fan angle 120 °
• compact size

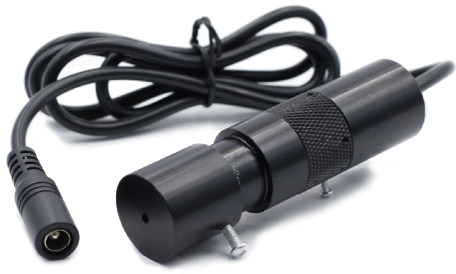

LH635-10-5(22x80)120-ADJ-POTI - Hauptbild
Warnlabel 1
327,65
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 635nm
    (rot)
    Optical Power 10mW
    Laser Class 1
    Divergence 1mrad
    Fan Angle 120°
    Line Thickness adjustable
    Operating Distance 3m
    Optics Glass lens AR coated
    Laser technology diode
    Size Ø22mm 80mm
    Material aluminium
    Cable length 1000mm
    Wire type 18AWG, black, 3,6mm
    Focus adjustable
    Output Aperture 2.5mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 15 - 60, typ 30mA
    Housing Color black
    Connector 2.5 mm DC socket (+ pole inner)
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 88g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
  • Illustration and technical drawing
  • LH635-10-5(22x80)120-ADJ-POTI - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Stecker Pin Ground: outer pole
    Positive:Cable color Positive: redred5V DC
    Stecker Pin Positive: inner pole
  • Matching accessories
  • MULTI-MOUNT-22(45x75)MULTI-MOUNT-22(45x75)
    Order no.: 70115215
    Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
    61.26 EUR
