LFD520-1-3(19x86)

Order number: 70150964

Product description:
Dot Pointer green 1mW with CR123A, laser class 2

• Laser Class 2
• with battery
• compact size
• uniform line thickness
• low cost

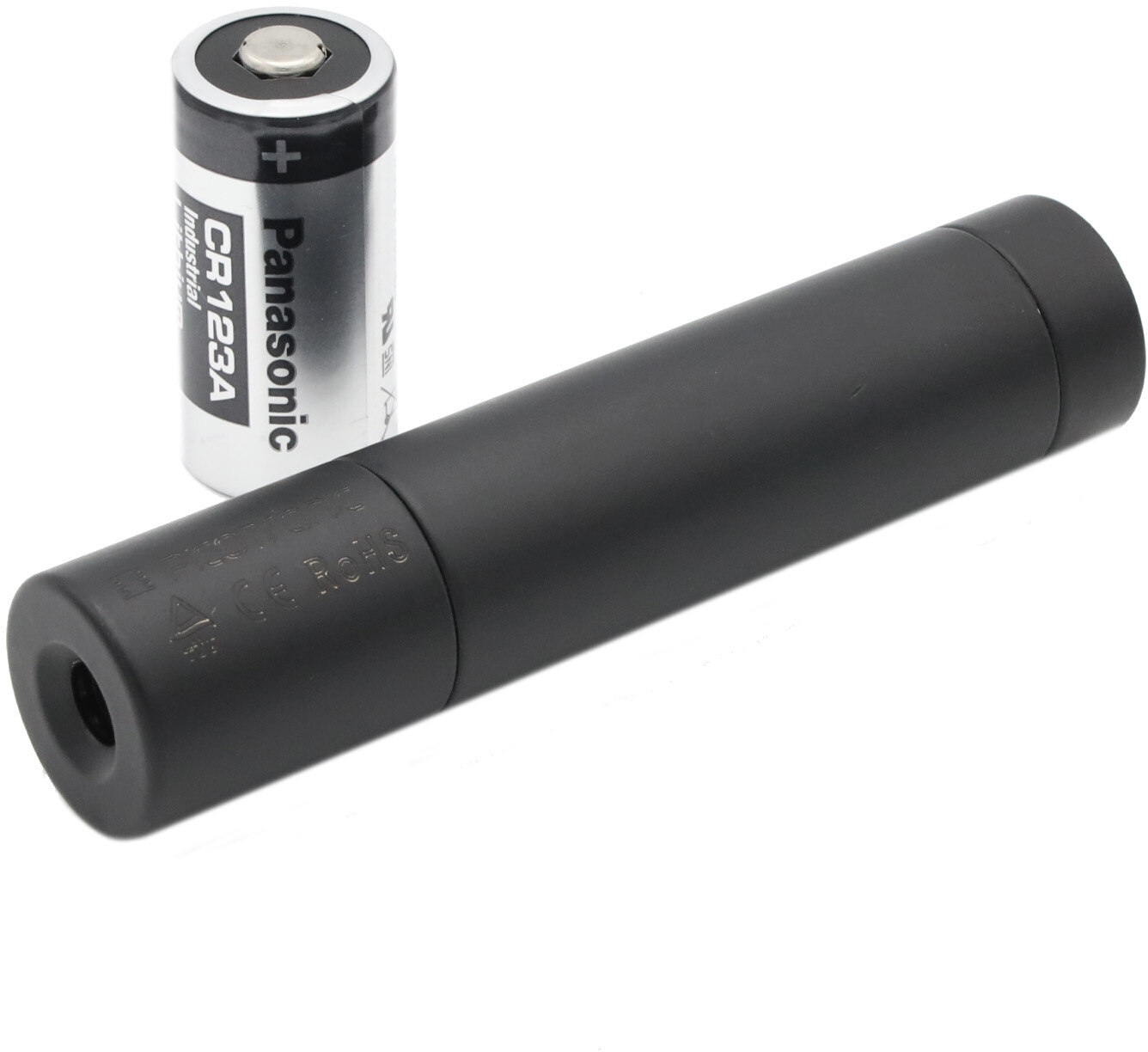

LFD520-1-3(19x86) - Produktbild 1

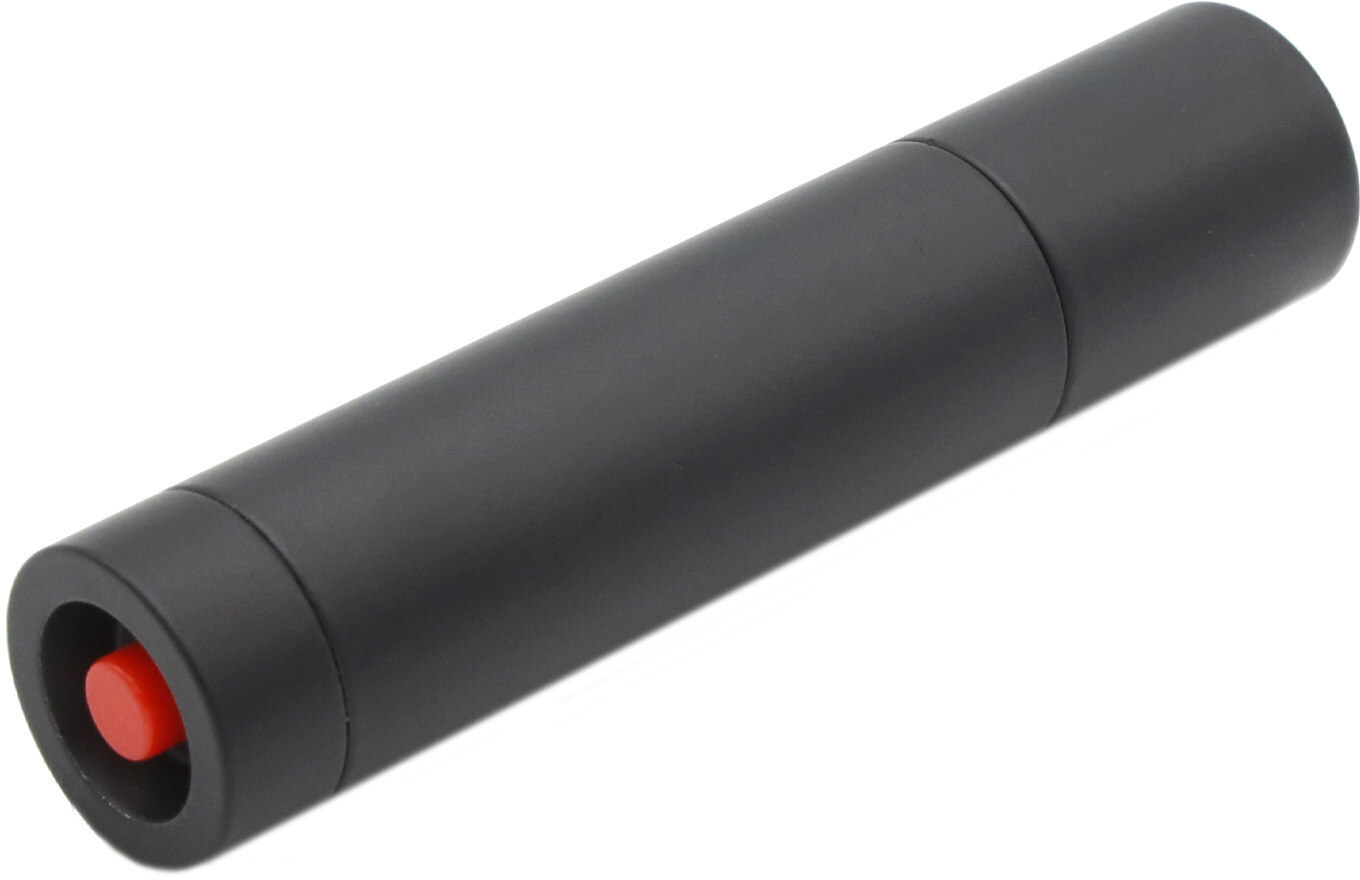

LFD520-1-3(19x86) - Hauptbild
Warnlabel 2
49,50
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 520nm
    (grün)
    Optical Power 1mW
    Laser Class 2
    Divergence 1mrad
    Size of Laserdot <3..4mm@5m
    Operating Distance 5m
    Optics acryl lense
    Laser technology Single Mode Diode
    Axial Divergence ±3°
    Size Ø19mm 86mm
    Material aluminium
    Focus fixed (5.0m)
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >3000h
    Operating Voltage 3 - 3.7, typ 3V DC
    Operating Current 20 - 100, typ 50mA
    Battery CR123A Lithium Battery, 3V 1400mAh
    Operating Temperature -20°C - 50°C
    Storage Temperature -20°C - 60°C
    Weight 25g
  • Illustration and technical drawing
  • LFD520-1-3(19x86) - Produktbild 1
    LFD520-1-3(19x86) - Hauptbild
    Warnlabel 2
  • Matching accessories
  • MULTI-MOUNT-19(45x75)MULTI-MOUNT-19(45x75)
    Order no.: 70115192
    Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
    61.26 EUR
