LFD650-3-3(6x20)-3000H-ADJ
Order number: 70133578
Product description:

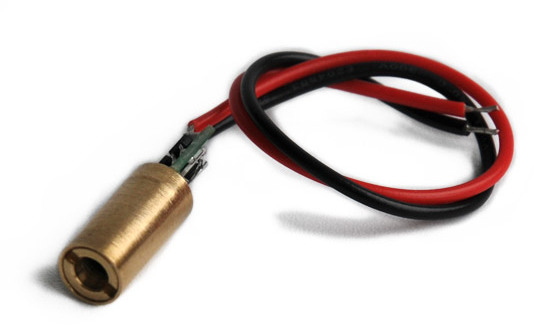

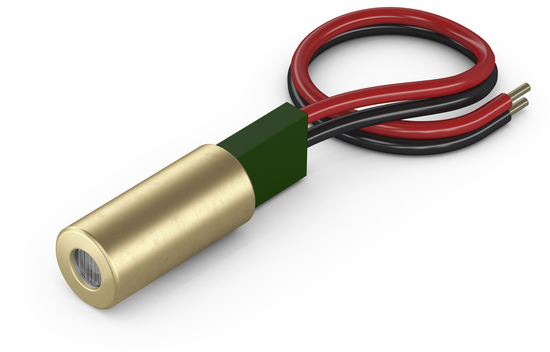

Adjustable Dot lasermodule, red, 650nm, 3mW, 3V DC, 6x20mm, class 3R
• Operating Voltage 3 V DC
• Laser Class 3R
• compact size
• adjustable focus
• low cost
Product description:
Adjustable Dot lasermodule, red, 650nm, 3mW, 3V DC, 6x20mm, class 3R
• Operating Voltage 3 V DC
• Laser Class 3R
• compact size
• adjustable focus
• low cost

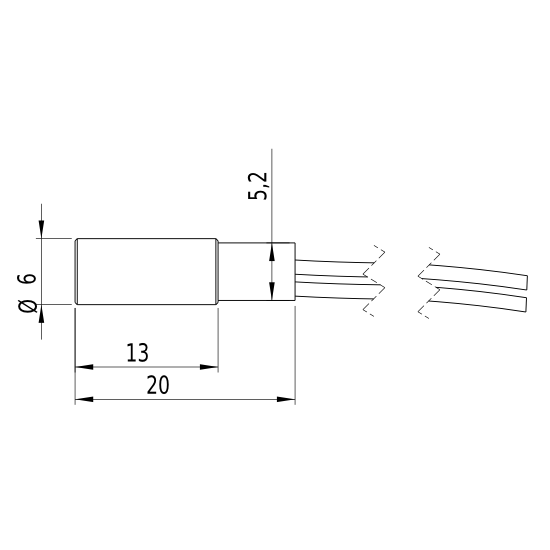

-3000H.png "LFD650-3-3(6x20)-3000H-ADJ - Zeichnung")

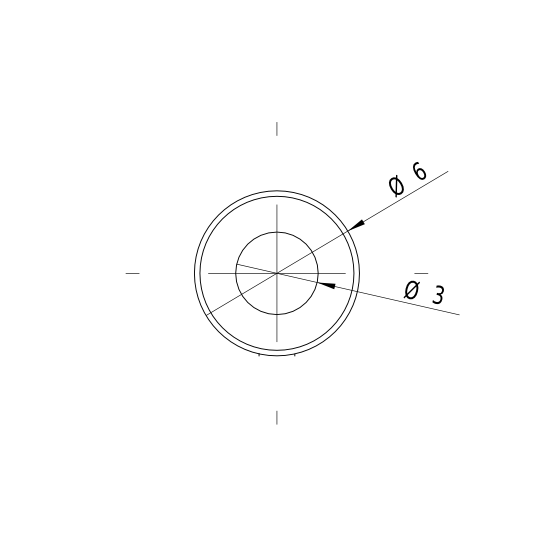

-3000H.png "LFD650-3-3(6x20)-3000H-ADJ - Zeichnung Front")

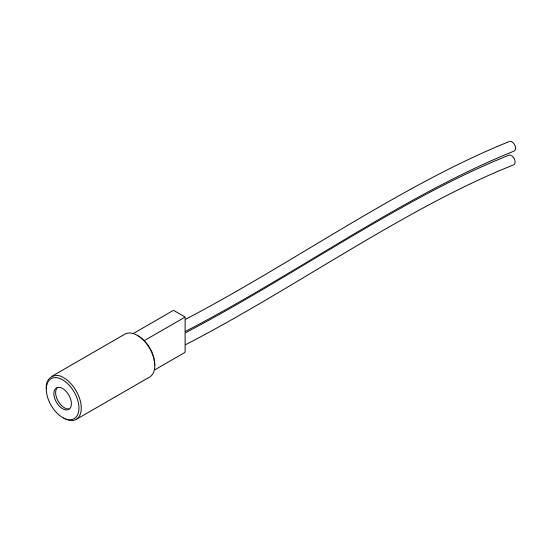

-3000H.png "LFD650-3-3(6x20)-3000H-ADJ - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 3mW Laser Class 3R Divergence 1mrad Size of Laserdot adjustable Operating Distance 10m Optics acryl lense Laser technology Single Mode Diode Size Ø6mm 20mm Material Bronze Cable length 100mm Wire type 26AWG, 0,14mm² Focus adjustable Output Aperture 3mm Potential of Housing VDD(+) Lifetime >3000h Operating Voltage 2.6 - 3.3, typ 3V DC Operating Current 10 - 30, typ 20mA Operating Temperature -10°C - 40°C Storage Temperature -40°C - 80°C Weight 2.2g - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 3V DC - Matching accessories
MULTI-MOUNT-06(45x75)
Order no.: 70115154
Mount for Lasermodul 6mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
