L520-2-3(10x38)-F5000-C127

Order number: 70129595

Product description:
Isolated line laser, 520nm, green, 2mW, 3-7V DC, 90°, 10x38mm, class 1

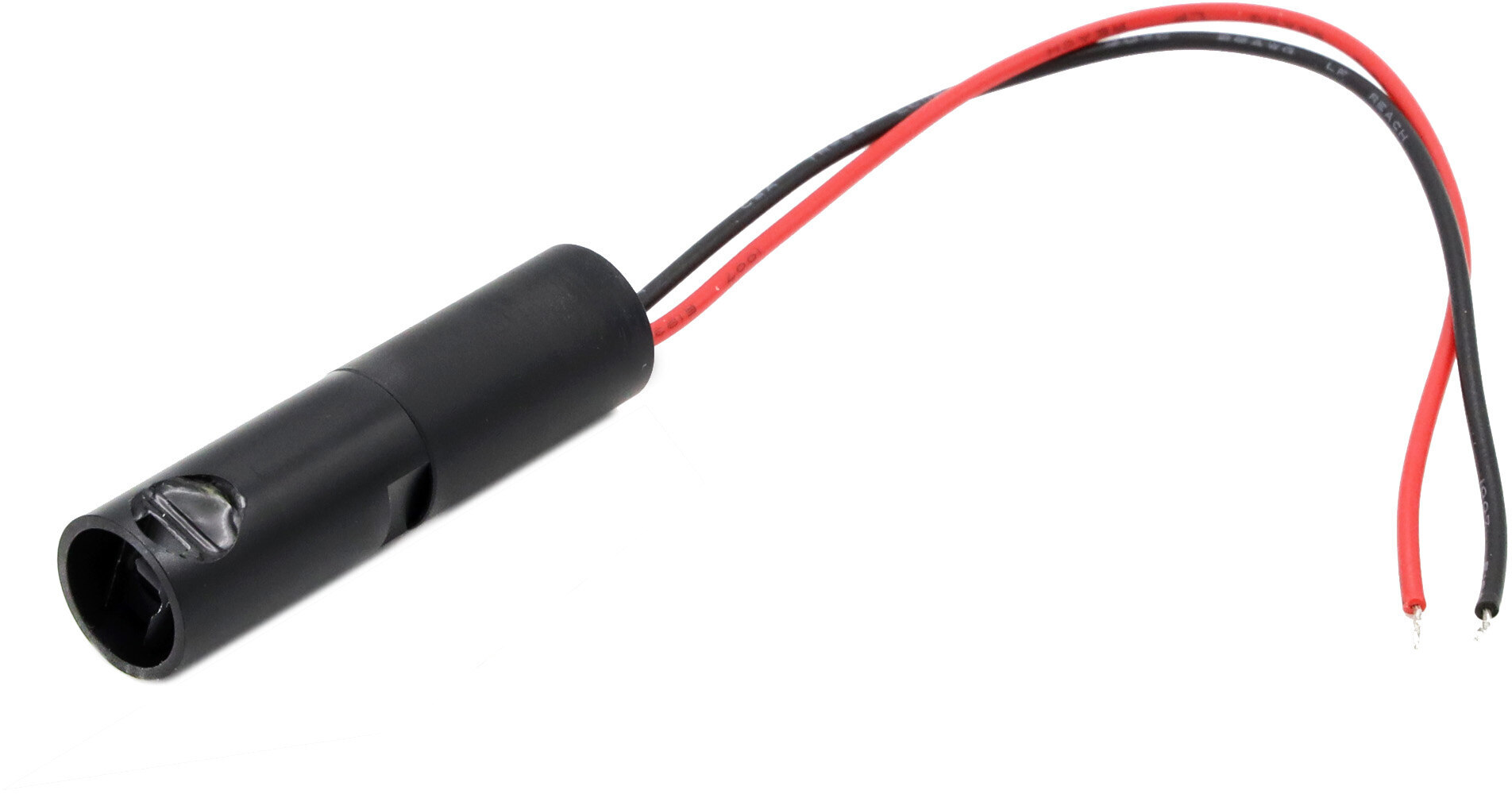

L520-2-3(10x38)-F5000-C127 - Rendergrafik

201,60
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	2mW
Laser Class	1
Fan Angle	90°
Line Thickness	3mm@5m
Operating Distance	1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size	Ø10mm 38mm
Material	aluminium
Cable length	127mm
Wire type	26AWG, UL, isolated
Focus	fixed (5.0m)
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	3 - 7, typ 3V DC
Operating Current	35 - 100, typ 50mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-20°C - 85°C
Weight	5.2g
Stripping of wire	3mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
MAGNETIC-MOUNT-PRO-10(48X86)
Order no.: 70160970
MAGNETIC-MOUNT-PRO for Lasermodul 10mm, Diameter 48mm, Height 86mm,
83.95 EUR
Downloads
Data sheet Fax order form
