LD520-10-6(15x22)

Order number: 70129380

Product description:
line lasermodule, 90°, green, 532nm, 10mW, 6V DC, 15x22mm, class 1

• Operating Voltage 6 V DC
• Laser Class 1
• compact size
• glas lenses anti reflex coated
• fixed focus

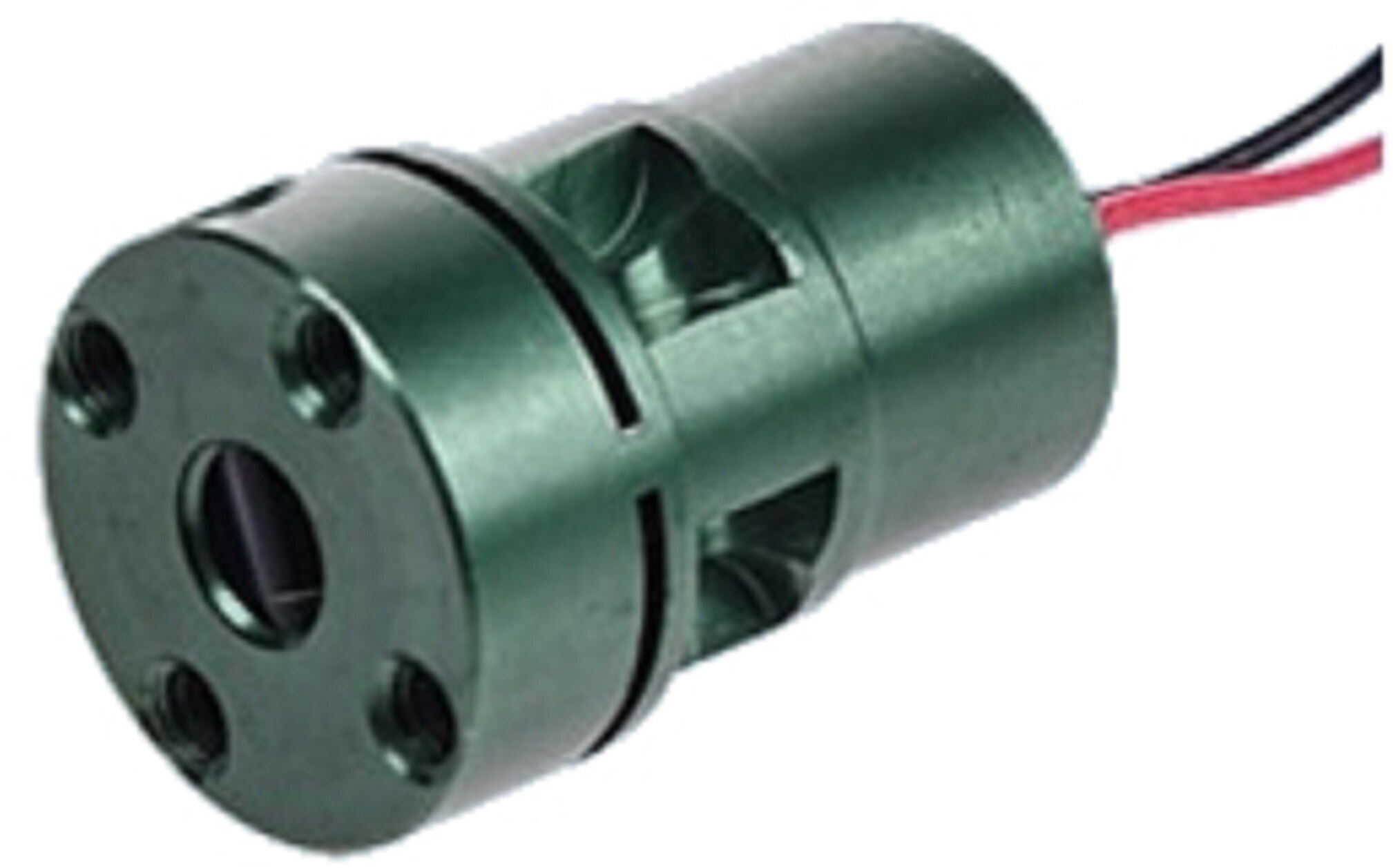

LD520-10-6(15x22) - Produktbild 1
LD520-10-6(15x22) - Hauptbild
Warnlabel 1
116,72
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 10mW
    Laser Class 1
    Divergence 0.5mrad
    Fan Angle 90°
    Line Thickness <3mm@6
    Operating Distance 6m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Axial Divergence ±1°
    Size Ø15mm 22mm
    Material aluminium
    Cable length 150mm
    Wire type 28AWG, Typ 1061, UL1061
    Focus fixed
    Output Aperture 4.5mm
    Lifetime >5000h
    Operating Voltage 6 - 7.5, typ 6V DC
    Operating Current max 100, typ 60mA
    Housing Color black
    Operating Temperature 0°C - 60°C
    Storage Temperature -20°C - 60°C
    Weight 10g
    Stripping of cable cover 8mm

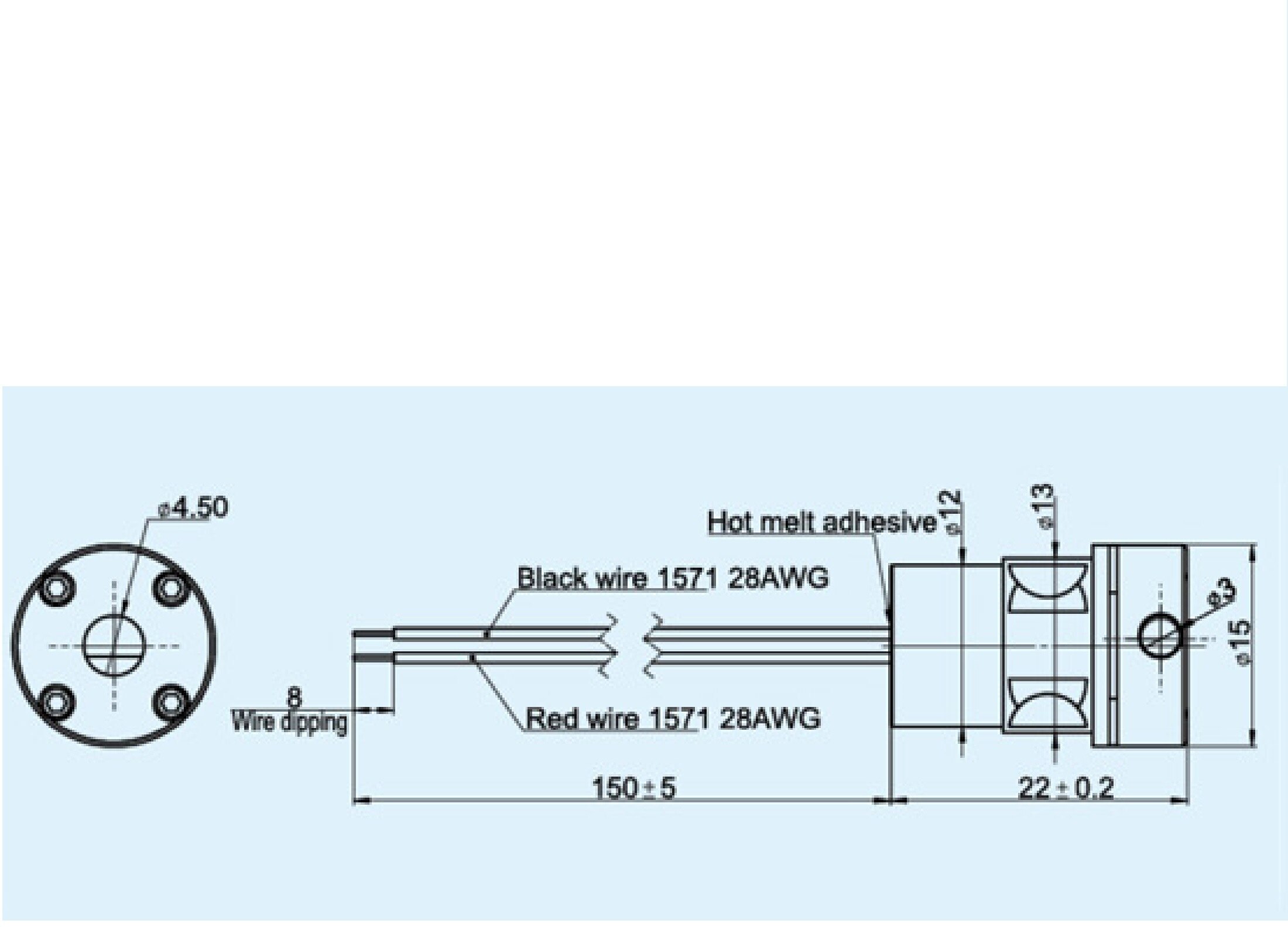

  • Illustration and technical drawing
  • LD520-10-6(15x22) - Produktbild 1
    LD520-10-6(15x22) - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred6V DC
  • Matching accessories
  • MULTI-MOUNT-15(45x75)MULTI-MOUNT-15(45x75)
    Order no.: 70114102
    Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
    66.30 EUR
