DI635-1-12(12x45)-F100-AP

Order number: 70119930

Product description:
Isolated Dot lasermodule, red, 635nm, 1mW, 12V DC, 12x45mm, class 2

• axial parallel
• glas lenses anti reflex coated
• small package
• Operating Voltage 12 V DC
• Laser Class 2
DI635-1-12(12x45)-F100-AP - Hauptbild
DI635-1-12(12x45)-F100-AP - Rendergrafik

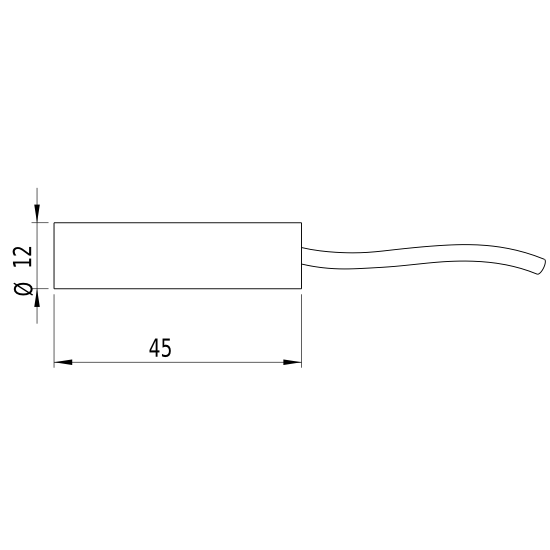

DI635-1-12(12x45)-F100-AP - Zeichnung

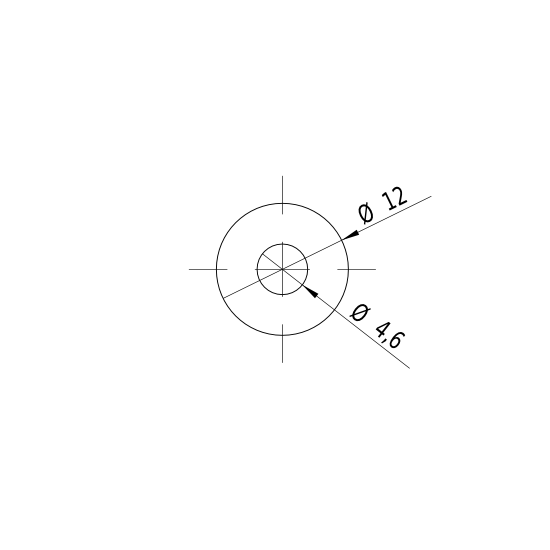

DI635-1-12(12x45)-F100-AP - Zeichnung Front

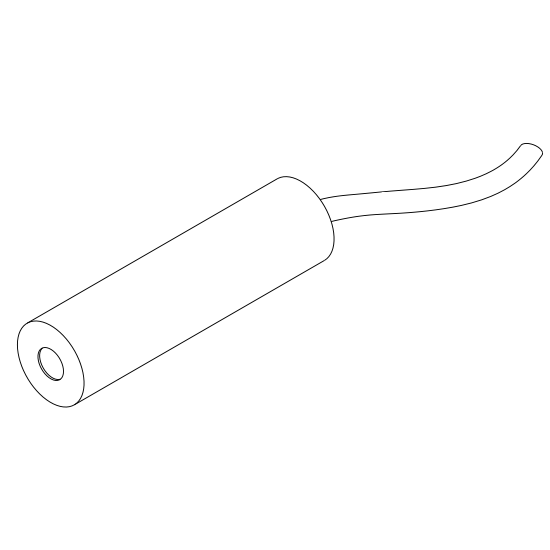

DI635-1-12(12x45)-F100-AP - Zeichnung isometrisch
Warnlabel 2
108,32
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 635nm
    (rot)
    Optical Power 1mW
    Laser Class 2
    Divergence 1.5mrad
    Size of Laserdot <0.3mm@0.1m
    Operating Distance 0.1m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Axial Divergence ±0.1°
    Size Ø12mm 45mm
    Material aluminium
    Cable length 100mm
    Focus fixed (100mm)
    Output Aperture 2mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 11.7 - 12.3, typ 12V DC
    Operating Current 10 - 30, typ 20mA
    Housing Color silver
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 3.5g
    Stripping of wire 5mm
  • Illustration and technical drawing
  • DI635-1-12(12x45)-F100-AP - Hauptbild
    DI635-1-12(12x45)-F100-AP - Rendergrafik
    DI635-1-12(12x45)-F100-AP - Zeichnung
    DI635-1-12(12x45)-F100-AP - Zeichnung Front
    DI635-1-12(12x45)-F100-AP - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred12V DC
