Base plate with mounting mandrel Ø22mm, aluminum
E658-20-3(20x120)APT15
Order number: 70116793
Product description:
expander laser, red, 658nm, 20mW, 3V DC, 20x120mm, class 3B
• Operating Voltage 3 V DC
• Laser Class 3B
• glas lenses anti reflex coated
• uniform illumination
• small laser head
Product description:
expander laser, red, 658nm, 20mW, 3V DC, 20x120mm, class 3B
• Operating Voltage 3 V DC
• Laser Class 3B
• glas lenses anti reflex coated
• uniform illumination
• small laser head

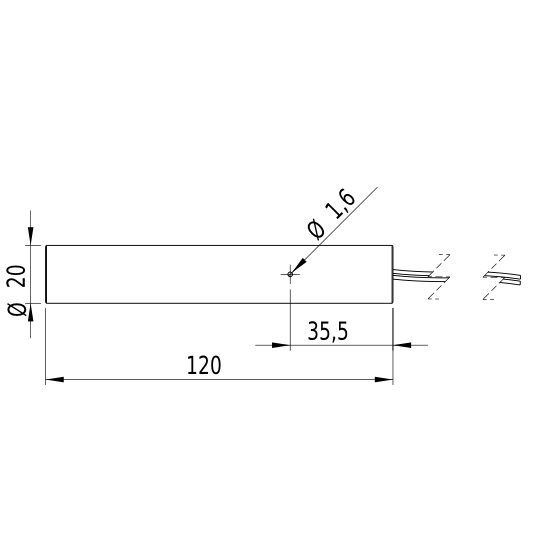

.png "E658-20-3(20x120)APT15 - Zeichnung")

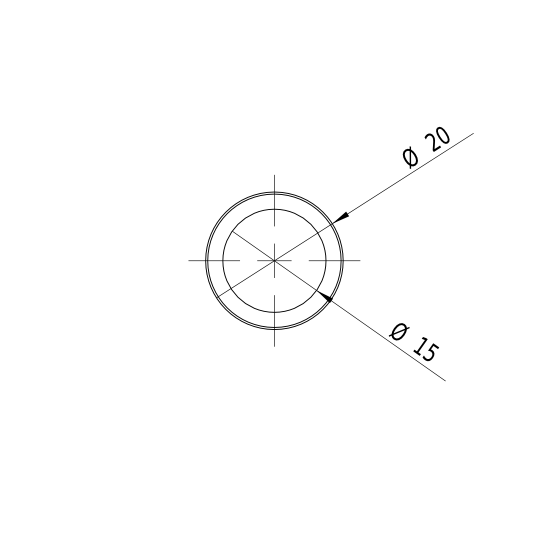

.png "E658-20-3(20x120)APT15 - Zeichnung Front")

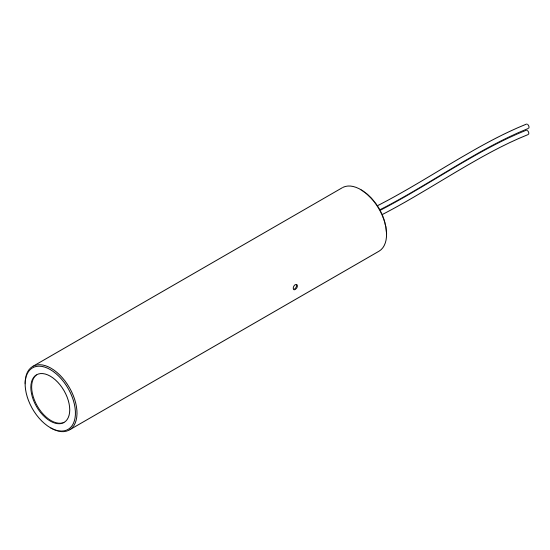

.png "E658-20-3(20x120)APT15 - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape expander Wavelength 658nm
(rot)Optical Power 20mW Laser Class 3B Divergence 0.3mrad Beam Diameter 15mm Size of Laserdot <17mm@10m Operating Distance 80m Optics Glass lens AR coated Laser technology Single Mode Diode Size Ø20mm 120mm Material aluminium Cable length 100mm Wire type 26AWG, 0,14mm² Focus fixed (10.0m) Output Aperture 15mm Potential of Housing insulated Lifetime >10000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 100 - 130, typ 120mA Housing Color black Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 84g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Stripping of wire 5mm - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 3V DC - Matching accessories
MULTI-MOUNT-20(45x75)
Order no.: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
