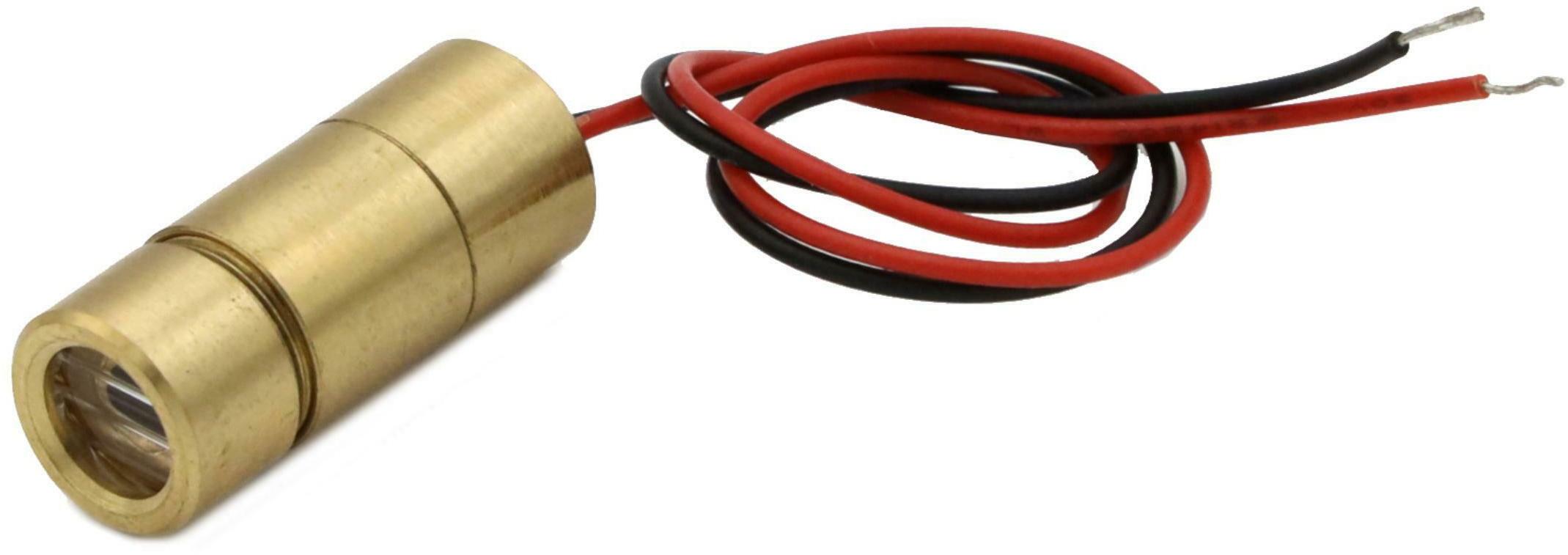

LH635-5-5(9x21)60-ADJ

Order number: 70134612

Product description:
Adjustabel Line lasermodule, red, 60°, 635nm, 5mW, 3-5V DC, 9x21mm, class 1

• Operating Voltage 3-5V DC
• Laser Class 1
• low cost

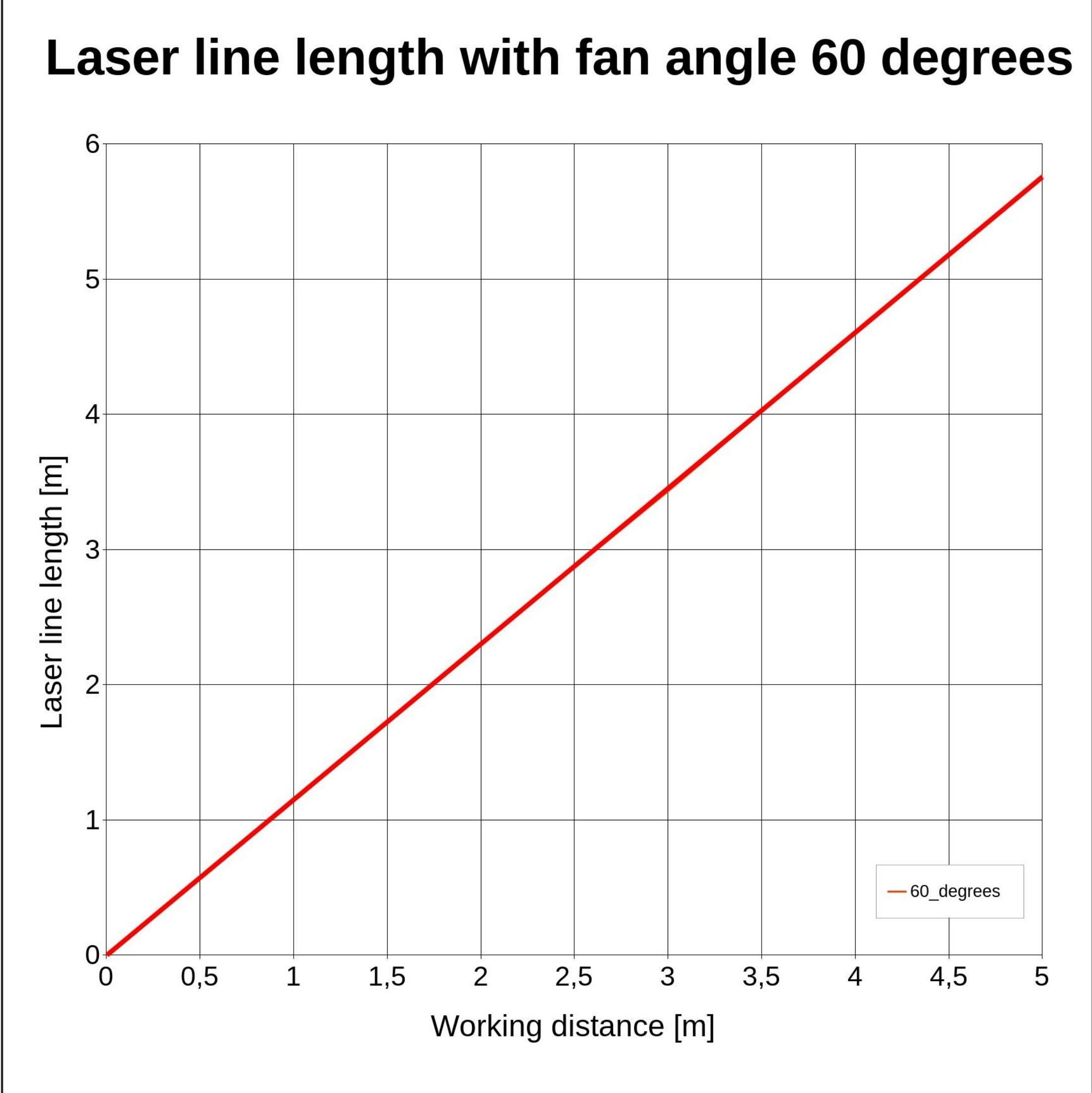

• Fan angle 60 °
• compact size

LH635-5-5(9x21)60-ADJ - Zeichnung isometrisch

39,41
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	635nm (rot)
Optical Power	5mW
Laser Class	1
Divergence	1mrad
Fan Angle	60°
Line Thickness	adjustable
Operating Distance	3m
Optics	acryl lense
Laser technology	Single Mode Diode
Size
Material	Bronze
Cable length	150mm
Wire type	Belden, Typ 1007, 26AWG
Focus	adjustable
Output Aperture	6mm
Potential of Housing	VDD(+)
Lifetime	>10000h
Operating Voltage	3 - 5V DC
Operating Current	15 - 60, typ 30mA
Operating Temperature	-10°C - 40°C
Storage Temperature	-40°C - 80°C
Weight	7.3g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red VCC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
