AMLG650-5-5(12X50)5DEG-PWL

Order number: 70183900

Product description:
Line laser, red, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Class 2, Focus 1m, Intensity adjustable (0-5V), Powell lens

• Operating Voltage 5 V DC
• Laser Class 2M
• adjustable focus
• high power

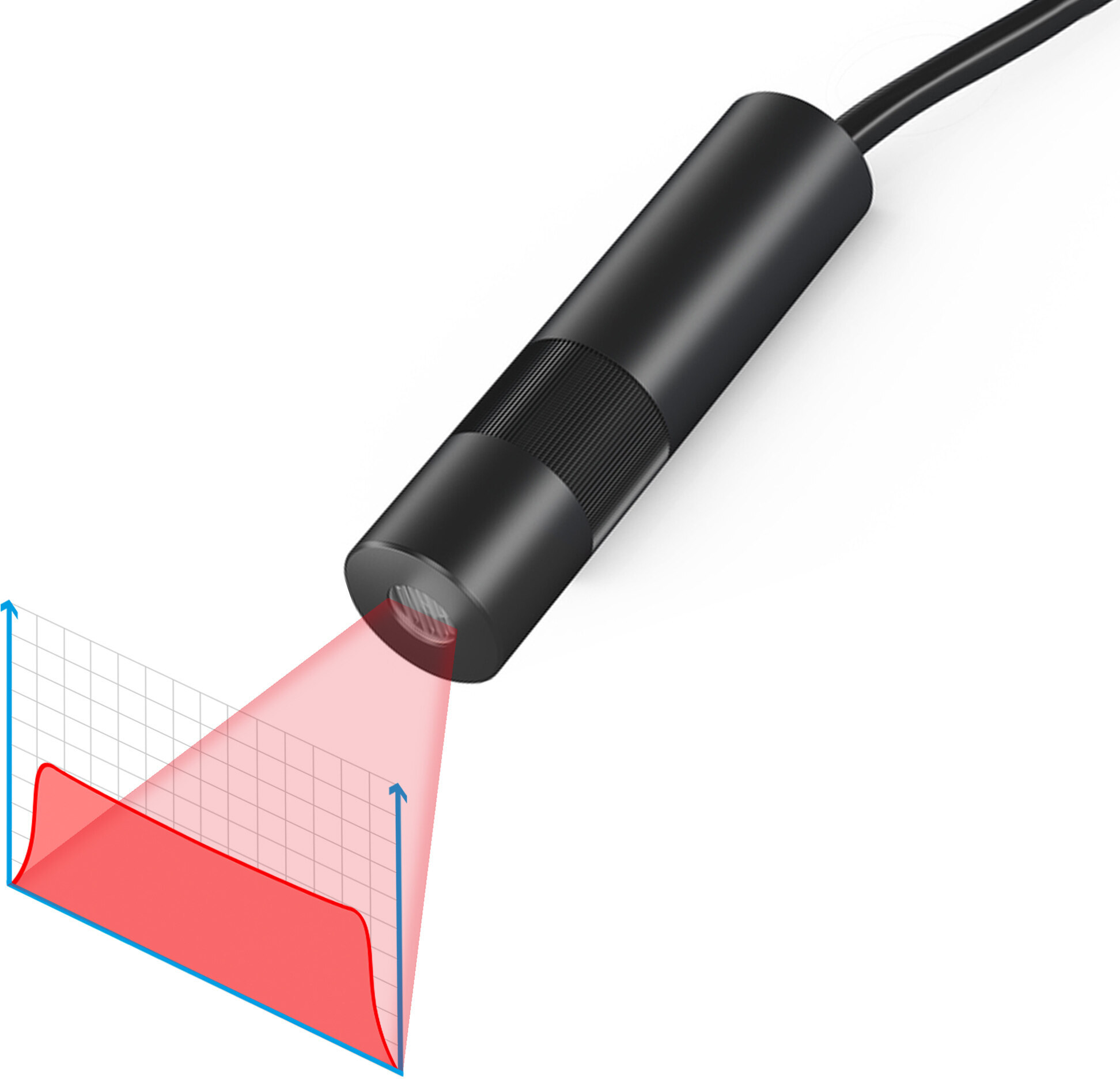

AMLG650-5-5(12X50)5DEG-PWL - Hauptbild
AMLG650-5-5(12X50)5DEG-PWL - Produktbild 1
AMLG650-5-5(12X50)5DEG-PWL - Rendergrafik
Warnlabel 2M
890,67
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power5mW
    Laser Class2M
    Divergence0.8mrad
    Fan Angle
    Line Thickness<1mm@1000mm
    OpticsPowell Lens
    Protection LensJa
    SizeØ12mm 50mm
    Materialaluminium
    Cable length200mm
    Wire type28AWG
    Focusfixed (1000mm)
    Output Aperture4mm
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current40 - 80, typ 60mA
    Housing Colorblack
    Operating Temperature-30°C - 70°C
    Storage Temperature-40°C - 85°C
    Weight70g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire5mm
  • Illustration and technical drawing
  • AMLG650-5-5(12X50)5DEG-PWL - Hauptbild
    AMLG650-5-5(12X50)5DEG-PWL - Produktbild 1
    AMLG650-5-5(12X50)5DEG-PWL - Rendergrafik
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
    Modulation:Cable color Modulate: yellowyellow
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    58.74 EUR
