DA635-1-3(11x60)

Order number: 70100211

Product description:
isolated Dot lasermodule, red, 635nm, 1mW, 3V DC, 11x60mm, class 2

• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• Laser Class 2
• fixed focus
• compact size

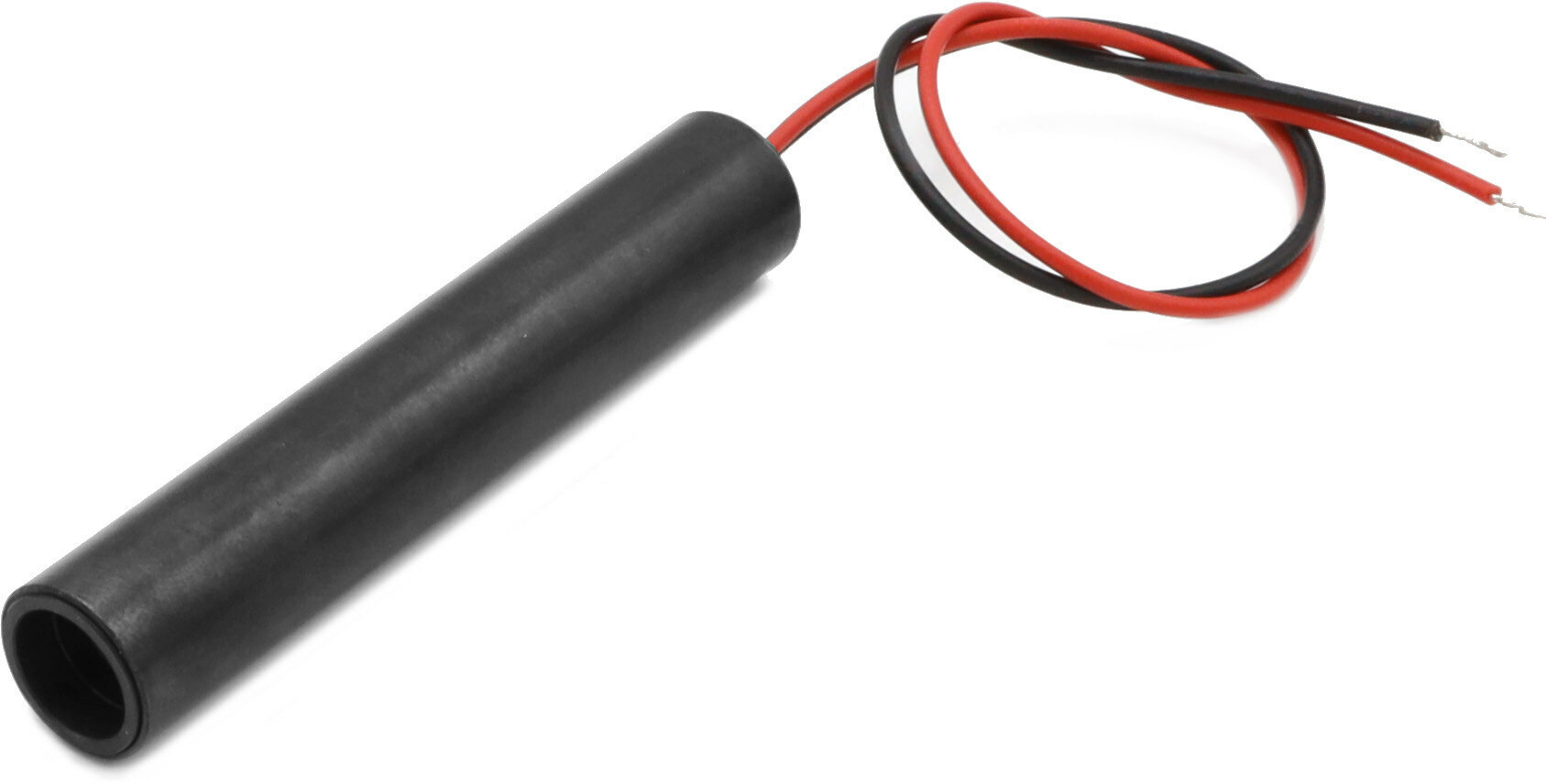

DA635-1-3(11x60) - Hauptbild
DA635-1-3(11x60) - Rendergrafik
DA635-1-3(11x60) - Zeichnung
DA635-1-3(11x60) - Zeichnung Front
DA635-1-3(11x60) - Zeichnung isometrisch
Warnlabel 2
68,82
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength635nm
    (rot)
    Optical Power1mW
    Laser Class2
    Divergence0.2mrad
    Beam Diameter8mm
    Size of Laserdot<9.5mm@40m
    Operating Distance100m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    MaterialBronze
    Cable length100mm
    Wire typeBelden, Typ 1007, 26AWG
    Focuscollimated
    Output Aperture8mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current20 - 50, typ 30mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight22g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire5mm
  • Illustration and technical drawing
  • DA635-1-3(11x60) - Hauptbild
    DA635-1-3(11x60) - Rendergrafik
    DA635-1-3(11x60) - Zeichnung
    DA635-1-3(11x60) - Zeichnung Front
    DA635-1-3(11x60) - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
