DD650-16-3(22x65)

Order number: 70102161

Product description:
isolated, dot lasermodule, red, 650nm, 16mW, 3V DC, 22x65mm, class 3B
DD650-16-3(22x65) - Hauptbild
DD650-16-3(22x65) - Rendergrafik
DD650-16-3(22x65) - Zeichnung

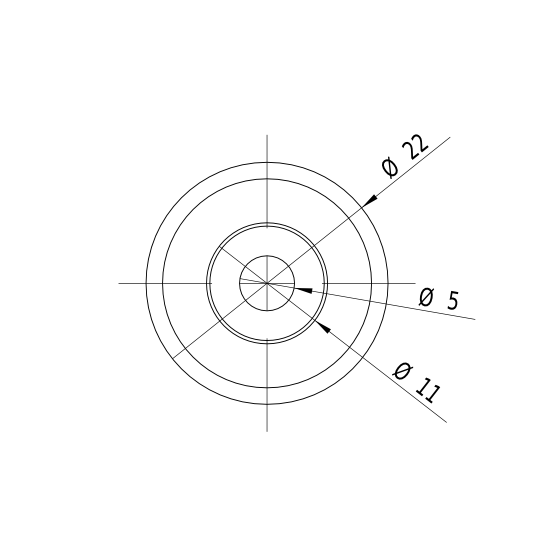

DD650-16-3(22x65) - Zeichnung Front

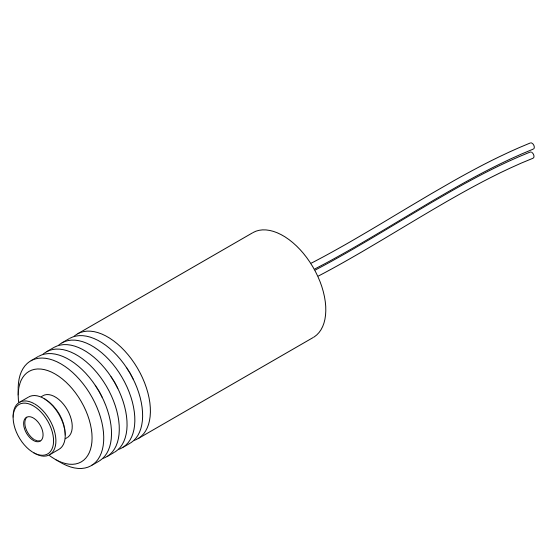

DD650-16-3(22x65) - Zeichnung isometrisch
Warnlabel 3B
159,58
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength650nm
    (rot)
    Optical Power16mW
    Laser Class3B
    Divergence0.5mrad
    Size of Laserdotadjustable
    Operating Distance150m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current40 - 100, typ 65mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight54g
    Stripping of wire5mm
  • Illustration and technical drawing
  • DD650-16-3(22x65) - Hauptbild
    DD650-16-3(22x65) - Rendergrafik
    DD650-16-3(22x65) - Zeichnung
    DD650-16-3(22x65) - Zeichnung Front
    DD650-16-3(22x65) - Zeichnung isometrisch
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
