LI650-4-3(8x26)30DEG-F100

Order number: 70110524

Product description:
isolated Line lasermodule, red, 30°, 650nm, 4mW, 3V DC, 8x26mm, class 1

• fixed focus
• low power consumption
• for medical devices
• uniform line thickness
• image processing

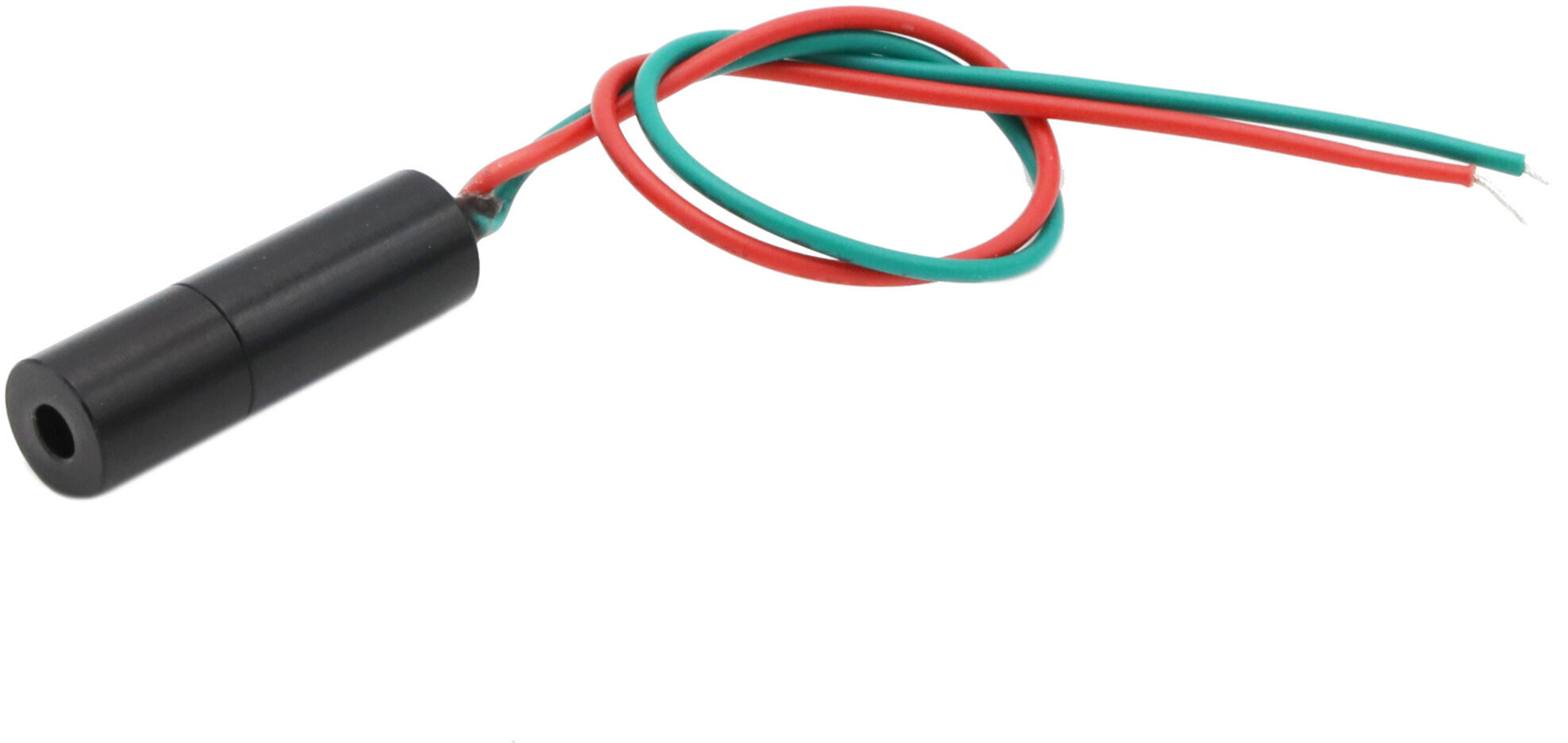

LI650-4-3(8x26)30DEG-F100 - Rendergrafik

LI650-4-3(8x26)30DEG-F100 - Zeichnung Front

LI650-4-3(8x26)30DEG-F100 - Zeichnung isometrisch

50,34
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	4mW
Laser Class	1
Divergence	1.5mrad
Fan Angle	30°
Line Thickness	<0.3mm@0.1m
Operating Distance	0.1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (100mm)
Output Aperture	3mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 50, typ 32mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	3.5g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: green GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
