LC520-15-24-F(16x65)-QCW
isolated, adjustable line lasermodule, direct green Laserdiode, 520nm, 90°, 15m…
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
Warranty | 1Jahre |
Beam Shape | Dot |
Wavelength | 650nm (rot) |
Optical Power | 1mW |
Laser Class | 2 |
Divergence | 1mrad |
Size of Laserdot | <4mm@10m |
Operating Distance | 10m |
Optics | Glass lens AR coated |
Laser technology | Single Mode Diode |

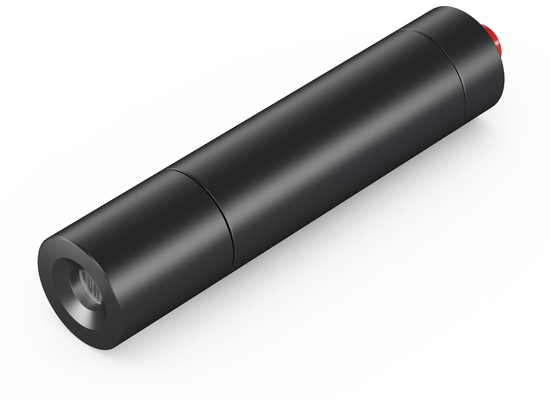

Size | Ø15mm 68mm |
Material | aluminium |
Focus | fixed (10.0m) |
Output Aperture | 6mm |
Potential of Housing | VDD(+) |
Lifetime | >3000h |
Operating Voltage | 3 - 4.5V DC |
Operating Current | 20mA |
Battery | LR44/AG13 alkaline battery, 1.5V |
Operating Temperature | -20°C - 50°C |
Storage Temperature | -40°C - 80°C |
Weight | 25g |
![]() | MULTI-MOUNT-15(45x75) Order no.: 70114102 Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm 61.26 EUR |
DOE205-532-10-3-F(16x65) Order no.: 70129243 Adjustable DOE Laser, green, 532nm, 10mW, 3V DC, Laser class 3R without DOE, 16x65mm, incl. DOE R 205 5° @650nm 361.26 EUR |
LH658-25-3(14x55)45DEG-F300 Order no.: 70147476 isolated Line lasermodule, red, 45°, 658nm, 25mW, 3V DC, 14x55mm, focus 300mm class 3R 285.63 EUR |
LE660-45-5(20x80)75DEG-PWL-M12 Order no.: 70148794 Line laser, 75°, red, 660nm, typ. 45mW, 5V DC, 20x80 mm, thermal shutdown @50°C, fixed focus (825mm), 130mW laser diode, M12 1,109.16 EUR |
DD520-5-3-F(16x65)-QCW-DOE Order no.: 70132564 Adjustable dot lasermodule, direct green Laserdiode, 520nm, 5mW, 3V DC, 16x65mm, class 3R, internal modulation, for 8mm diffractive optics 336.05 EUR |
DG650-7-3(12x34) Order no.: 70101881 isolated dot lasermodule, red, 650nm, 7mW, 3V DC, 12x34mm, class 3B 31.01 EUR |
MULTI-MOUNT-06(45x75) Order no.: 70115154 Mount for Lasermodul 6mm, Diameter 45mm, Height 75mm 61.26 EUR |
CB635-5-3(16x45) Order no.: 70107098 isolated cross lasermodule, red, 90°, 635nm, 5mW, 3V DC, 16x45mm, class 1 100.76 EUR |
DB635-1-3-FA(14x45)-F50-AP Order no.: 70109481 Isolated Dot lasermodule, red, 635nm, 1mW, 3V DC, 14x45mm, class 2 49.50 EUR |
