LD532-3-3(14x60)

Order number: 70101096

Product description:
isolated Line lasermodule, green, 90°, 532nm, 3mW, 3V DC, 14x60mm, class 1

• Operating Voltage 3 V DC
• uniform line thickness
• compact size
• Laser Class 1
• fixed focus
LD532-3-3(14x60) - Hauptbild
LD532-3-3(14x60) - Rendergrafik
LD532-3-3(14x60) - Zeichnung
LD532-3-3(14x60) - Zeichnung Front
LD532-3-3(14x60) - Zeichnung isometrisch
Warnlabel 1
176,39
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength532nm
    (grün)
    Optical Power3mW
    Laser Class1
    Divergence0.5mrad
    Fan Angle90°
    Line Thickness<1.5mm@3m
    Operating Distance3m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologySolid State (YVO4+KTP)
    Stability+/- 20% @ 15-30°C
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusfixed (3000mm)
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current70 - 350, typ 190mA
    Housing Colorblack
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight31g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire5mm
    • Illustration and technical drawing
    • LD532-3-3(14x60) - Hauptbild
      LD532-3-3(14x60) - Rendergrafik

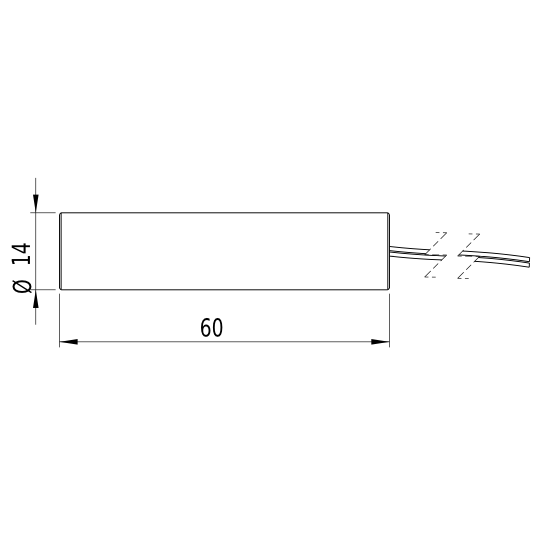

      LD532-3-3(14x60) - Zeichnung
      LD532-3-3(14x60) - Zeichnung Front

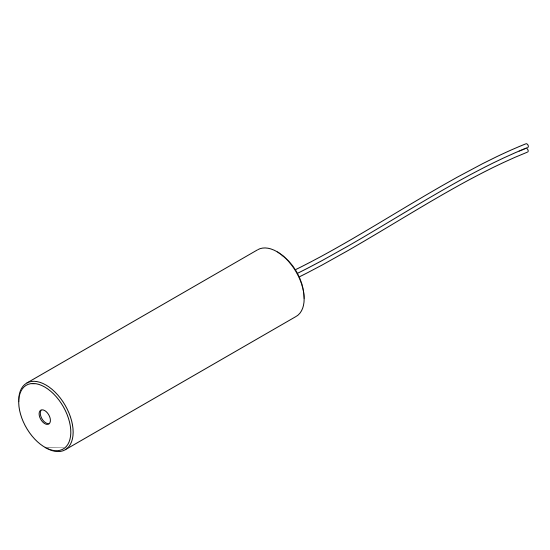

      LD532-3-3(14x60) - Zeichnung isometrisch
      Warnlabel 1
      Connector pin assignment
      Ground:Cable color Ground: blueblueGND
      Positive:Cable color Positive: redred3V DC
    • Matching accessories
    • AM1-1203SZAM1-1203SZ
      Order no.: 70114928
      DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
      16.72 EUR
