DA650-2-3(16x58)

Order number: 70100716

Product description:
isolated Dot lasermodule, red, 650nm, 2mW, 3V DC, 16x58mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• fixed focus
• glas lenses anti reflex coated
• compact size
DA650-2-3(16x58) - Hauptbild
DA650-2-3(16x58) - Rendergrafik

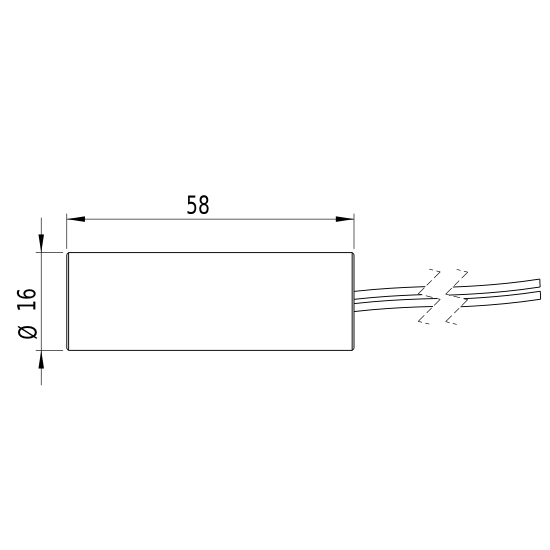

DA650-2-3(16x58) - Zeichnung

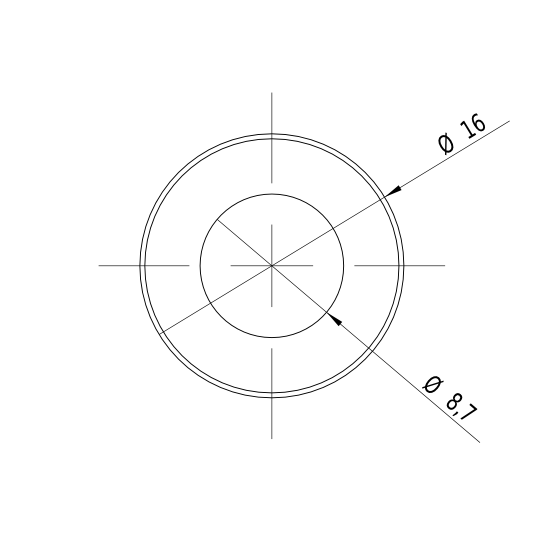

DA650-2-3(16x58) - Zeichnung Front
DA650-2-3(16x58) - Zeichnung isometrisch
Warnlabel 3R
69,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength650nm
    (rot)
    Optical Power2mW
    Laser Class3R
    Divergence0.2mrad
    Beam Diameter9mm
    Size of Laserdot<9.5mm@40m
    Operating Distance150m
    OpticsGlass lens AR coated
    Laser technologydiode
    Size
    MaterialBronze
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focuscollimated
    Output Aperture9mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current15 - 45, typ 30mA
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight58g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    • Illustration and technical drawing
    • DA650-2-3(16x58) - Hauptbild
      DA650-2-3(16x58) - Rendergrafik
      DA650-2-3(16x58) - Zeichnung
      DA650-2-3(16x58) - Zeichnung Front
      DA650-2-3(16x58) - Zeichnung isometrisch
      Warnlabel 3R
      Connector pin assignment
      Ground:Cable color Ground: blackblackGND
      Positive:Cable color Positive: redred3V DC
    • Matching accessories
    • AM1-1203SZAM1-1203SZ
      Order no.: 70114928
      DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
      16.72 EUR
