MOUNT-BASE-PLATE-01
Base plate with mounting mandrel Ø22mm, aluminum
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |

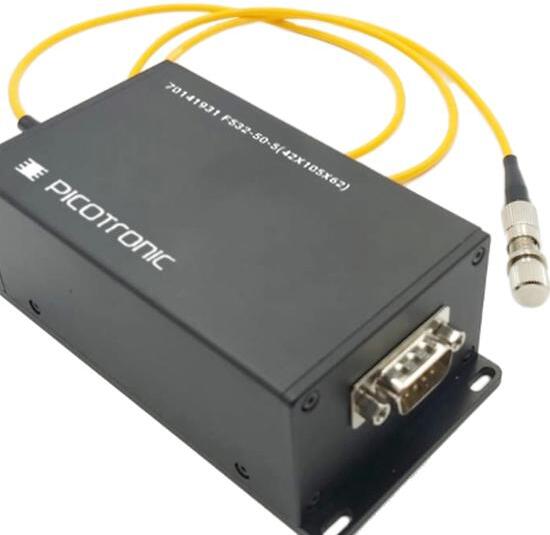

| Beam Shape | Fiber |
| Wavelength | 532nm (grün) |
| Optical Power | 50mW |
| Laser Class | 3R |
| Optics | Glass lens AR coated |
| Beam Mode | TEM00 |
| Laser technology | Single Mode Diode |
| Size | 105 x 42 x 62mm |
| Material | aluminium |
| Potential of Housing | insulated |
| Lifetime | >5000h |
| Operating Voltage | 4.5 - 5, typ 5V DC |
| Operating Current | 500 - 1000, typ 750mA |
| Housing Color | black |
| Connector | 9 Pin D-Sub Male Connector |
| Operating Temperature | -10°C - 50°C |
| Storage Temperature | -40°C - 85°C |
| Warm up time | <15min |
| Weight | 7g |
| Fiber core diameter | Ø200µm |
| Fiber included | Ja |
![]() | LFNT-5 Order no.: 70114683 Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. 22.61 EUR |
| CB635-2-5(16x45)15-F500 Order no.: 70138702 isolated cross lasermodule, red, 15°, 635nm, 2mW, 5V DC, 16x45mm, class 1M 88.15 EUR |
| LC650-16-3-F(14x55) Order no.: 70106336 focusable isolated Line lasermodule, red, 90°, 650nm, 16mW, 3V DC, 14x55mm, class 2 176.39 EUR |
| DOE-DE-R214 Order no.: 70124095 Diffractive Optical Element DOE CROSS - 2 - PC - 8x2.1mm 2° @645nm 49.50 EUR |
| DOE250-635-5-6(10x24)-ADJ Order no.: 70134148 DOE Laser Module 635nm, red, 5mW, DOE 5 LINES - PC - 8x1,2mm 30.8° @660nm, 5V DC, Ø10x24mm, Laser Class 1M with DOE-DE-R250 104.96 EUR |
| LB660-50-5(19X95)110DEG-PWL Order no.: 70145083 Line laser, 110°, red, 660nm, 50mW, 5V DC, 19x95 mm, thermal shutdown @50°C, adjustable focus, 130mW laser diode 848.66 EUR |
| DOE255-532-5-3(16x90)-NT Order no.: 70111132 DOE Laser Module 532nm, green, 5mW, DOE 65Lines (Square Area, Central Line Thicker) PC 8x1.2mm 25.8° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R255 369.66 EUR |
| DOE241-532-5-3(16x90)-NT Order no.: 70110999 DOE Laser Module 532nm, green, 5mW, DOE 21x21 DOTS - PC - 8x1,2mm 6.7° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R241 369.66 EUR |
| LC635-5-3-F(16x65)60DEG-C1500 Order no.: 70121971 focusable isolated Line lasermodule, red, 60°, 635nm, 5mW, 3V DC, 16x65mm, class 1 193.19 EUR |
