LFL635-5-4.5(9x20)90

Order number: 70138771

Product description:
Line lasermodule, red, 90°, 635nm, 5mW, 3-4.5V DC, 9x20mm, class 1
LFL635-5-4.5(9x20)90 - Produktbild 1
LFL635-5-4.5(9x20)90 - Hauptbild
LFL635-5-4.5(9x20)90 - Rendergrafik
LFL635-5-4.5(9x20)90 - Zeichnung
LFL635-5-4.5(9x20)90 - Zeichnung Front
LFL635-5-4.5(9x20)90 - Zeichnung isometrisch
Warnlabel 1
10,84
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 635nm
    (rot)
    Optical Power 5mW
    Laser Class 1
    Divergence 1mrad

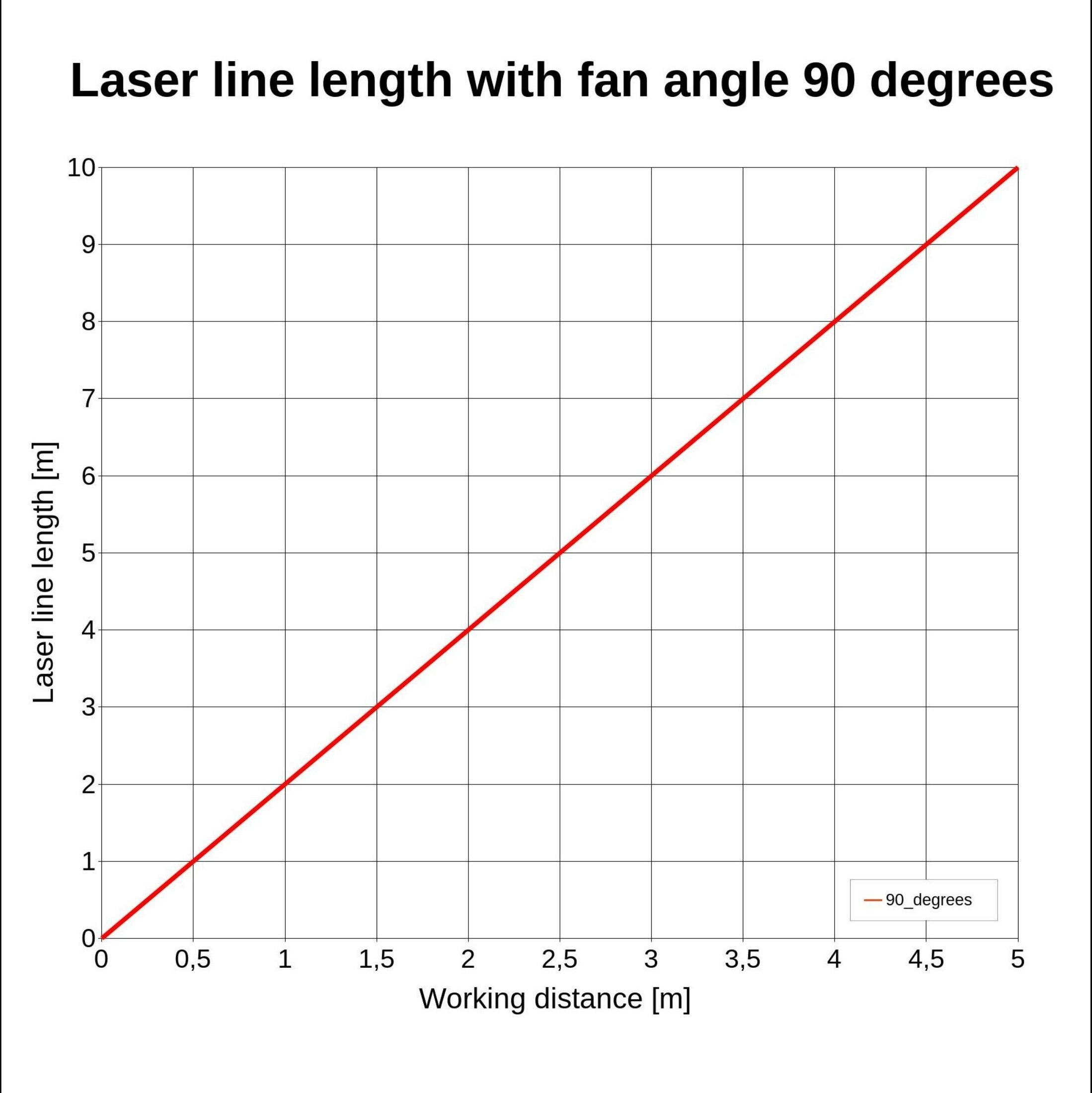

    Fan Angle 90°
    Line Thickness <1.2mm@1m
    Operating Distance 2m
    Optics acryl lense
    Laser technology diode
    Size Ø9mm 20mm
    Material Bronze
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (1000mm)
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >3000h
    Operating Voltage 3 - 4.5, typ 4.5V DC
    Operating Current 20 - 60, typ 40mA
    Operating Temperature -20°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 6g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • LFL635-5-4.5(9x20)90 - Produktbild 1
    LFL635-5-4.5(9x20)90 - Hauptbild
    LFL635-5-4.5(9x20)90 - Rendergrafik
    LFL635-5-4.5(9x20)90 - Zeichnung
    LFL635-5-4.5(9x20)90 - Zeichnung Front
    LFL635-5-4.5(9x20)90 - Zeichnung isometrisch
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred4.5V DC
  • Matching accessories
  • MULTI-MOUNT-09(45x75)MULTI-MOUNT-09(45x75)
    Order no.: 70114065
    Mount for Lasermodul 9mm, Diameter 45mm, Height 75mm
