RP-LE520-30-24(20X90)110

Order number: 70183078

Product description:
Line laser module, green, 110°, 520nm, 30mW, 24V DC, 20x90mm, Class 2M
RP-LE520-30-24(20X90)110 - Produktbild 1
RP-LE520-30-24(20X90)110 - Hauptbild
RP-LE520-30-24(20X90)110 - Produktbild 2
RP-LE520-30-24(20X90)110 - Produktbild 3
Warnlabel 2M
255,00
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 30mW
    Laser Class 2M
    Divergence 0.6mrad

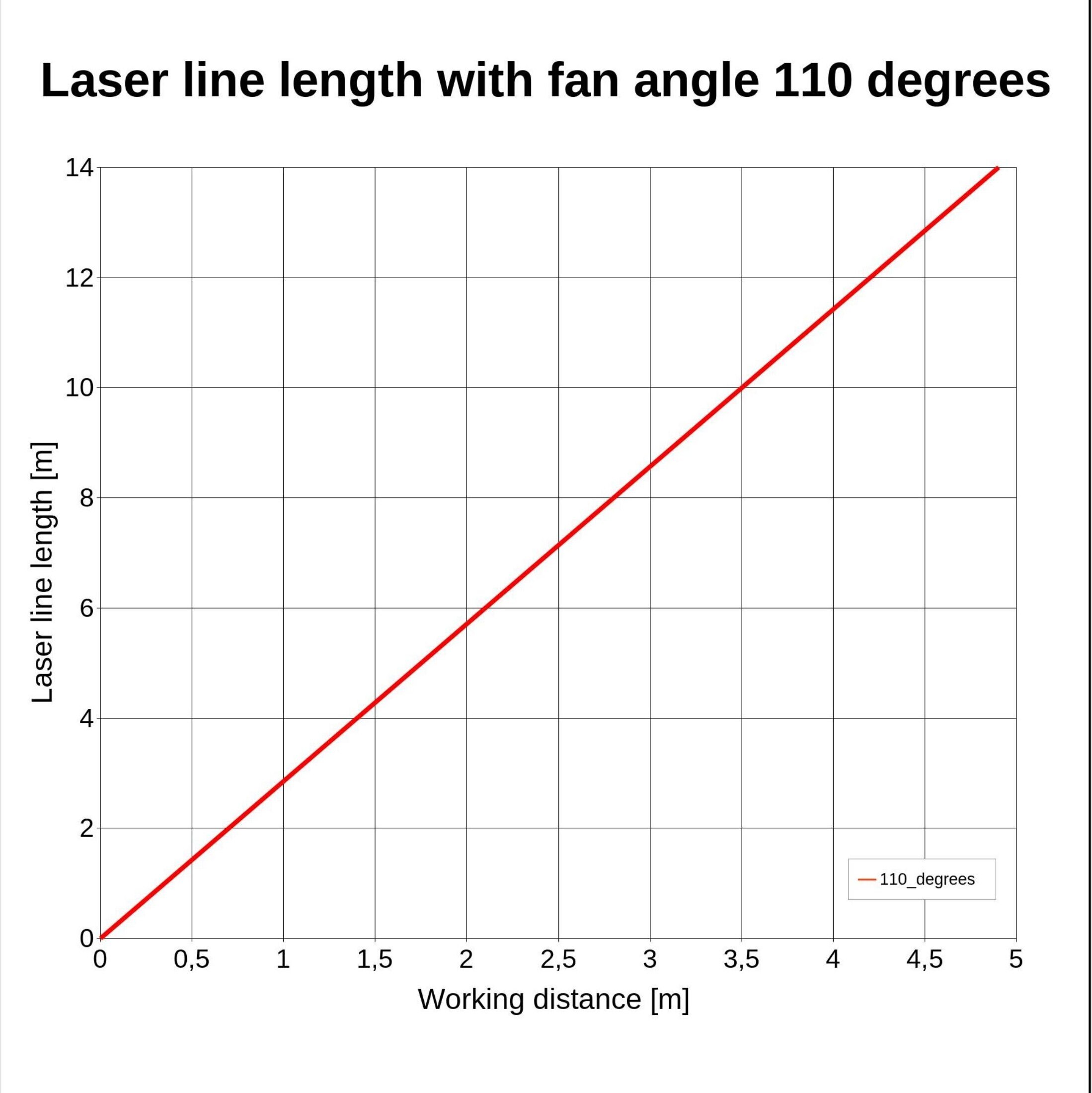

    Fan Angle 110°
    Line Thickness <2.0mm@3m
    Operating Distance 5m
    Optics Glass lens AR coated
    Size Ø20mm 90mm
    Material aluminium
    Focus adjustable
    Output Aperture 5.5mm
    Potential of Housing VDD(+)
    Lifetime >8000h
    Operating Voltage 24V DC
    Operating Current 70 - 130, typ 100mA
    Housing Color black
    Connector CON-M12
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 52g
    Power Supply Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector
  • Illustration and technical drawing

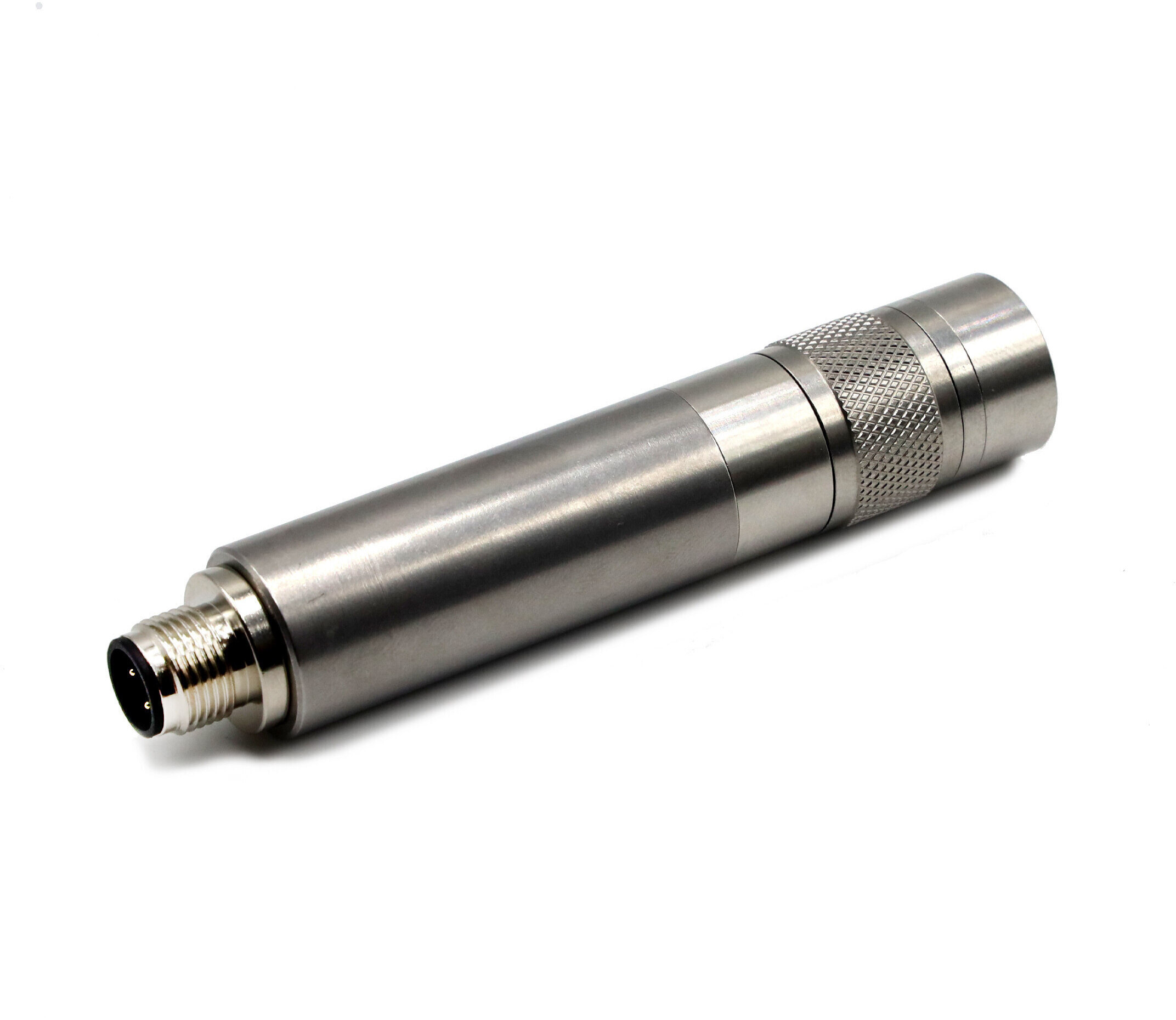

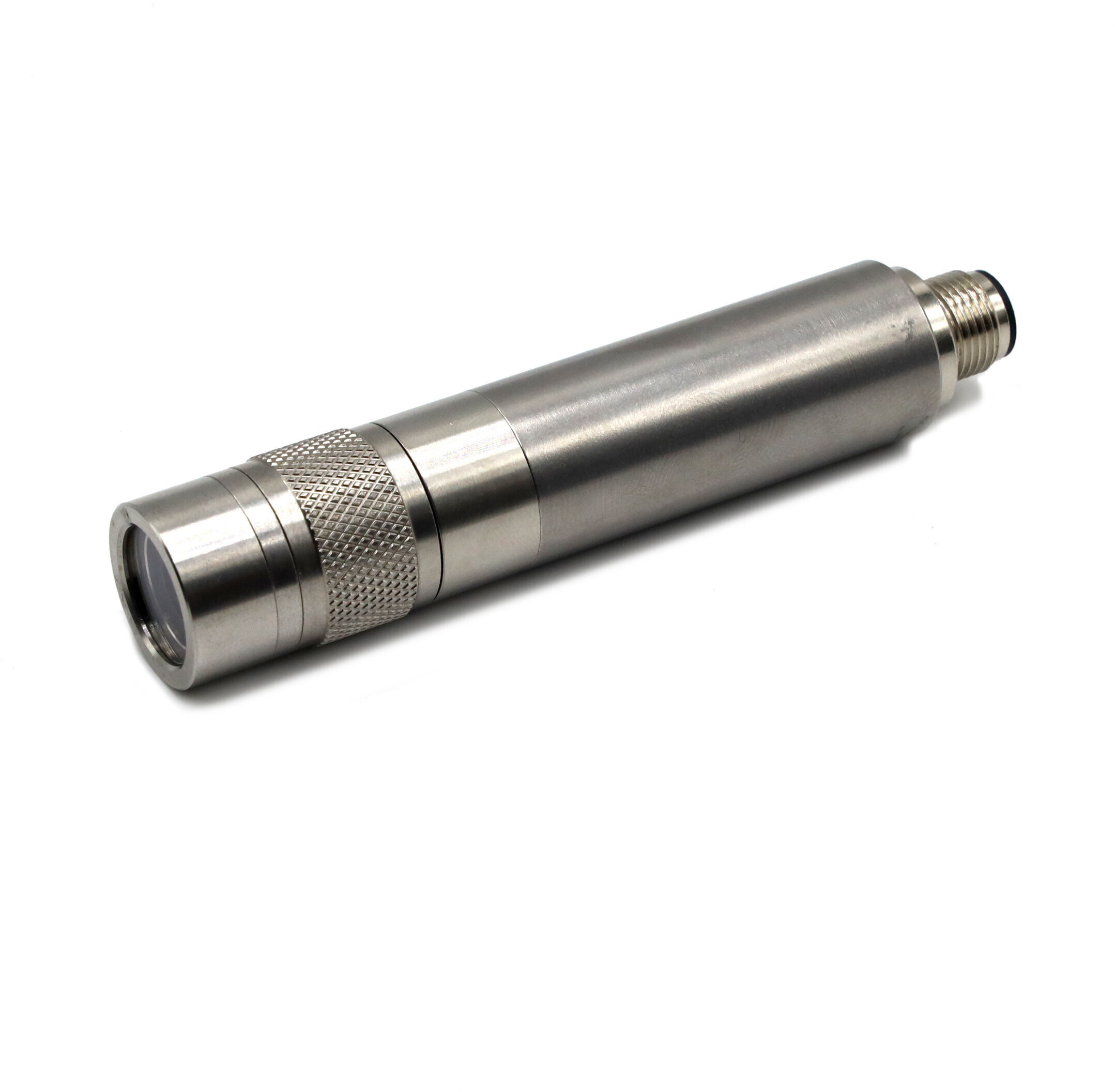

  • RP-LE520-30-24(20X90)110 - Produktbild 1
    RP-LE520-30-24(20X90)110 - Hauptbild
    RP-LE520-30-24(20X90)110 - Produktbild 2
    RP-LE520-30-24(20X90)110 - Produktbild 3
    Warnlabel 2M
  • Matching accessories
  • MULTI-MOUNT-20(45x75)MULTI-MOUNT-20(45x75)
    Order no.: 70112511
    Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
    61.26 EUR
