DOE280-638-60-3-F(20X100)

Order number: 70181470

Product description:
Adjustable High Power DOE Laser, rot, 638nm, 60mW, 3V DC, Klasse 3R, incl. DOE Cross - PC - 8x1,2mm 60° @635nm

• DOE Laser
• good visibility: 638nm
• Laser Class depends on DOE

DOE280-638-60-3-F(20X100) - DOE-Vermaßungsskizze

554,54
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	DOE
Wavelength	638nm (rot)
Optical Power	60mW
Laser Class	3R
Divergence	0.5mrad
Operating Distance	1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size	Ø20mm 100mm
Material	aluminium
Cable length	200mm
Wire type	18AWG, black, 3,6mm
Focus	adjustable
Output Aperture	6mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	80 - 180, typ 120mA
Housing Color	black
Connector	2.5 mm DC socket (GND pole inner)
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	50g
Power Supply	Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative

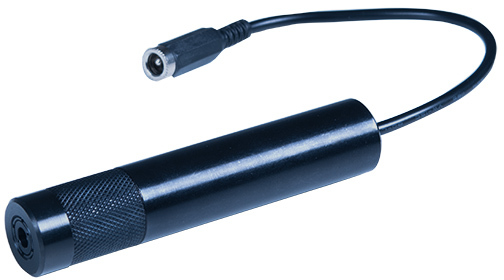

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: white 3V DC
