LE660-45-5(19x80)75DEG-PWL-M12

Order number: 70151152

Product description:
Line laser, 75°, red, 660nm, typ. 45mW, 5V DC, 19x80 mm, thermal shutdown @50°C, fixed focus (825mm), 130mW laser diode, M12

• Operating Voltage5 V DC
• Isolated housing
• Laser Class 3B
• small laser head
• Protection lens

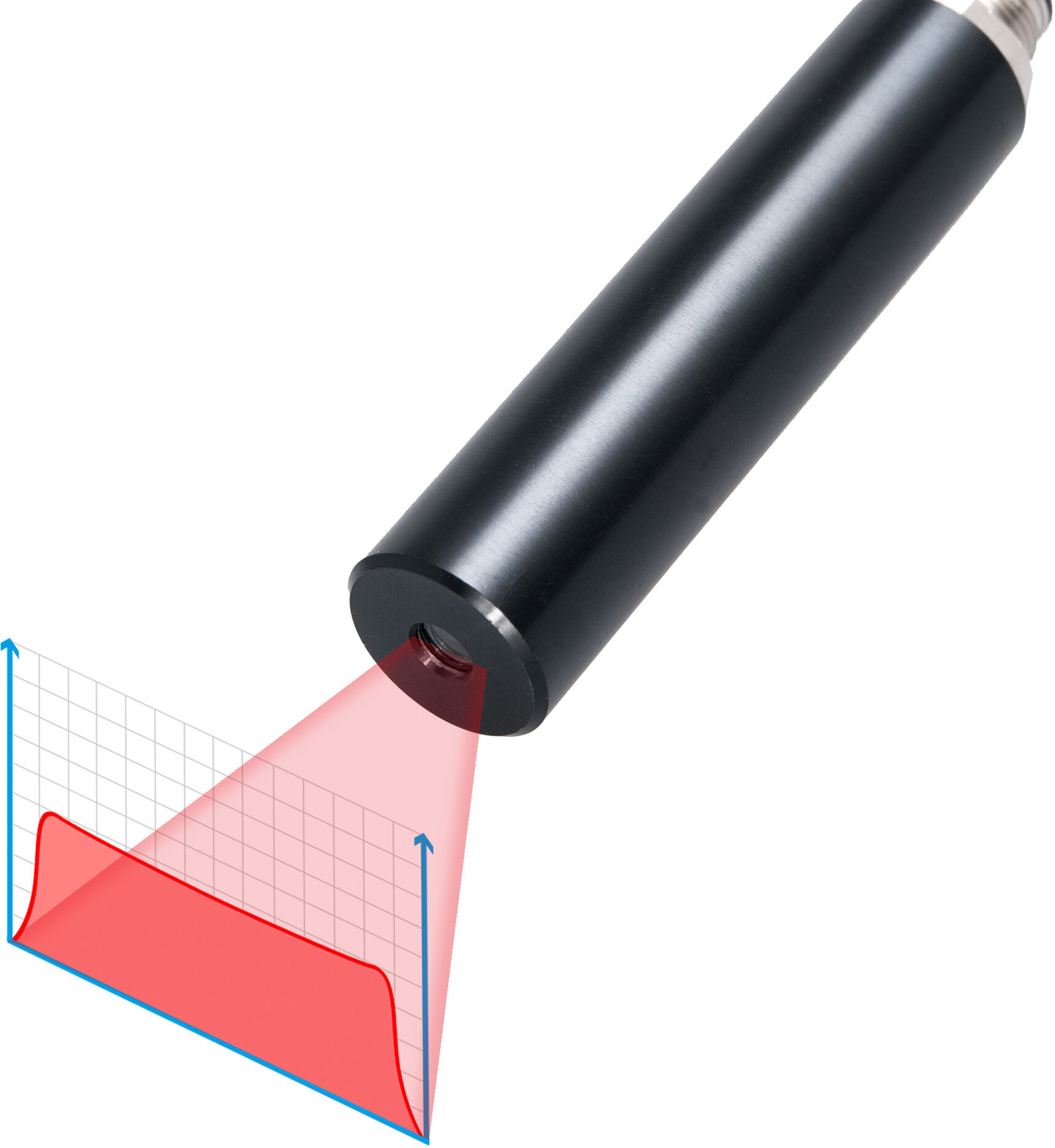

LE660-45-5(19x80)75DEG-PWL-M12 - Produktbild 1

1.134,37
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	660nm (rot)
Optical Power	45mW
Laser Class	3B
Divergence	0.6mrad
Fan Angle	75°
Line Thickness	<1.5mm@0.825m
Operating Distance	0.825m
Optics	Powell Lens
Laser technology	Single Mode Diode
Axial Divergence	±0.2°
Size
Material	aluminium
Focus	fixed (825mm)
Output Aperture	5.5mm
Potential of Housing	insulated
Lifetime	>8000h
Operating Voltage	5V DC
Operating Current	75 - 175, typ 100mA
Housing Color	black
Connector	CON-M12
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	52g

Illustration and technical drawing
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
