MLC650-50-24(19x88)45DEG-ADJ-PWL

Order number: 70147940

Product description:
adjustable line laser, red, 45°, 650nm, 50mW, 5V DC, 19x88mm, class 3B, constant energy distribution, Powell Linse, TTL 0-5V, compatible with Osela® etc., max. frequency 50kHz

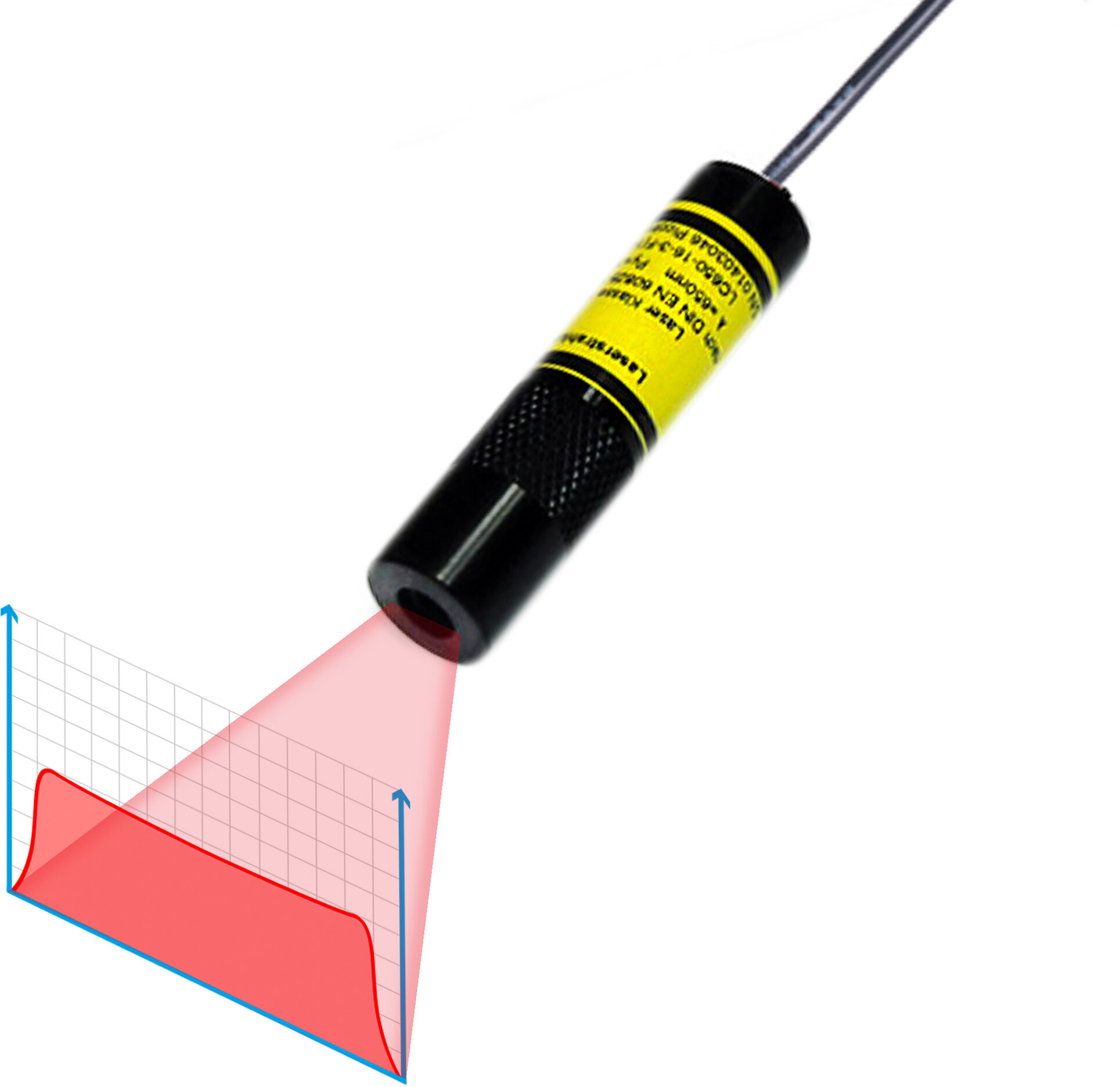

MLC650-50-24(19x88)45DEG-ADJ-PWL - Hauptbild

MLC650-50-24(19x88)45DEG-ADJ-PWL - Produktbild 2

MLC650-50-24(19x88)45DEG-ADJ-PWL - Rendergrafik

579,75
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	50mW
Laser Class	3B
Divergence	0.3mrad
Fan Angle	45°
Line Thickness	adjustable
Optics	Powell Lens
Laser technology	Single Mode Diode
Protection Lens	Ja
Axial Divergence	±0.5°
Size	Ø19mm 88mm
Material	aluminium
Cable length	100mm
Wire type	26AWG, UL, isolated
Focus	adjustable
Output Aperture	6.8mm
Potential of Housing	insulated
Max. Mod. Frequency	50kHz
Lifetime	>10000h
Operating Voltage	23.3 - 24.6, typ 24V DC
Operating Current	50 - 200, typ 100mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	70g
Power Supply	Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
Stripping of wire	5mm
Stripping of cable cover	50mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 24V DC
Modulation: yellow 50kHz
Matching accessories
MULTI-MOUNT-19(45x75)
Order no.: 70115192
Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
66.30 EUR
Downloads
Data sheet Fax order form
