LB520-50-24(19x88)60DEG-PWL-TTL

Order number: 70150216

Product description:

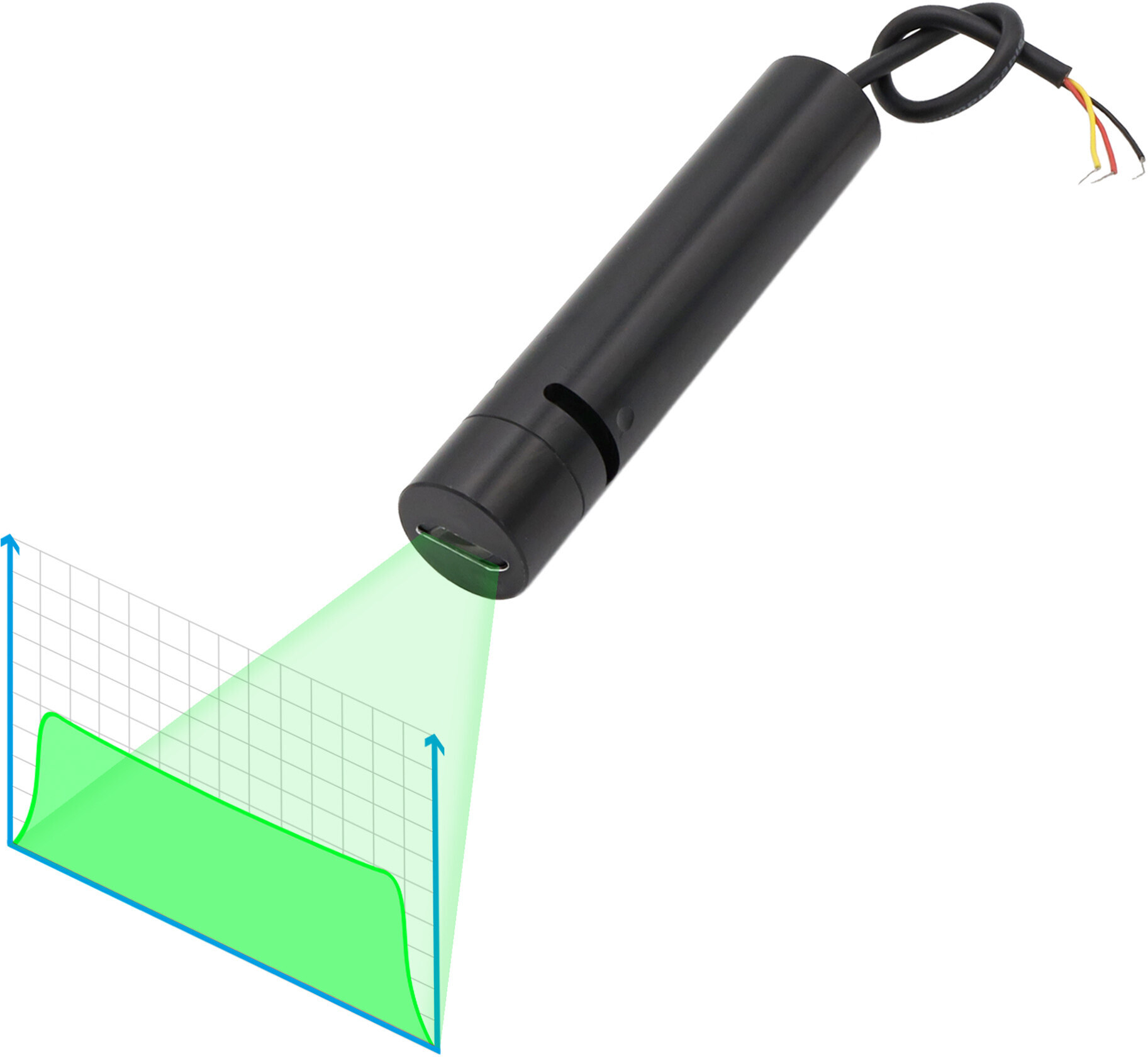

adjustable line laser, green, 60°, 520nm, 50mW, 5V DC, 19x88mm, class 3B, constant energy distribution, Powell Linse, TTL 0-5V, compatible with Osela® etc.

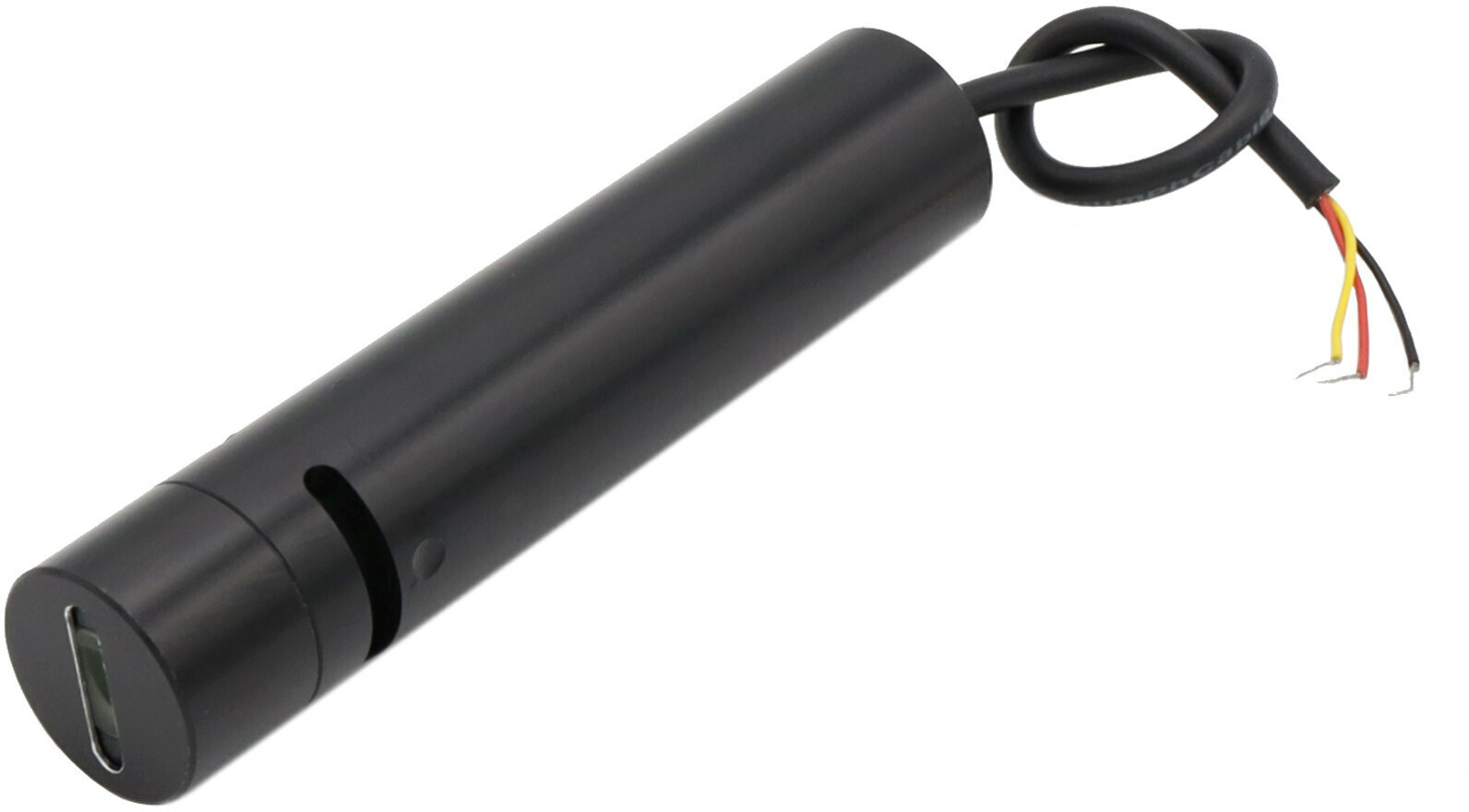

LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 1
LB520-50-24(19x88)60DEG-PWL-TTL - Hauptbild
LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 2
LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 3
Warnlabel 3B
1.050,34
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 50mW
    Laser Class 3B
    Divergence 0.3mrad

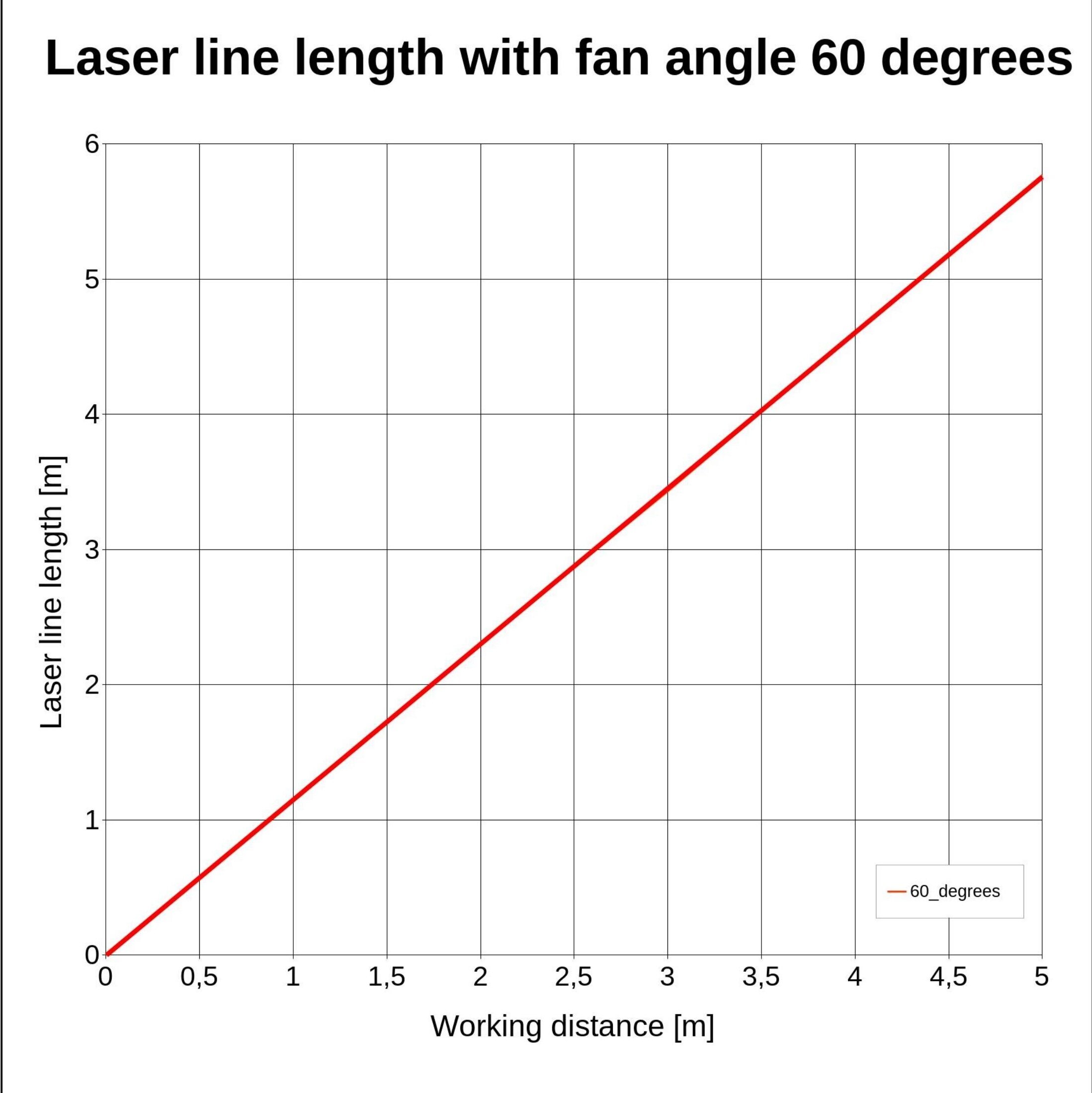

    Fan Angle 60°
    Line Thickness adjustable
    Operating Distance 0.5m
    Optics Powell Lens
    Laser technology Single Mode Diode
    Opt. Power Stability at const. Temp. <3%
    Protection Lens Ja
    Axial Divergence ±0.2°
    Size Ø19mm 88mm
    Material aluminium
    Cable length 500mm
    Wire type Belden 9533
    Focus adjustable
    Output Aperture 6.8mm
    Potential of Housing insulated
    Max. Mod. Frequency 10kHz
    Lifetime >10000h
    Operating Voltage 12 - 24, typ 24V DC
    Operating Current 50 - 200, typ 100mA
    Housing Color black
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 20g
    Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.

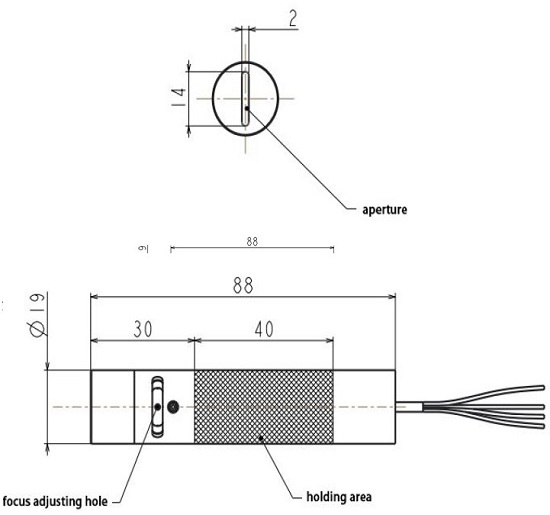

  • Illustration and technical drawing
  • LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 1
    LB520-50-24(19x88)60DEG-PWL-TTL - Hauptbild
    LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 2
    LB520-50-24(19x88)60DEG-PWL-TTL - Produktbild 3
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred24V DC
    Modulation:Cable color Modulate: yellowyellow10kHz
  • Matching accessories
  • MULTI-MOUNT-19(45x75)MULTI-MOUNT-19(45x75)
    Order no.: 70115192
    Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
    66.30 EUR
