DOE-QD635-5-6(10x22)-ADJ

Order number: 70108569

Product description:
focusable DOE lasermodule, red, 635nm, 5mW, 3-12V DC, 10x22mm, class 3R

• DOE optimized
• Laserclass depends on DOE
• compact size
• wide operating voltage
• low cost

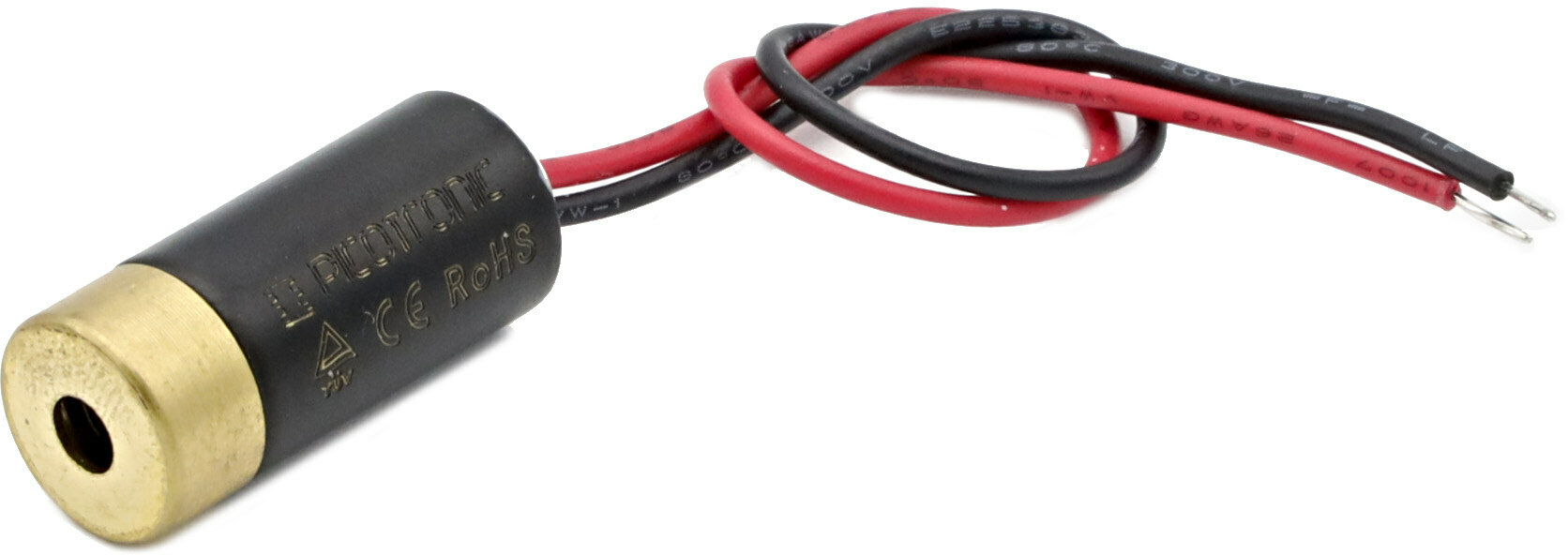

DOE-QD635-5-6(10x22)-ADJ - Hauptbild
DOE-QD635-5-6(10x22)-ADJ - Zeichnung
DOE-QD635-5-6(10x22)-ADJ - Zeichnung Front
DOE-QD635-5-6(10x22)-ADJ - Zeichnung isometrisch
Warnlabel 3R
31,85
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 635nm
    (rot)
    Optical Power 3.5mW
    Laser Class 3R
    Divergence 1mrad
    Size of Laserdot adjustable
    Operating Distance 10m
    Optics acryl lense
    Laser technology diode
    Size Ø10mm 22mm
    Material Bronze
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus adjustable
    Output Aperture 3mm
    Potential of Housing VDD(+)
    Lifetime >3000h
    Operating Voltage 3 - 6, typ 6V DC
    Operating Current 45mA
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 8.5g
  • Illustration and technical drawing
  • DOE-QD635-5-6(10x22)-ADJ - Hauptbild
    DOE-QD635-5-6(10x22)-ADJ - Zeichnung
    DOE-QD635-5-6(10x22)-ADJ - Zeichnung Front
    DOE-QD635-5-6(10x22)-ADJ - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred6V DC
