MF520-20-5(14x50)-USB-FIBER1000

Order number: 70146004

Product description:
Fiber lasermodule, green, 520nm, 20mW, 5V DC, 14x50mm, class 3R, Light diffusing Fiber, multi-mode, Fiberlength 1m, USB Type A-Connector, PWM modulated

• Faserlaser
• PWM modulierbar
• USB Stecker
• FC Anschluss
• Diffuse FaserProduct MF520-20-5(14x50)-USB-FIBER1000 available on shop_picotronicBuy in Picotronic Shop
https://media.picotronic.de/products/rendering/lightbox/FC_Drawing.jpg
https://media.picotronic.de/products/ds_picture/lightbox/Pico_Fiber_Anwendung.jpg
https://media.picotronic.de/products/ds_picture/lightbox/MF520.jpg
https://media.picotronic.de/products/ds_picture/lightbox/Pico_Fiber_AnwendungII.jpg
https://media.picotronic.de/products/ds_picture/lightbox/Pico_Fiber_AnwendungIII.jpg
/picopage/images/warnlabel/big/3R.png
197,09
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Fiber
    Wavelength 520nm
    (grün)
    Optical Power 20mW
    Laser Class 3R
    Operating Distance 1m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø14mm 50mm
    Material Aluminium
    Cable length 500mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 4.5 - 5, typ 5V DC
    Operating Current 30 - 100, typ 50mA
    Housing Color silver
    Connector CON-USB-A
    Operating Temperature -10°C - 50°C
    Storage Temperature -20°C - 85°C
    Weight 7g
    customs tarif number 90132000000
    Fiber core diameter Ø170µm
    Fiber included Ja

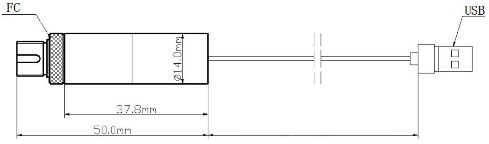

  • Illustration and technical drawing
  • Matching accessories
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Order no.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    51.99 EUR
    BALLHEAD-MOUNT-14(25x72)BALLHEAD-MOUNT-14(25x72)
    Order no.: 70117882
    Bracket for lasermodules D=14mm, 1/4'' UNC thread in base plate for mounting
    51.99 EUR
    LFNT-5LFNT-5
    Order no.: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    17.61 EUR
    LABEL-DIN-CLASS3R-DELABEL-DIN-CLASS3R-DE
    Order no.: 70114195
    Safety Label german DIN EN 60825, Class 3R, 38x23mm, yellow, PET
    0.48 EUR
    LABEL-DIN-CLASS3R-ENLABEL-DIN-CLASS3R-EN
    Order no.: 70119602
    Safety Label english DIN EN 60825, Class 3R, 38x23mm, yellow, PET
    0.48 EUR
