MLE660-50-5(16x50)60-PWL-F390-IC

Order number: 70142235

Product description:
line laser, red, 60°, 660nm, 50mW, 5V DC, 16x50mm, class 3R, uniform line distribution, Powell lens, Focus 390mm, Output power control: 0-5V, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing

MLE660-50-5(16x50)60-PWL-F390-IC - Hauptbild

MLE660-50-5(16x50)60-PWL-F390-IC - Produktbild 2

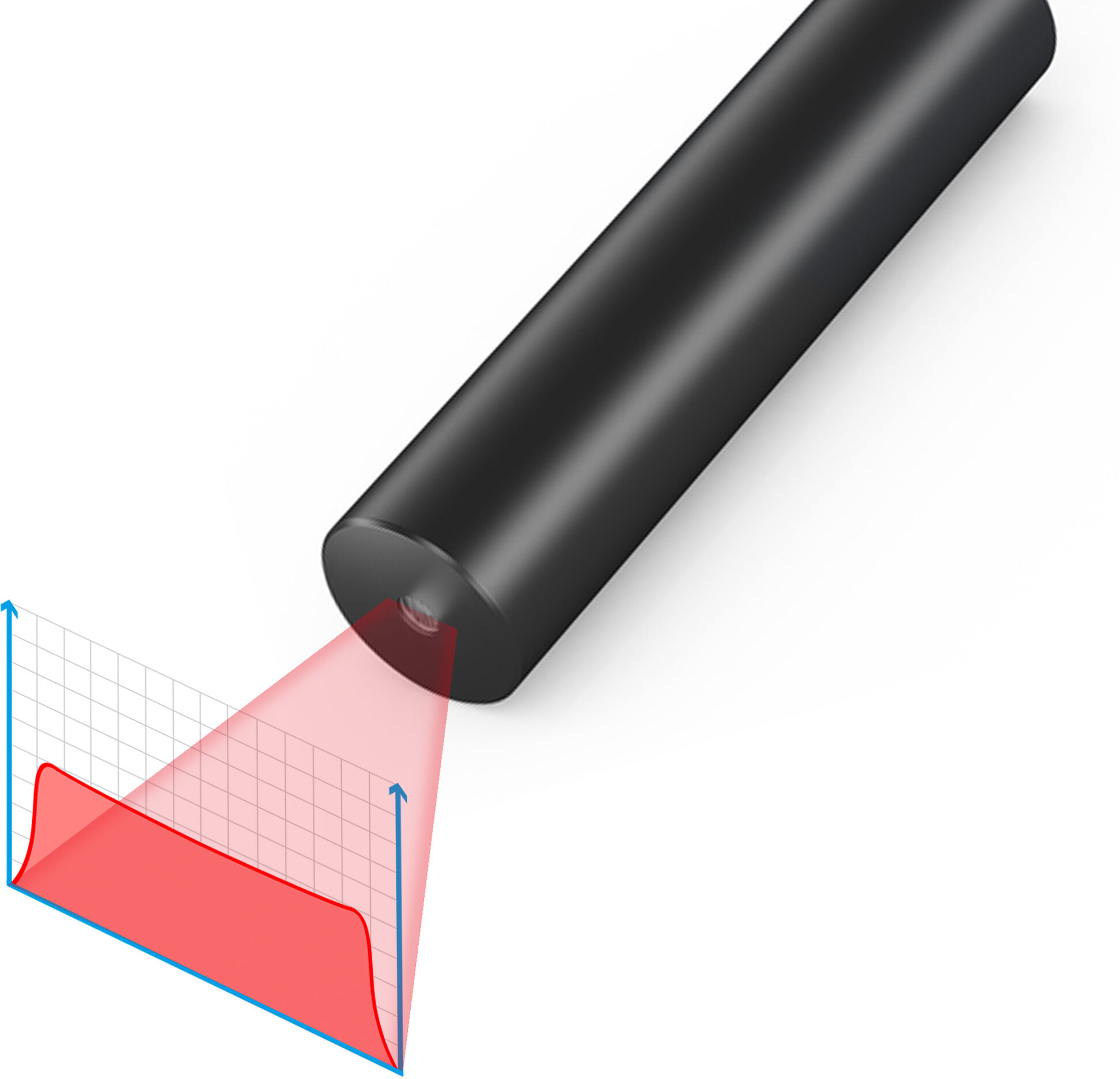

MLE660-50-5(16x50)60-PWL-F390-IC - Rendergrafik

663,78
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	660nm (rot)
Optical Power	50mW
Laser Class	3R
Divergence	0.6mrad
Fan Angle	60°
Line Thickness	<0.25mm@0.39m
Operating Distance	0.39m
Optics	Powell Lens
Opt. Power Stability at const. Temp.	<5%
Axial Divergence	±1°
Size
Material	aluminium
Cable length	175mm
Wire type	26AWG, UL, isolated
Focus	fixed (390mm)
Output Aperture	4.5mm
Potential of Housing	insulated
Lifetime	>6000h
Operating Voltage	2.5 - 5, typ 5V DC
Operating Current	80 - 250, typ 200mA
Housing Color	black
Operating Temperature	-10°C - 80°C
Storage Temperature	-40°C - 85°C
Weight	20g
Stripping of wire	10mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Modulation: green
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
