CB650-5-5(9x26)60-ADJ

Order number: 70135329

Product description:
Adjustable Cross lasermodule, red, 60°, 650nm, 5mW, 3-5V DC, 9x26mm, class 1

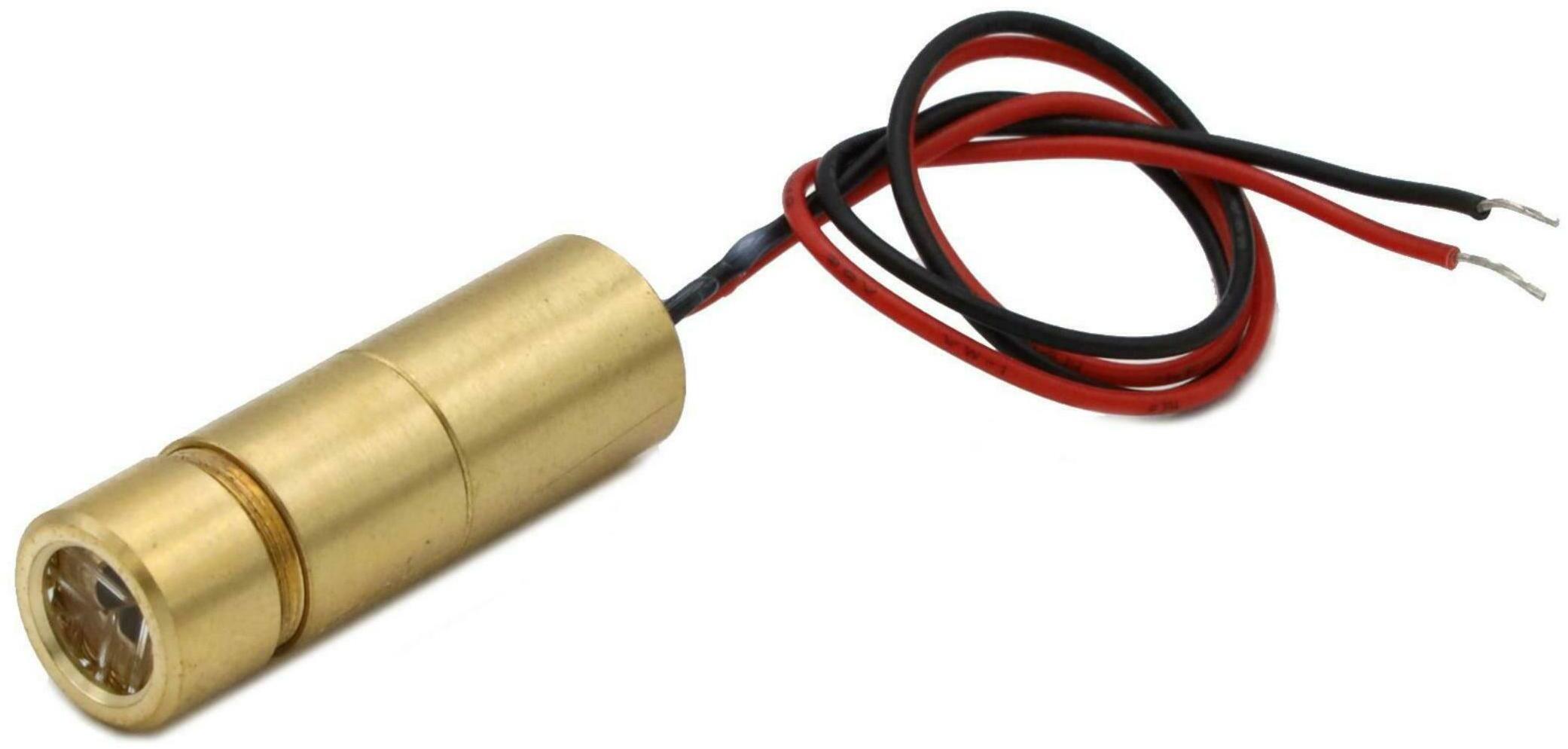

CB650-5-5(9x26)60-ADJ - Produktbild 1
CB650-5-5(9x26)60-ADJ - Hauptbild
CB650-5-5(9x26)60-ADJ - Rendergrafik
Warnlabel 1
35,21
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Cross
    Wavelength 650nm
    (rot)
    Optical Power 5mW
    Laser Class 1
    Divergence 0.3mrad
    Fan Angle 60°
    Operating Distance 3m
    Optics acryl lense
    Laser technology Single Mode Diode
    Size Ø9mm 26mm
    Material Bronze
    Cable length 150mm
    Wire type Belden, Typ 1007, 26AWG
    Focus adjustable
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >10000h
    Operating Voltage 3 - 5V DC
    Operating Current 15 - 60, typ 30mA
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 8.1g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • CB650-5-5(9x26)60-ADJ - Produktbild 1
    CB650-5-5(9x26)60-ADJ - Hauptbild
    CB650-5-5(9x26)60-ADJ - Rendergrafik
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redredVCC
  • Matching accessories
  • MULTI-MOUNT-09(45x75)MULTI-MOUNT-09(45x75)
    Order no.: 70114065
    Mount for Lasermodul 9mm, Diameter 45mm, Height 75mm
    66.30 EUR
