LE405-10-5-F(14x62)

Order number: 70112740

Product description:
adjustable line laser, blue, 90°, 405nm, 10mW, 5V DC, 14x62mm, class 1

• Operating Voltage 5 V DC
• Laser Class 1
• adjustable focus
• low power consumption
• compact size

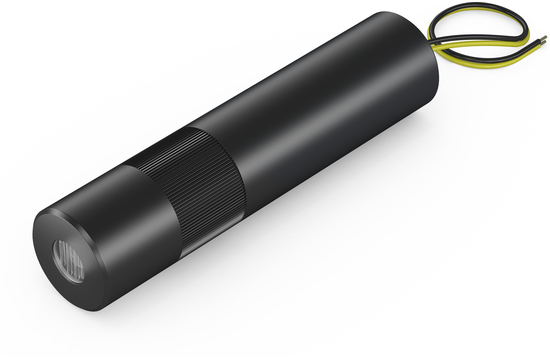

LE405-10-5-F(14x62) - Hauptbild
LE405-10-5-F(14x62) - Rendergrafik
Warnlabel 1
571,34
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 405nm
    (blau)
    Optical Power 10mW
    Laser Class 1
    Divergence 0.6mrad
    Fan Angle 90°
    Line Thickness adjustable
    Operating Distance 5m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø14mm 62mm
    Material aluminium
    Cable length 100mm
    Wire type Belden, Typ 1007, 26AWG
    Focus adjustable
    Output Aperture 5mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 40 - 80, typ 61mA
    Housing Color black
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 70°C
    Weight 18g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • LE405-10-5-F(14x62) - Hauptbild
    LE405-10-5-F(14x62) - Rendergrafik
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
