DD405-1-3(14x45)-CON

Order number: 70133332

Product description:
focusable isolated Dot lasermodule, blue, 405nm, 1mW, 3V DC, 14x45mm, class 2, with 2.5mm connector

• blue Lasermodule
• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• Laser Class 2
• adjustable focus

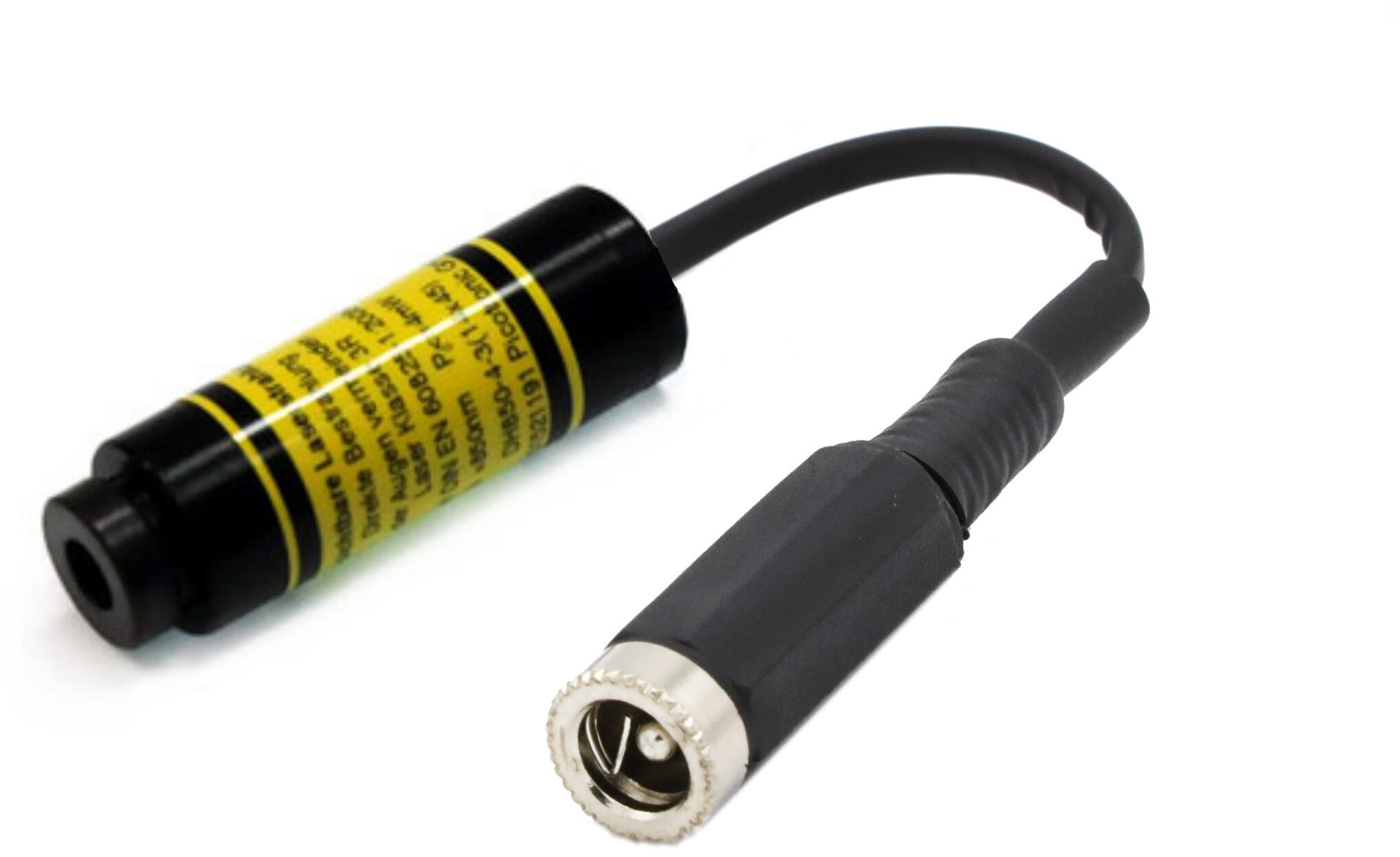

DD405-1-3(14x45)-CON - Hauptbild
DD405-1-3(14x45)-CON - Rendergrafik
DD405-1-3(14x45)-CON - Zeichnung
DD405-1-3(14x45)-CON - Zeichnung Front
DD405-1-3(14x45)-CON - Zeichnung isometrisch
Warnlabel 2
110,84
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength405nm
    (blau)
    Optical Power1mW
    Laser Class2
    Divergence0.5mrad
    Size of Laserdotadjustable
    Operating Distance10m
    OpticsGlass lens AR coated
    Laser technologydiode
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current30 - 90, typ 60mA
    Connector2.5 mm DC plug (GND pole inner)
    Operating Temperature0°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight16g
    Power SupplyPower Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
    • Illustration and technical drawing
    • DD405-1-3(14x45)-CON - Hauptbild
      DD405-1-3(14x45)-CON - Rendergrafik
      DD405-1-3(14x45)-CON - Zeichnung
      DD405-1-3(14x45)-CON - Zeichnung Front
      DD405-1-3(14x45)-CON - Zeichnung isometrisch
      Warnlabel 2
      Connector pin assignment
      Ground:Cable color Ground: blackblackGND
      Positive:Cable color Positive: redred3V DC
    • Matching accessories
    • AM1-1203SZAM1-1203SZ
      Order no.: 70114928
      DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
      16.72 EUR
        • Spalte einblenden …
    • Downloads
    • Data sheet Fax order form
