DE532-5-3-F-S(22x130)DOE

Order number: 70110081

Product description:
Dot Laser, 532nm, 5mW, adjustable focus, w. battery CR132A, with DOE, for TURTLE DOE

• adjustable focus
• compact size
• Laser Class 1
• with battery

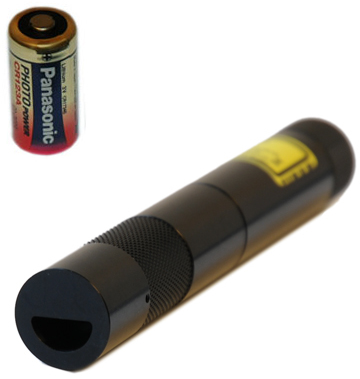

DE532-5-3-F-S(22x130)DOE - Hauptbild
DE532-5-3-F-S(22x130)DOE - Rendergrafik

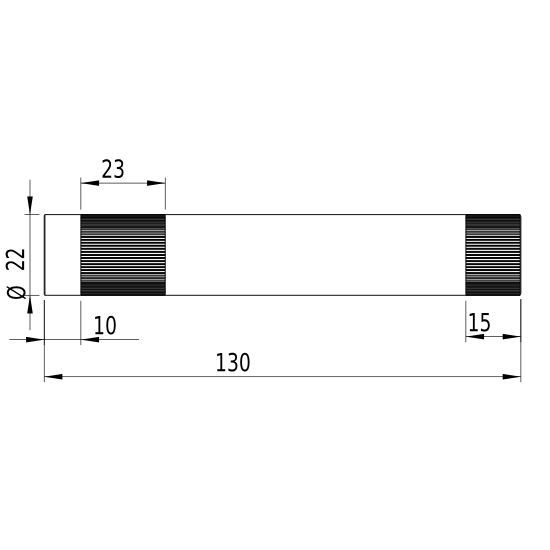

DE532-5-3-F-S(22x130)DOE - Zeichnung

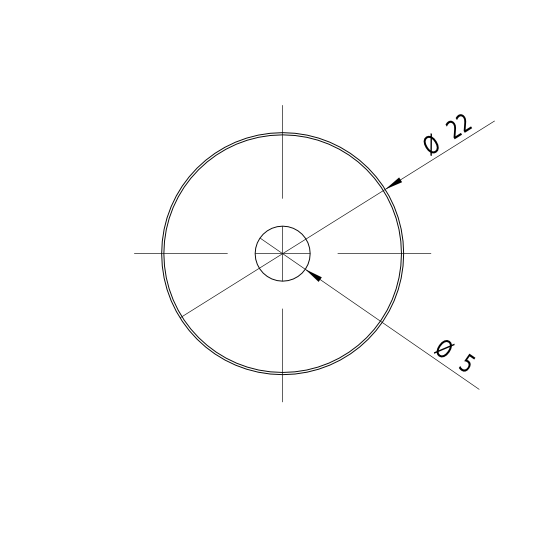

DE532-5-3-F-S(22x130)DOE - Zeichnung Front

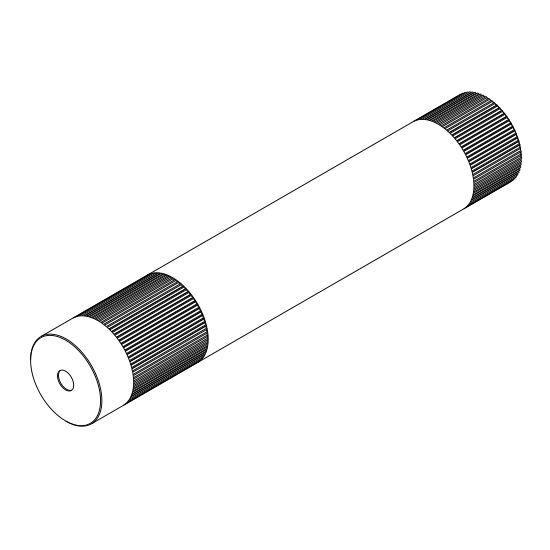

DE532-5-3-F-S(22x130)DOE - Zeichnung isometrisch
Warnlabel 3R
428,49
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 532nm
    (grün)
    Optical Power 5mW
    Laser Class 3R
    Divergence 0.6mrad
    Operating Distance 3m
    Optics Glass lens AR coated
    Beam Mode TEM00
    Laser technology YVO4+KTP
    Stability +/- 20% @ 15-30°C
    Size Ø22mm 130mm
    Material aluminium
    Focus adjustable
    Output Aperture 5mm
    Potential of Housing VDD(+)
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 100 - 300, typ 180mA
    Battery CR123A Lithium Battery, 3V 1400mAh
    Housing Color black
    Operating Temperature 15°C - 30°C
    Storage Temperature -40°C - 80°C
    Warm up time <15min
    Weight 92.5g
  • Illustration and technical drawing
  • DE532-5-3-F-S(22x130)DOE - Hauptbild
    DE532-5-3-F-S(22x130)DOE - Rendergrafik
    DE532-5-3-F-S(22x130)DOE - Zeichnung
    DE532-5-3-F-S(22x130)DOE - Zeichnung Front
    DE532-5-3-F-S(22x130)DOE - Zeichnung isometrisch
    Warnlabel 3R
  • Matching accessories
  • MULTI-MOUNT-22(45x75)MULTI-MOUNT-22(45x75)
    Order no.: 70115215
    Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
    61.26 EUR
