MLE520-5-3(22X82)60-MOUNT

Order number: 70200546

Product description:

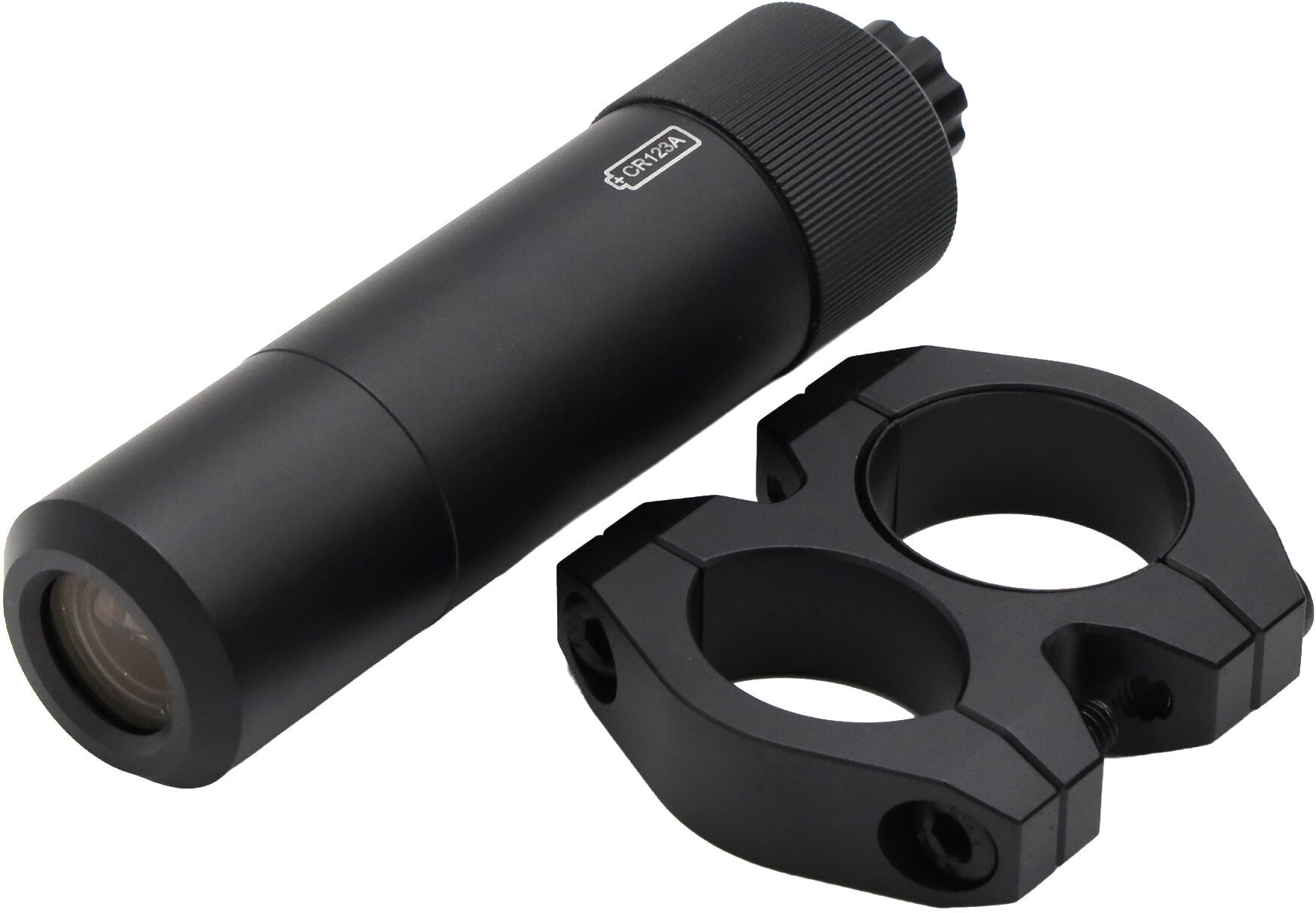

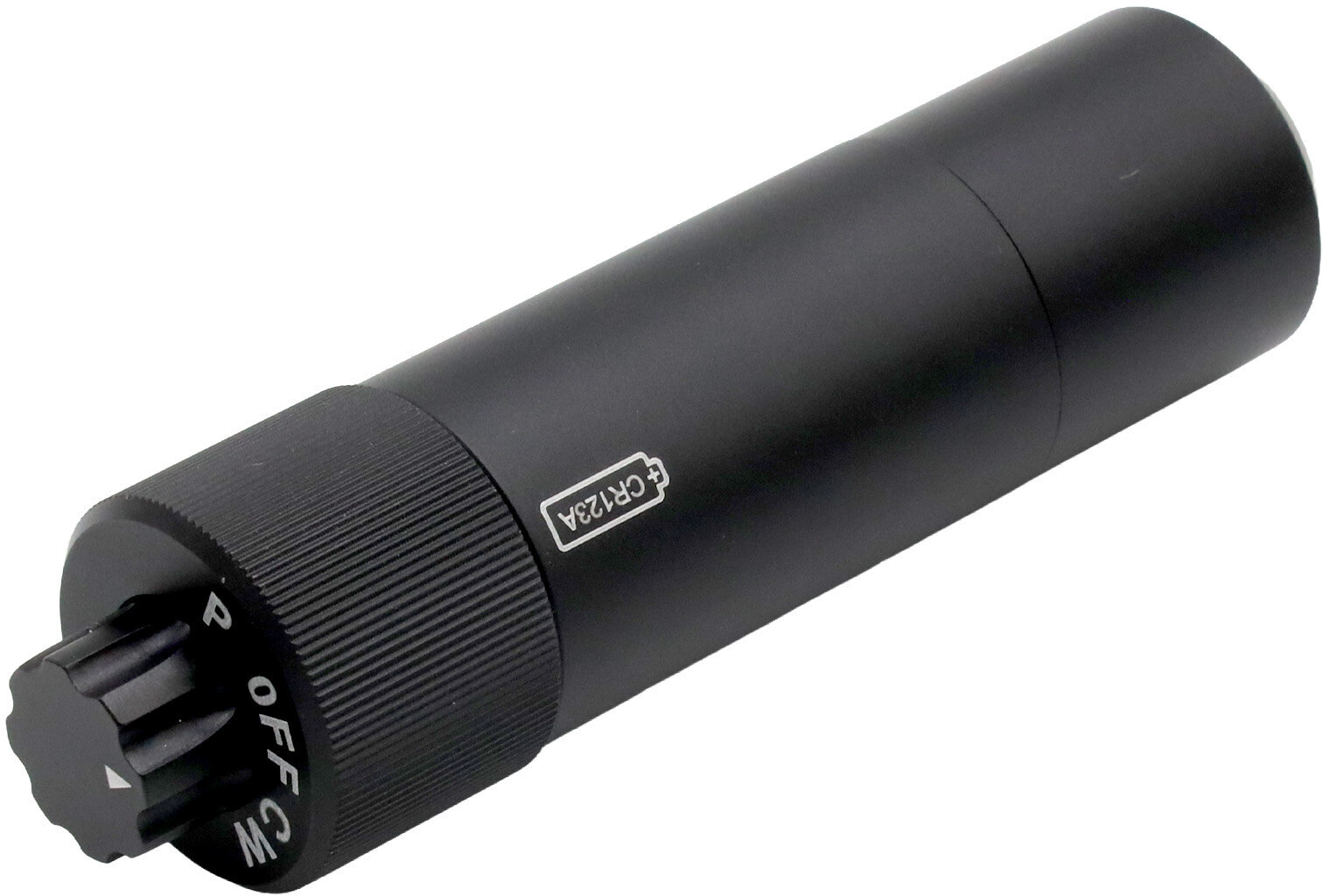

Modulated line laser module, green, 520 nm, 5 mW, 3 V DC, Ø22x82 mm, focus fixed (750mm), laser class 1, switchable operating mode CW or 1.5Hz, including adjustable mount (Ø16mm to Ø22mm)

MLE520-5-3(22X82)60-MOUNT - Produktbild 2

251,26
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	5mW
Laser Class	1
Divergence	0.4mrad
Fan Angle	60°
Line Thickness	<2mm @750mm
Operating Distance	750m
Optics	Glass lens AR coated
Size
Material	aluminium
Focus	fixed (750mm)
Lifetime	>10000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	75 - 250, typ 150mA
Battery	CR123A Lithium Battery, 3V 1400mAh
Battery count	1
Housing Color	black
Operating Temperature	-10°C - 60°C
Storage Temperature	-40°C - 80°C
Weight	87g

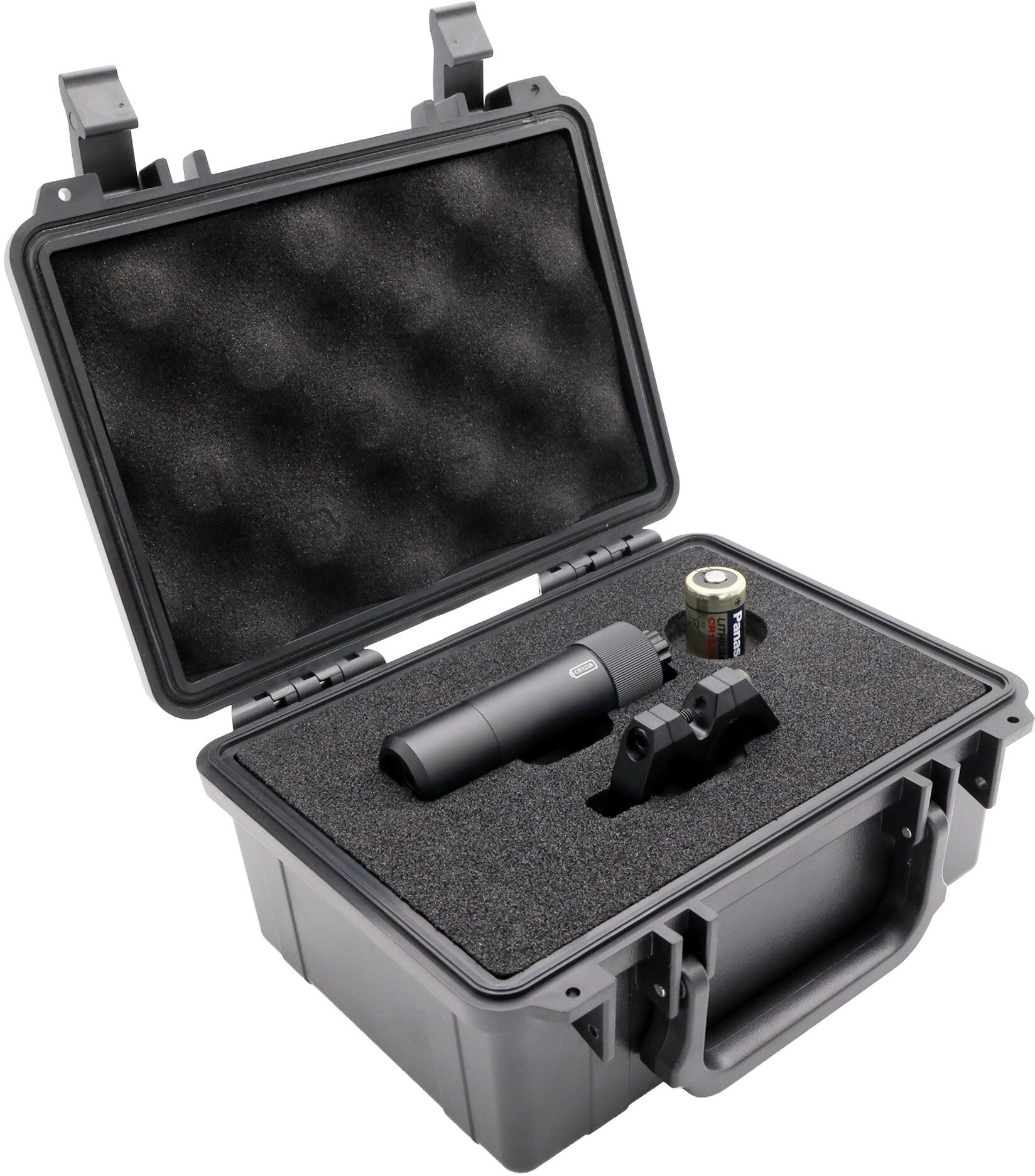

Delivery Content	Including adjustable mount for Ø16 mm to Ø22 mm. A CR123A battery is included in the delivery.

Illustration and technical drawing
Matching accessories
LABEL-DIN-CLASS1-DE
Order no.: 70110821
Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
0.60 EUR
Downloads
Data sheet Fax order form
Contact
Subject (leave blank)
Name

Email

Phone number

Your message
Dear Mr. or Mrs. I am interested in the product with the order number 70200546 and would like to receive further information about it. Kind regards

Please note our privacy policy.

These are mandatory fields


	LABEL-DIN-CLASS1-DE Order no.: 70110821 Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET 0.60 EUR
