LE635-15-5(14x55)-APERTURE

Order number: 70119794

Product description:
isolated Line lasermodule, red, 45°, 635nm, 15mW, 5V DC, 14x55mm, focus 0.4m, class 2, aperture to cut off the edges of the intensity distribution

• Laser Class 2
• low power consumption
• uniform line thickness
• image processing

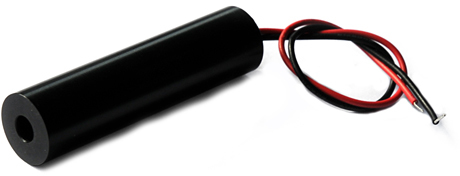

LE635-15-5(14x55)-APERTURE - Hauptbild
LE635-15-5(14x55)-APERTURE - Rendergrafik
LE635-15-5(14x55)-APERTURE - Zeichnung
LE635-15-5(14x55)-APERTURE - Zeichnung Front
LE635-15-5(14x55)-APERTURE - Zeichnung isometrisch
Warnlabel 2
268,82
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 635nm
    (rot)
    Optical Power 15mW
    Laser Class 2
    Divergence 0.6mrad
    Fan Angle 45°
    Line Thickness <0.5mm@0.4m
    Operating Distance 0.4m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø14mm 55mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (400mm)
    Output Aperture 5.5mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 100 - 200, typ 170mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 18g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
  • Illustration and technical drawing
  • LE635-15-5(14x55)-APERTURE - Hauptbild
    LE635-15-5(14x55)-APERTURE - Rendergrafik
    LE635-15-5(14x55)-APERTURE - Zeichnung
    LE635-15-5(14x55)-APERTURE - Zeichnung Front
    LE635-15-5(14x55)-APERTURE - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: whitewhite5V DC
  • Matching accessories
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Order no.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    61.26 EUR
