LC635-1-3(6x30)-F150-C1000

Order number: 70137675

Product description:
Line Laser Module, red, 90°, 635nm, 1mW, 3V DC, 6x30mm, Class 1, Cable length 1m

• Operating Voltage 3 V DC
• Laser Class 1
• uniform illumination
• compact size
• Fan angle 90 °

LC635-1-3(6x30)-F150-C1000 - Rendergrafik

85,63
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	635nm (rot)
Optical Power	1mW
Laser Class	1
Divergence	0.4mrad

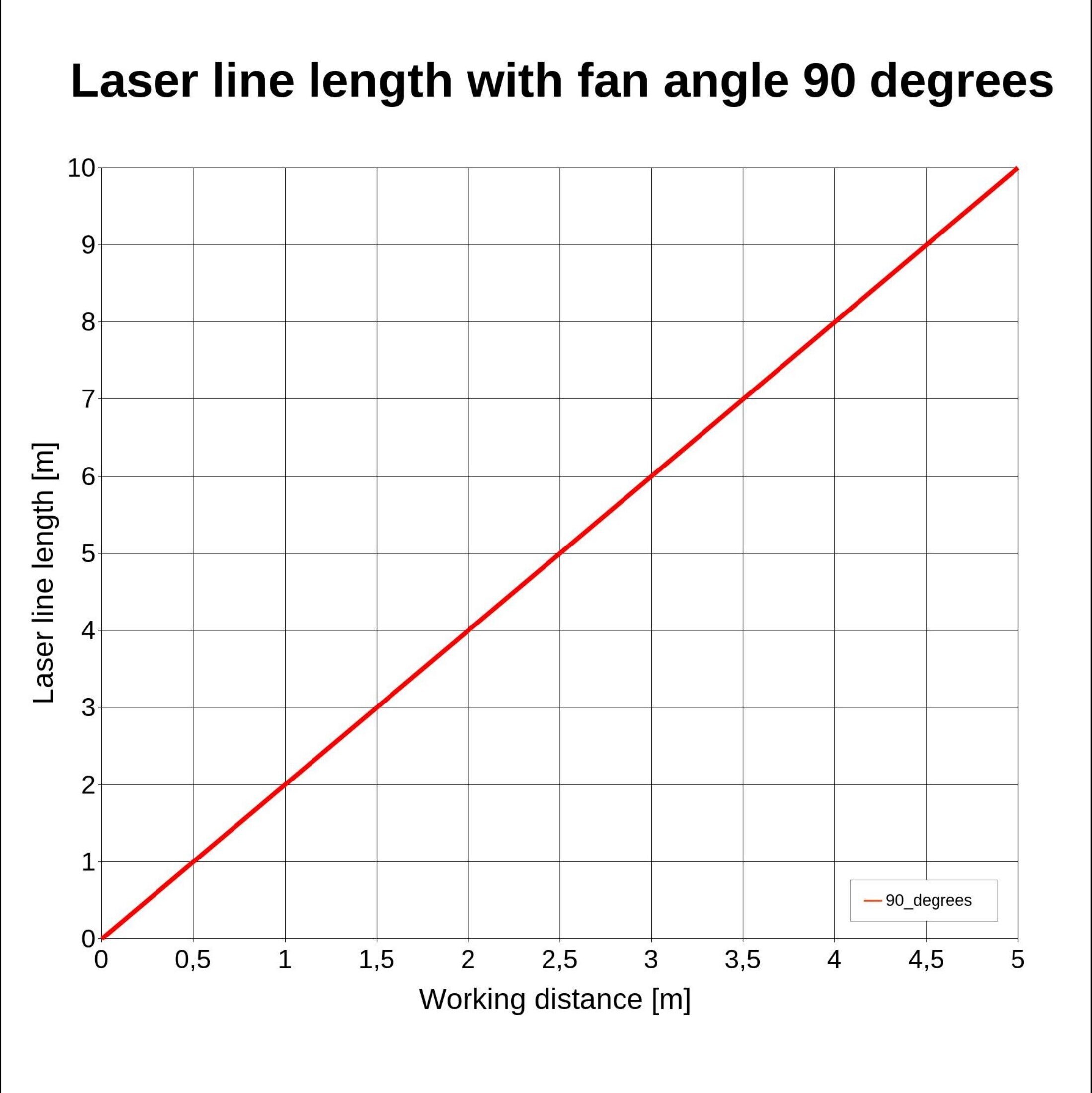

Fan Angle	90°
Line Thickness	<0.1mm@0.15m
Operating Distance	0.15m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	Bronze
Cable length	1000mm
Wire type	Belden, Typ 1007, 26AWG
Focus	fixed (150mm)
Output Aperture	3.5mm
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 50, typ 32mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	10g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
Stripping of wire	5mm
Stripping of cable cover	50mm

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
