LE520-30-24(20X90)110

订单号: 70181203

产品描述:
Isolated line laser module, green, 110°, 520nm, 30mW, 24V DC, 20x90mm, Class 2M
LE520-30-24(20X90)110 - Produktbild 1
LE520-30-24(20X90)110 - Hauptbild
LE520-30-24(20X90)110 - Produktbild 2
Warnlabel 2M
255,00
所有价格单位均为欧元,含运费含税价

我们不需要隐藏我们的价格!

您是不是很惊讶我们的价格都是公开的、透明的? 而其他的供应商只是给您一个单独的报价? 我们的成本在坦诚相待的基础上也是透明的 所有的客户都是一视同仁的,您可以自由选择。

支: 10501002505001000
折扣: 10%15%20%25%30%35%
  • 参数
  • Warranty 1Jahre
    Beam Shape 线
    Wavelength 520nm
    (grün)
    Optical Power 30mW
    Laser Class 2M
    Divergence 0.6mrad
    Fan Angle 110°
    Line Thickness <2.0mm at 3m
    Operating Distance 5m
    Optics 镀膜玻璃透镜
    Size Ø20mm 90mm
    Material aluminium
    Focus 可调的
    Output Aperture 5.5mm
    Potential of Housing 绝缘
    Lifetime >8000h
    Operating Voltage 24V DC
    Operating Current 70 - 130, typ 100mA
    Housing Color 黑色

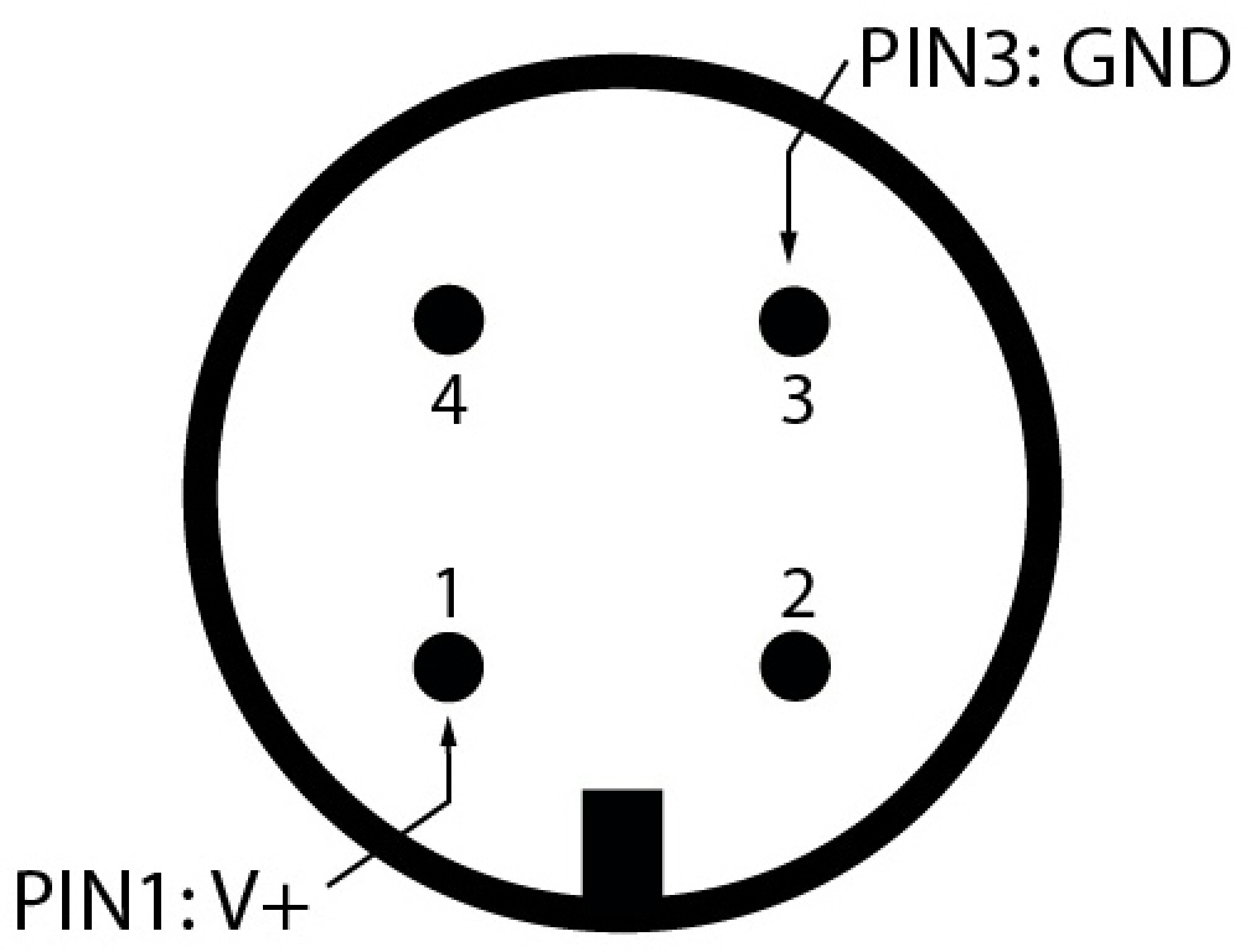

    Connector CON-M12
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 52g
    Power Supply Laser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector
  • 图解及技术图纸
  • LE520-30-24(20X90)110 - Produktbild 1
    LE520-30-24(20X90)110 - Hauptbild
    LE520-30-24(20X90)110 - Produktbild 2
    Warnlabel 2M
  • 适用的附件
  • MULTI-MOUNT-20(45x75)MULTI-MOUNT-20(45x75)
    订单号: 70112511
    Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
    61.26 EUR
