DC635-1-4.5(14x64)-RS-AP

Номер заказа: 70123760

Описание продукции:
Red laser module, 635nm, 1mW, 4.5V DC, 14x64mm, Class 2, includes battery, with rotary switch and internal thread M4x0.7

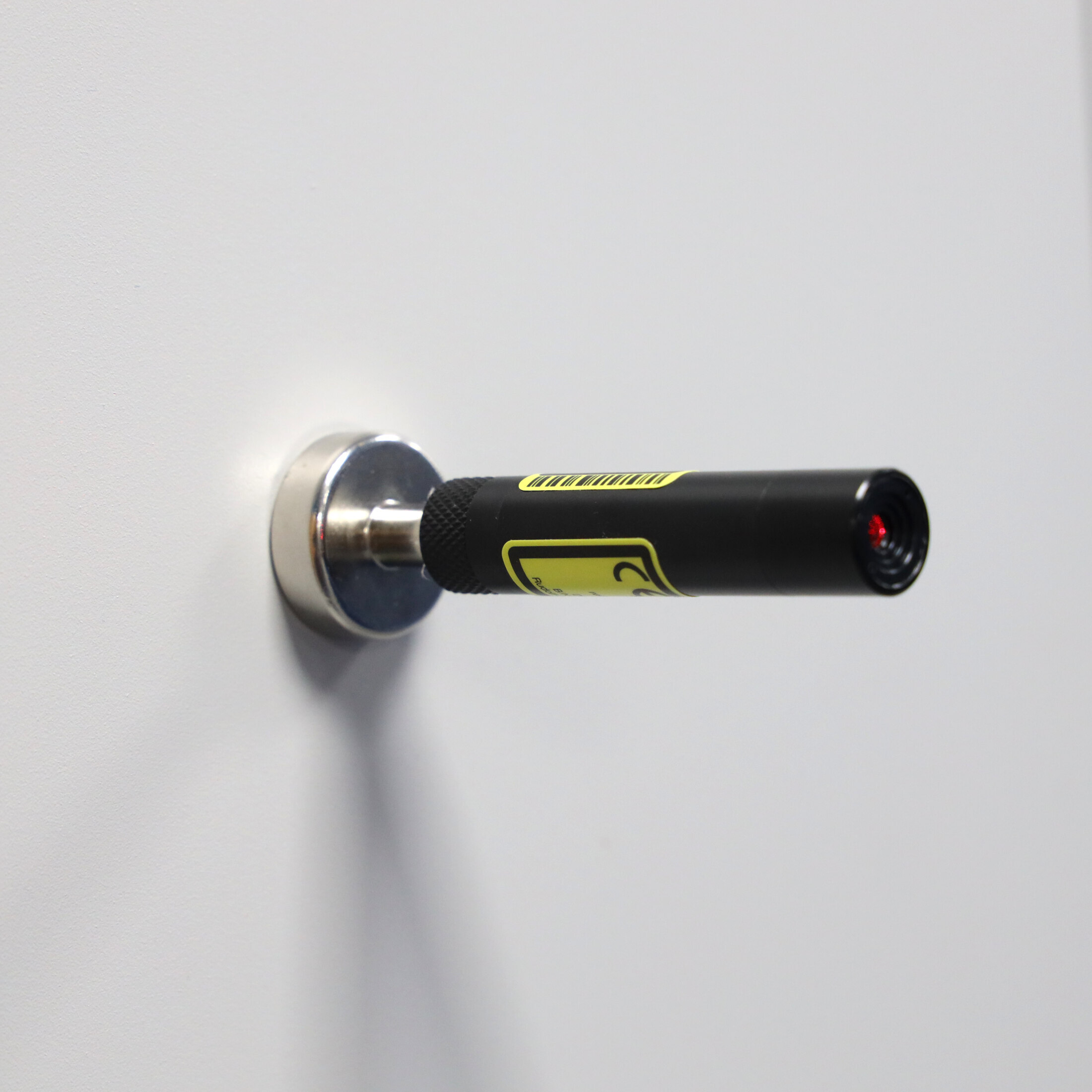

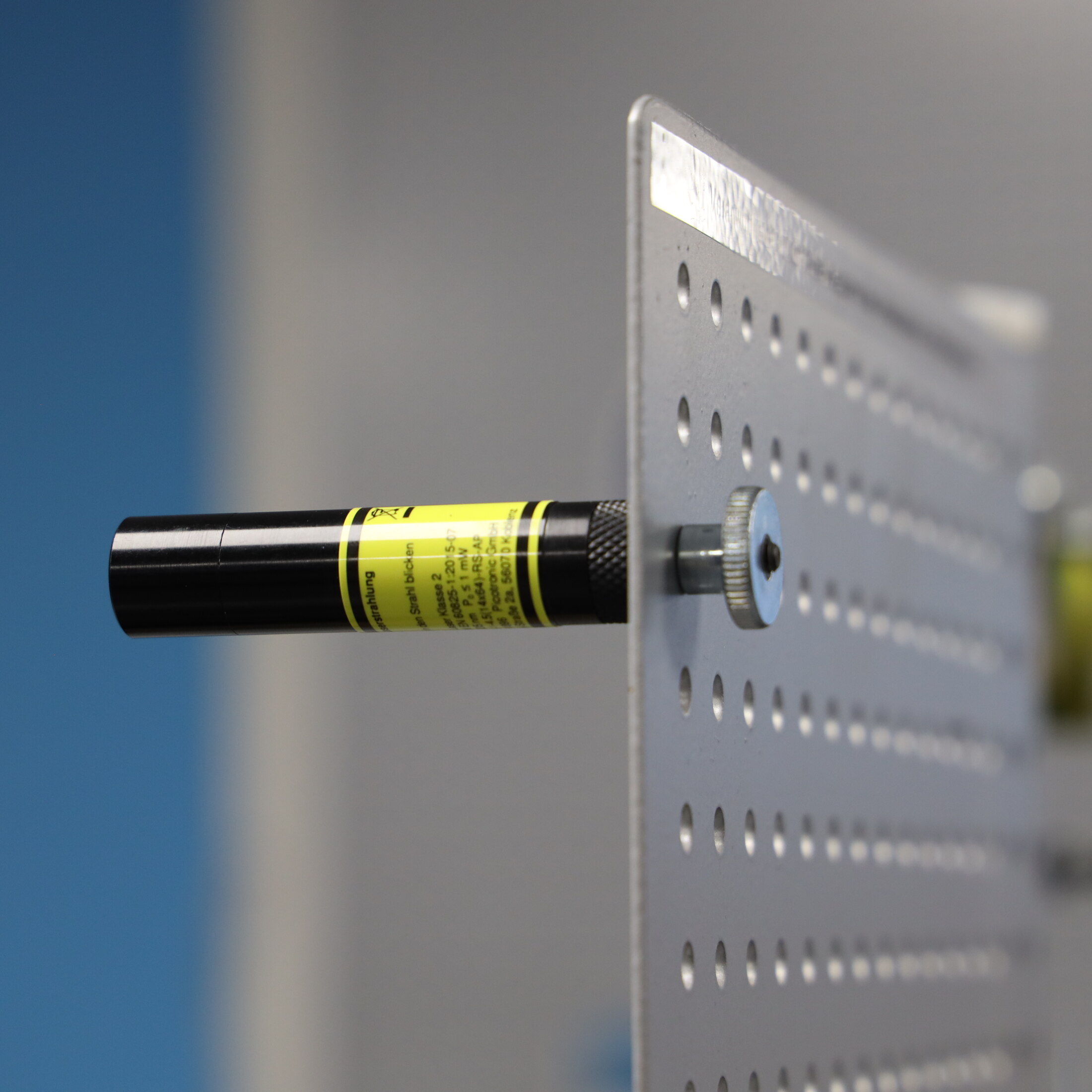

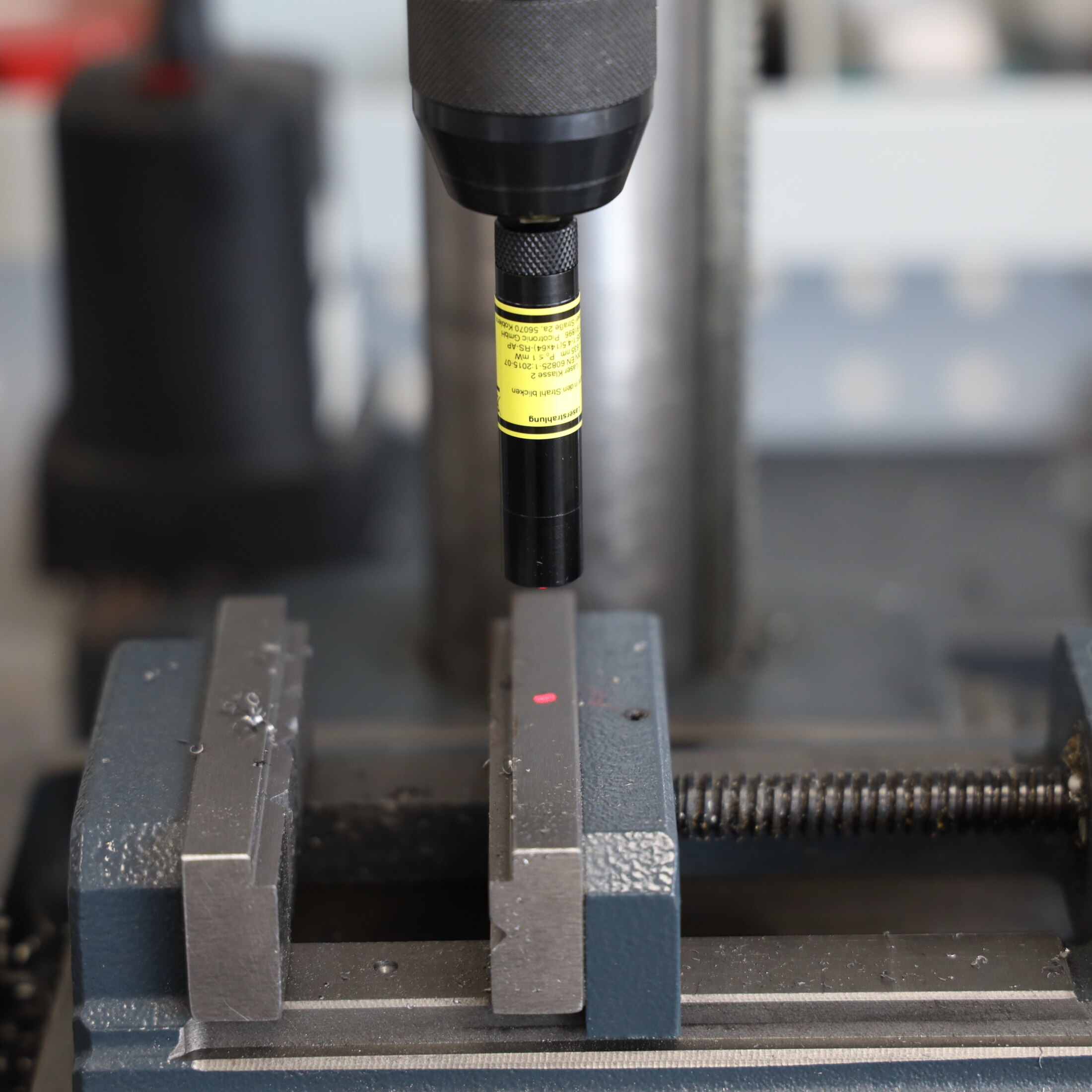

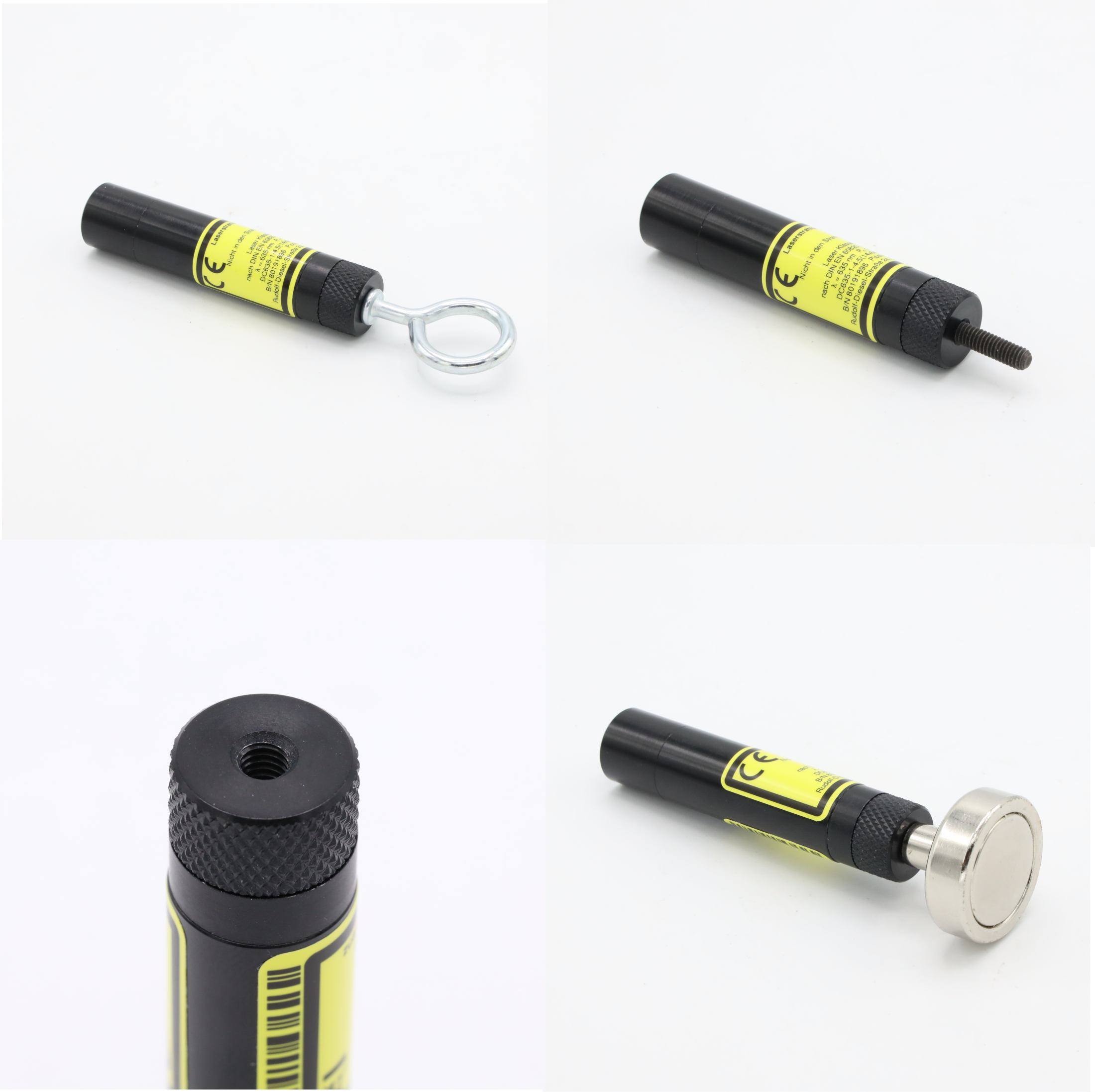

DC635-1-4.5(14x64)-RS-AP - Produktbild 1
DC635-1-4.5(14x64)-RS-AP - Hauptbild
DC635-1-4.5(14x64)-RS-AP - Produktbild 2
DC635-1-4.5(14x64)-RS-AP - Produktbild 3
DC635-1-4.5(14x64)-RS-AP - Produktbild 4
DC635-1-4.5(14x64)-RS-AP - Produktbild 5
DC635-1-4.5(14x64)-RS-AP - Produktbild 6
DC635-1-4.5(14x64)-RS-AP - Produktbild 7
DC635-1-4.5(14x64)-RS-AP - Produktbild 8
DC635-1-4.5(14x64)-RS-AP - Produktbild 9
Warnlabel 2
116,72
Все цены в евро вкл.НДС и стоимость доставки.

Мы не прячем наши цены!

Вы удивлены нашей открытости в плане цен? У других производителей Вам предлагают индивидуальные предложения? Наш расчет цен базируется на прозрачности, доверии и равное отношение ко всем клиентам - и у Вас есть возможность сравнить!

Количество: 10501002505001000
Скидка: 10%15%20%25%30%35%
  • Техническая спецификация
  • Warranty 1Jahre
    Beam Shape точечный
    Wavelength 635nm
    (rot)
    Optical Power 1mW
    Laser Class 2
    Divergence 0.4mrad
    Beam Diameter 3mm
    Size of Laserdot <3mm@5m
    Operating Distance 5m
    Optics стекляная линза с антирефлексовым покрытием
    Laser technology Single Mode Diode
    Axial Divergence ±0.6°
    Size Ø14mm 64mm
    Material aluminium
    Focus fixed (5.0m)
    Output Aperture 3.5mm
    Potential of Housing VDD(+)
    Lifetime >5000h
    Operating Voltage 4.5V DC
    Operating Current 10 - 40, typ 30mA
    Battery LR44/AG13 alkaline battery, 1.5V
    Housing Color черный
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 21g
    Protection Class IPIP 50
  • Изображение и чертеж
  • DC635-1-4.5(14x64)-RS-AP - Produktbild 1
    DC635-1-4.5(14x64)-RS-AP - Hauptbild
    DC635-1-4.5(14x64)-RS-AP - Produktbild 2
    DC635-1-4.5(14x64)-RS-AP - Produktbild 3
    DC635-1-4.5(14x64)-RS-AP - Produktbild 4
    DC635-1-4.5(14x64)-RS-AP - Produktbild 5
    DC635-1-4.5(14x64)-RS-AP - Produktbild 6
    DC635-1-4.5(14x64)-RS-AP - Produktbild 7
    DC635-1-4.5(14x64)-RS-AP - Produktbild 8
    DC635-1-4.5(14x64)-RS-AP - Produktbild 9
    Warnlabel 2
  • подходящие аксессуары
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Номер заказа: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    61.26 EUR
