DC635-1-4.5(14x64)-RS-AP

Número de pedido: 70123760

Descripción del producto:
Red laser module, 635nm, 1mW, 4.5V DC, 14x64mm, Class 2, includes battery, with rotary switch and internal thread M4x0.7

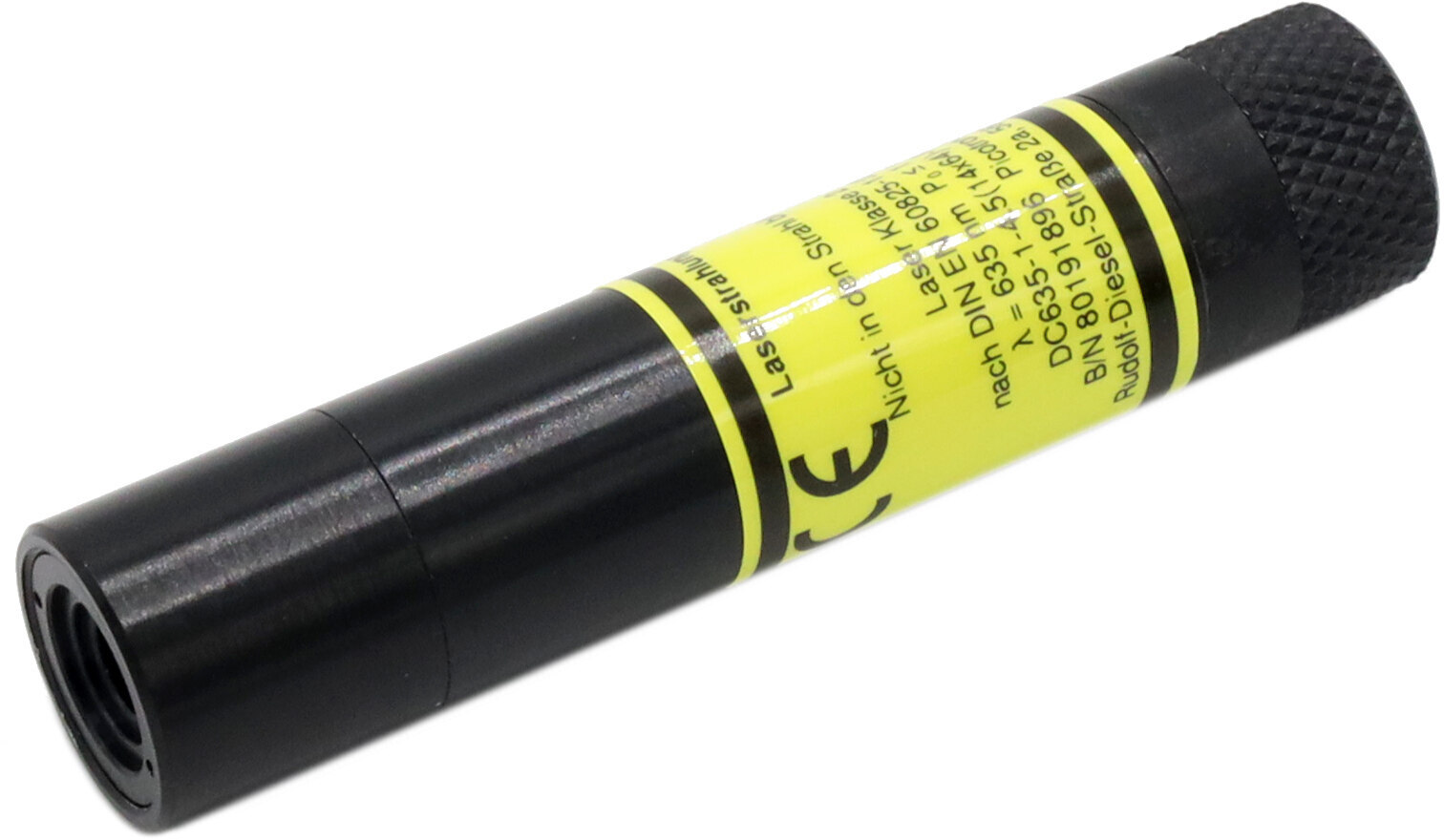

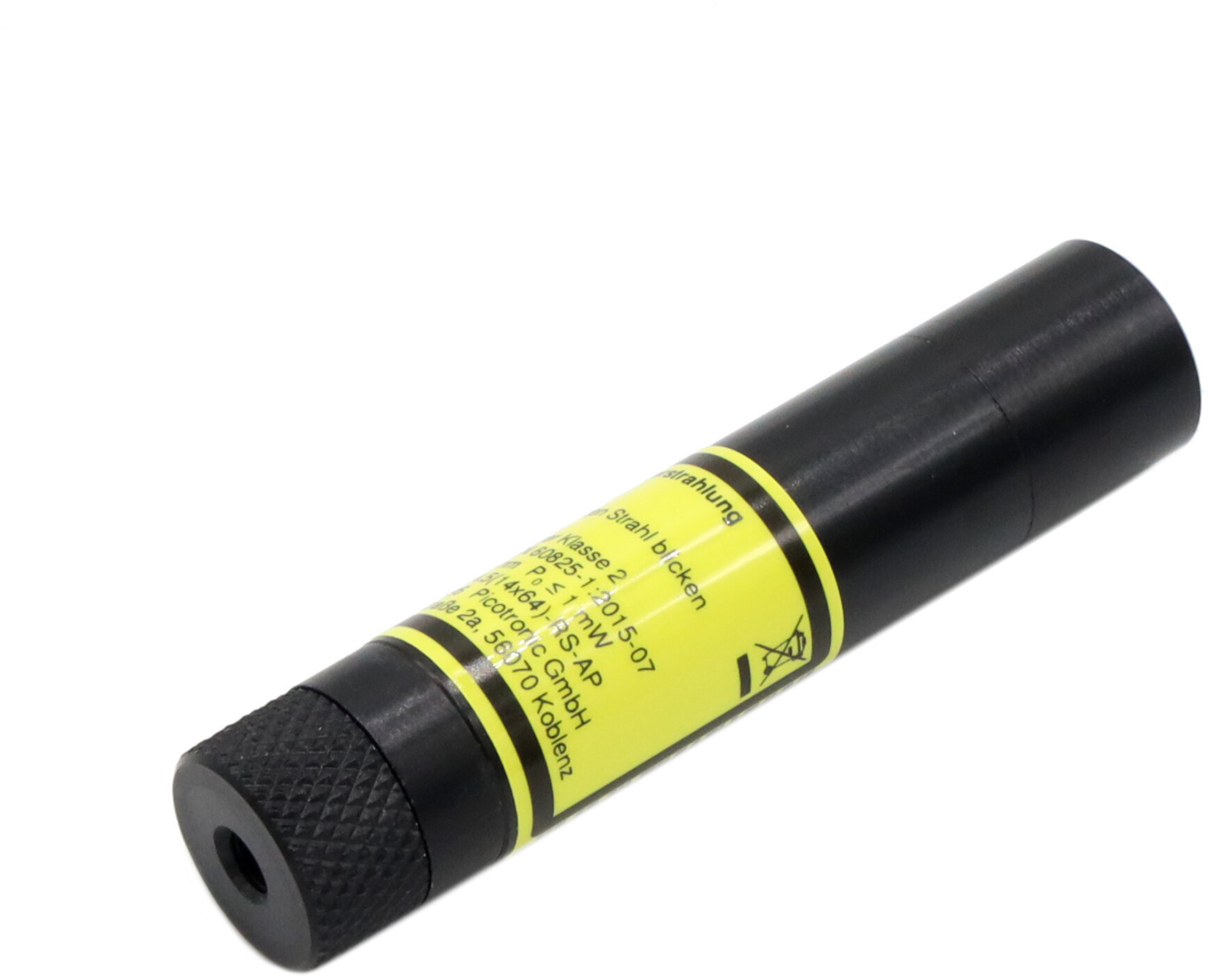

DC635-1-4.5(14x64)-RS-AP - Produktbild 1
DC635-1-4.5(14x64)-RS-AP - Hauptbild
DC635-1-4.5(14x64)-RS-AP - Produktbild 2
DC635-1-4.5(14x64)-RS-AP - Produktbild 3
DC635-1-4.5(14x64)-RS-AP - Produktbild 4
DC635-1-4.5(14x64)-RS-AP - Produktbild 5
DC635-1-4.5(14x64)-RS-AP - Produktbild 6
DC635-1-4.5(14x64)-RS-AP - Produktbild 7
DC635-1-4.5(14x64)-RS-AP - Produktbild 8
DC635-1-4.5(14x64)-RS-AP - Produktbild 9
Warnlabel 2
125,13
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty1Jahre
    Beam ShapePunto
    Wavelength635nm
    (rot)
    Optical Power1mW
    Laser Class2
    Divergence0.4mrad
    Beam Diameter3mm
    Size of Laserdot<3mm@5m
    Operating Distance5m
    OpticsLente de cristal con recubrimiento AR
    Laser technologySingle Mode Diode
    Axial Divergence±0.6°
    Size
    Materialaluminium
    Focusfixed (5.0m)
    Output Aperture3.5mm
    Potential of HousingVDD(+)
    Lifetime>5000h
    Operating Voltage4.5V DC
    Operating Current10 - 40, typ 30mA
    BatteryLR44/AG13 alkaline battery, 1.5V
    Housing Colornegro
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight21g
    Protection ClassIPIP 50

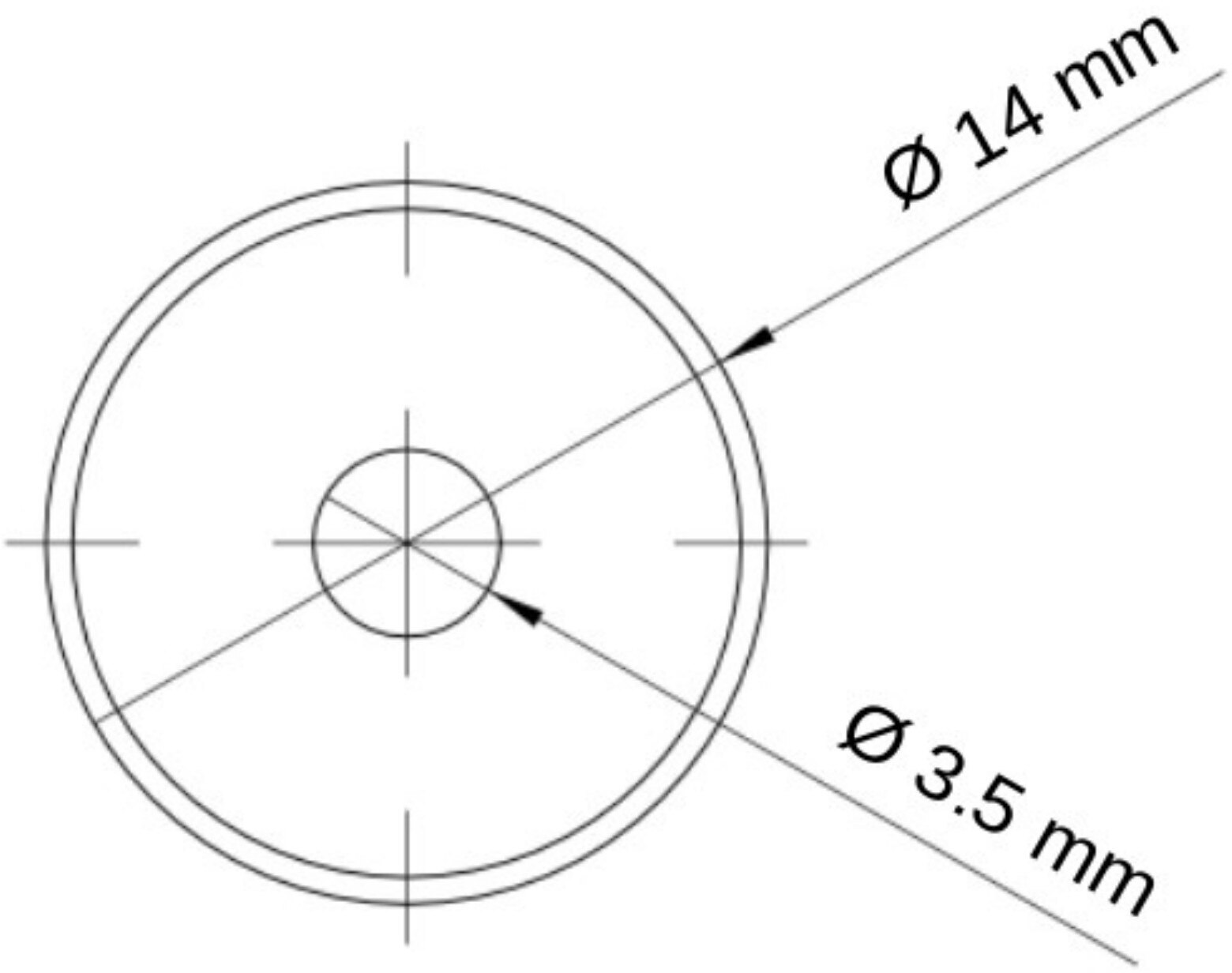

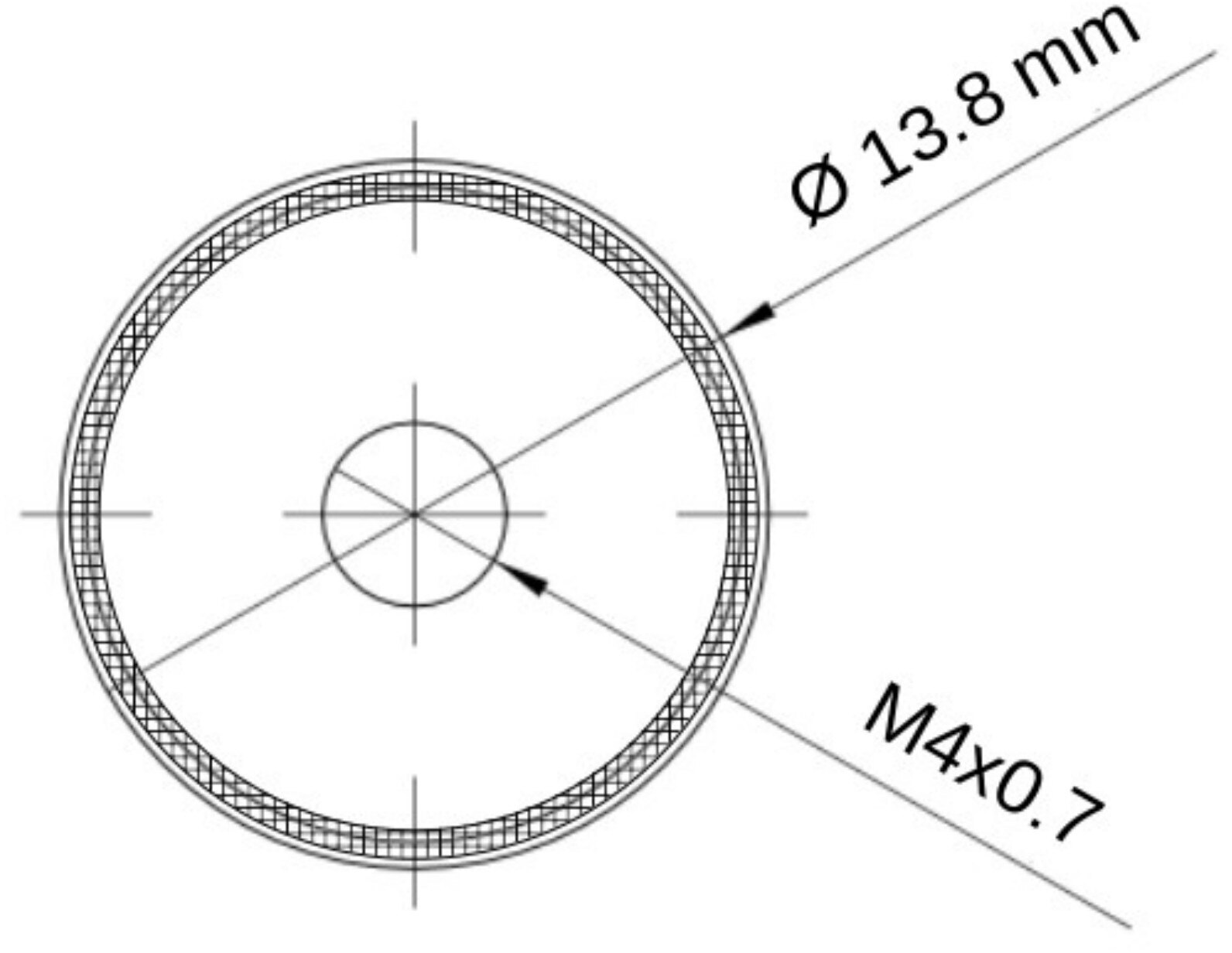

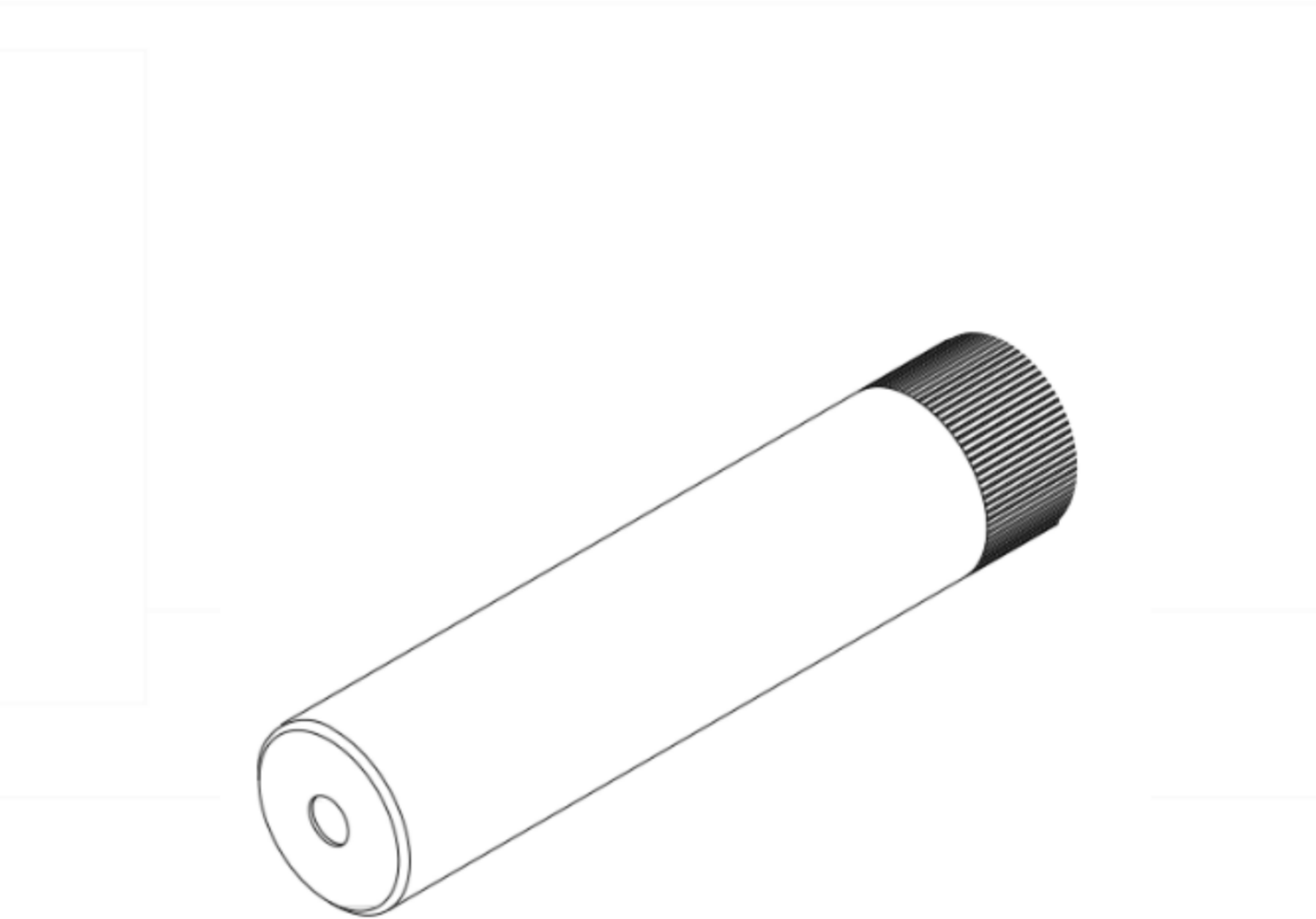

  • Imágenes y dibujo técnico
  • DC635-1-4.5(14x64)-RS-AP - Produktbild 1
    DC635-1-4.5(14x64)-RS-AP - Hauptbild
    DC635-1-4.5(14x64)-RS-AP - Produktbild 2
    DC635-1-4.5(14x64)-RS-AP - Produktbild 3
    DC635-1-4.5(14x64)-RS-AP - Produktbild 4
    DC635-1-4.5(14x64)-RS-AP - Produktbild 5
    DC635-1-4.5(14x64)-RS-AP - Produktbild 6
    DC635-1-4.5(14x64)-RS-AP - Produktbild 7
    DC635-1-4.5(14x64)-RS-AP - Produktbild 8
    DC635-1-4.5(14x64)-RS-AP - Produktbild 9
    Warnlabel 2
  • Accesorios idóneos
  • LABEL-DIN-CLASS2-DELABEL-DIN-CLASS2-DE
    Pedido Nr.: 70110838
    Safety Label german DIN EN 60825, Class 2, 38x23mm, yellow, PET
    0.60 EUR
