DA635-2-3(11x60)

Bestelnummer: 70100648

Productomschrijving:
isolated Dot lasermodule, red, 635nm, 2mW, 3V DC, 11x60mm, class 3R

• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• fixed focus
• image processing
• Laser Class 3R
DA635-2-3(11x60) - Hauptbild
DA635-2-3(11x60) - Rendergrafik
DA635-2-3(11x60) - Zeichnung

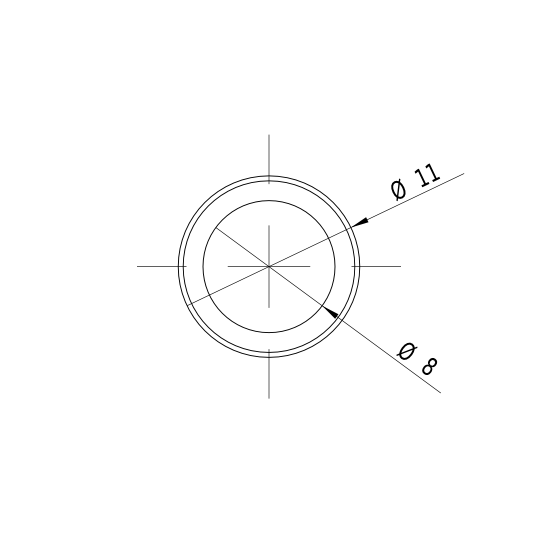

DA635-2-3(11x60) - Zeichnung Front

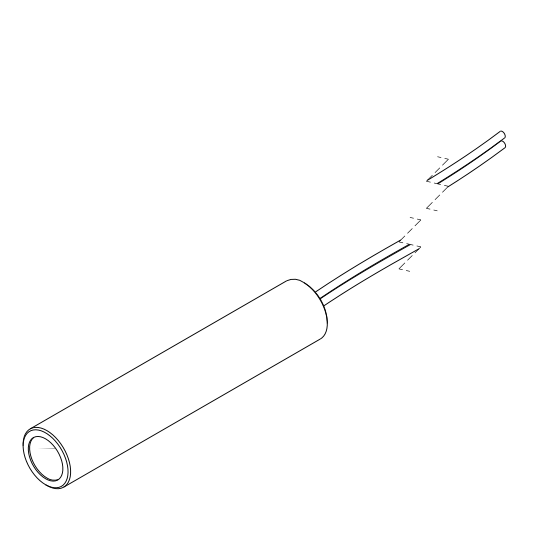

DA635-2-3(11x60) - Zeichnung isometrisch
Warnlabel 3R
87,31
Alle prijzen zijn in Euro Exclusief BTW en Verzendkosten.

Wij hoeven onze prijzen niet te verbergen!

Verbaast het u om hier openlijke prijzen te vinden? Bij andere aanbieders ontvangt u uitsluitend individuele offertes? Onze calculaties zijn gebaseerd op transparantie, vertrouwen en gelijke behandeling van onze klanten - en u heeft de mogelijkheid om te vergelijken!

Stuks: 10501002505001000
Korting: 10%15%20%25%30%35%
  • Specificaties
  • Warranty 1Jahre
    Beam Shape Punt
    Wavelength 635nm
    (rot)
    Optical Power 2mW
    Laser Class 3R
    Divergence 0.2mrad
    Beam Diameter 8mm
    Size of Laserdot <7mm@20m
    Operating Distance 300m
    Optics Lensglas met AR-coating
    Laser technology diode
    Size Ø11mm 60mm
    Material Meting
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus collimated
    Output Aperture 8mm
    Potential of Housing geïsoleerd
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 25 - 75, typ 50mA
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 23g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Afbeelding en Technische tekening
  • DA635-2-3(11x60) - Hauptbild
    DA635-2-3(11x60) - Rendergrafik
    DA635-2-3(11x60) - Zeichnung
    DA635-2-3(11x60) - Zeichnung Front
    DA635-2-3(11x60) - Zeichnung isometrisch
    Warnlabel 3R
    Aansluitgegevens
    Maten:Cable color Ground: blackzwartGND
    Positief:Cable color Positive: redrood3V DC
  • Passende toebehoren
  • MULTI-MOUNT-11(45x75)MULTI-MOUNT-11(45x75)
    Bestel Nr.: 70114089
    Mount for Lasermodul 11mm, Diameter 45mm, Height 75mm
    61.26 EUR
