PICO-LPG-740-1100-05
Bestelnummer: 70190120
Productomschrijving:

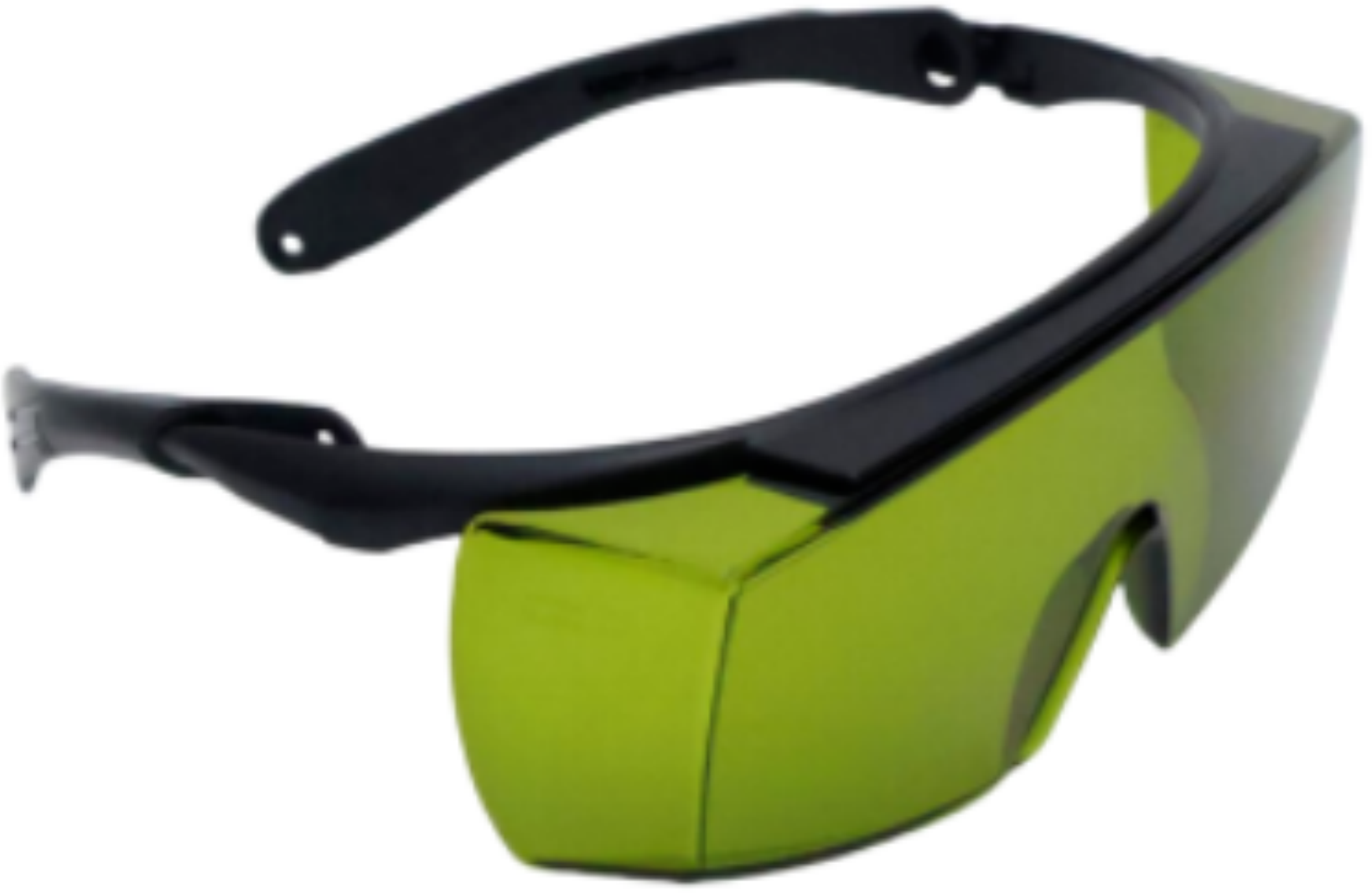

Laser safety goggles, full protection, universal fit, comfortable fit, adjustable temple arms, CE certified
● Wavelength: 740-780nm, Protection levels DIR LB5 ● Wavelength: >780-820nm, Protection level D LB5 + IR LB6 ● Wavelength: >820-1080nm, Protection level D LB5 + IR LB7
Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm, and INFRARED 1064nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Productomschrijving:
Laser safety goggles, full protection, universal fit, comfortable fit, adjustable temple arms, CE certified
● Wavelength: 740-780nm, Protection levels DIR LB5 ● Wavelength: >780-820nm, Protection level D LB5 + IR LB6 ● Wavelength: >820-1080nm, Protection level D LB5 + IR LB7
Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm, and INFRARED 1064nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Wij hoeven onze prijzen niet te verbergen!
Verbaast het u om hier openlijke prijzen te vinden? Bij andere aanbieders ontvangt u uitsluitend individuele offertes? Onze calculaties zijn gebaseerd op transparantie, vertrouwen en gelijke behandeling van onze klanten - en u heeft de mogelijkheid om te vergelijken!
| Stuks: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Korting: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specificaties
Warranty 1Jahre Size 175 x 155 x 60mm Material Polymer Housing Color zwart Operating Temperature -50°C - 85°C Storage Temperature -50°C - 80°C Weight 10g Luminous transmittance 0.33% LB Rating 740 - 780nm DIR LB5
> 780 - 820nm D LB5 + IR LB6
> 820 - 1080nm D LB5 + IR LB7Lens Color Green - Afbeelding en Technische tekening
