DOE216-520-5-3(16x90)-NT

Bestelnummer: 70118865

Productomschrijving:
DOE Laser Module 520nm, green, 5mW, DOE Viewfinder ( Dot Square) PC - 8x1,2mm with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R216

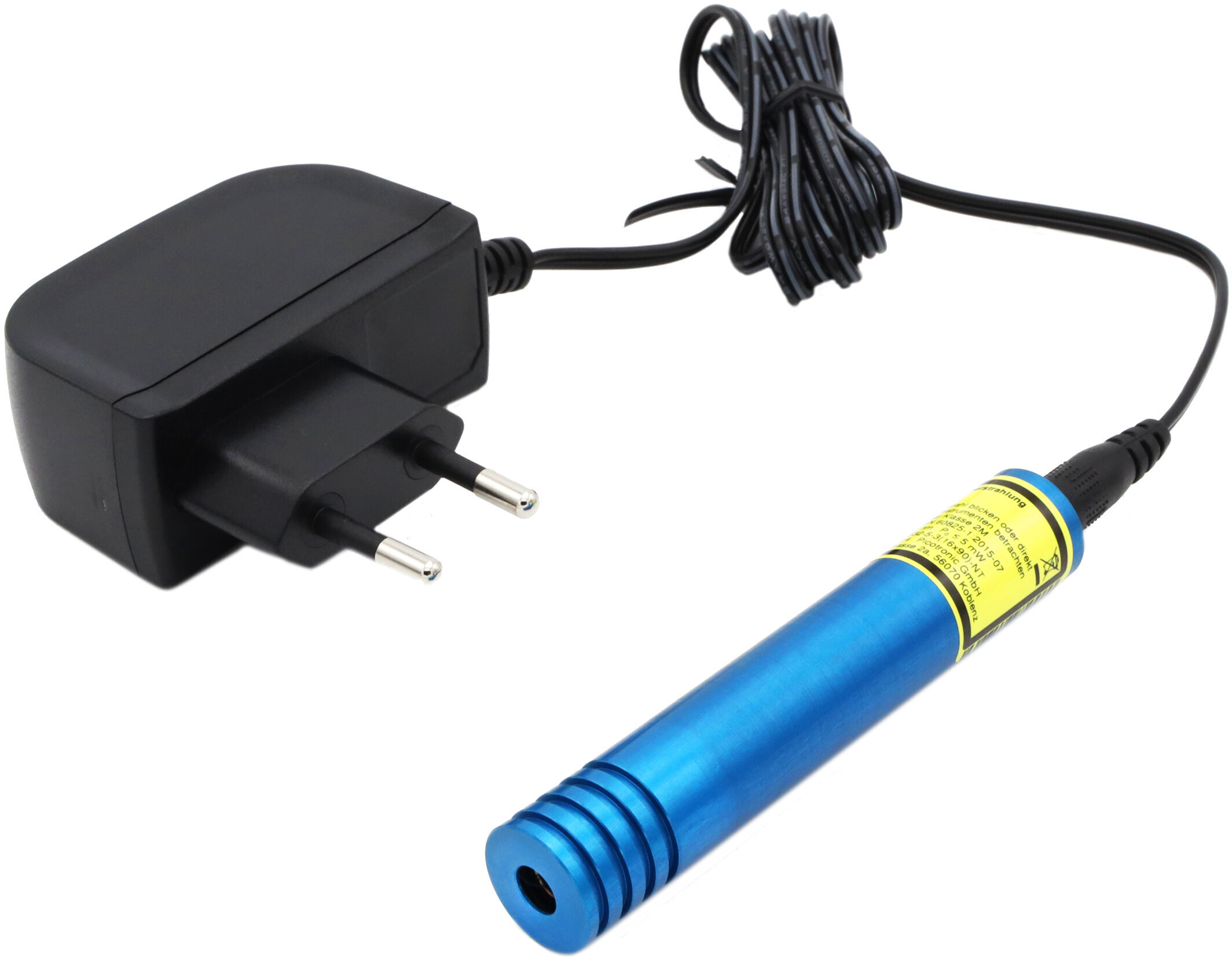

DOE216-520-5-3(16x90)-NT - Hauptbild
DOE216-520-5-3(16x90)-NT - Rendergrafik
Warnlabel 2M
DOE216-520-5-3(16x90)-NT - DOE-Vermaßungsskizze
436,89
Alle prijzen zijn in Euro Exclusief BTW en Verzendkosten.

Wij hoeven onze prijzen niet te verbergen!

Verbaast het u om hier openlijke prijzen te vinden? Bij andere aanbieders ontvangt u uitsluitend individuele offertes? Onze calculaties zijn gebaseerd op transparantie, vertrouwen en gelijke behandeling van onze klanten - en u heeft de mogelijkheid om te vergelijken!

Stuks: 10501002505001000
Korting: 10%15%20%25%30%35%
  • Specificaties
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 520nm
    (grün)
    Optical Power 5mW
    Laser Class 2M
    Divergence 0.7mrad
    Fan Angle 37°
    Operating Distance 2m
    Optics Lensglas met AR-coating
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø16mm 90mm
    Material aluminium
    Cable length 1360mm
    Focus Vast
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >6000h
    Operating Voltage 3V DC
    Operating Current 80 - 200, typ 150mA
    Housing Color cyan
    Connector 2.5 mm DC plug (GND pole inner)
    Operating Temperature -10°C - 60°C
    Storage Temperature -40°C - 80°C
    Power Supply included Ja
    Weight 43g
    Power Supply Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
    Alpha 10.1°
    Beta 7.1°
    Gamma 7.1°
    a 17.7mm
    b 12.5mm
    c 12.5mm
    Diameter (without holder) 8mm
    Material PMMA
    internal modulation frequency 1kHz
  • Afbeelding en Technische tekening
  • DOE216-520-5-3(16x90)-NT - Hauptbild
    DOE216-520-5-3(16x90)-NT - Rendergrafik
    Warnlabel 2M
    DOE216-520-5-3(16x90)-NT - DOE-Vermaßungsskizze
  • Passende toebehoren
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Bestel Nr.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    61.26 EUR
