MD532-5-5-F(22x80)

Bestelnummer: 70114904

Productomschrijving:
modulated focusable isolated Dot lasermodule, green, 532nm, 5mW, 5V DC, 22x80mm, class 3R

• Laser Class 3R
• Operating Voltage 5 V DC
• compact size
• glas lenses anti reflex coated
• adjustable focus

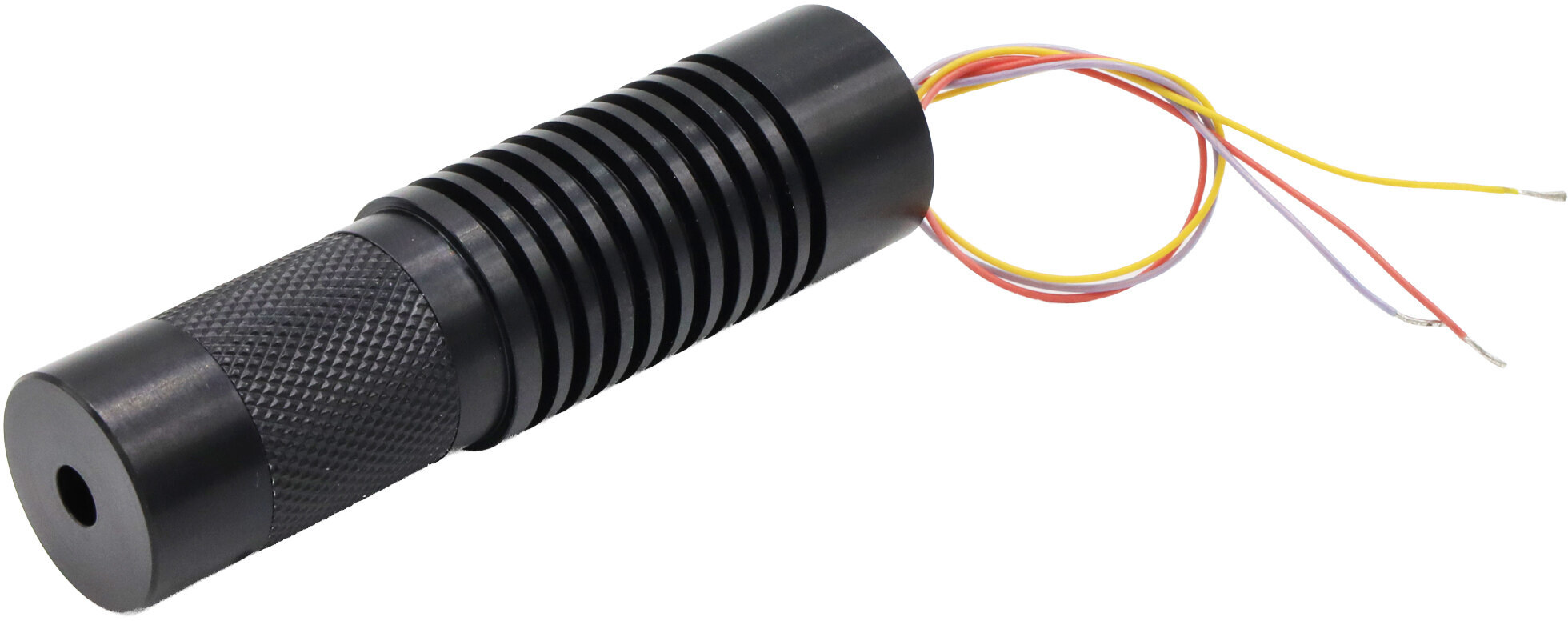

MD532-5-5-F(22x80) - Hauptbild
MD532-5-5-F(22x80) - Rendergrafik
MD532-5-5-F(22x80) - Zeichnung
MD532-5-5-F(22x80) - Zeichnung Front
MD532-5-5-F(22x80) - Zeichnung isometrisch
Warnlabel 3R
210,00
Alle prijzen zijn in Euro Exclusief BTW en Verzendkosten.

Wij hoeven onze prijzen niet te verbergen!

Verbaast het u om hier openlijke prijzen te vinden? Bij andere aanbieders ontvangt u uitsluitend individuele offertes? Onze calculaties zijn gebaseerd op transparantie, vertrouwen en gelijke behandeling van onze klanten - en u heeft de mogelijkheid om te vergelijken!

Stuks: 10501002505001000
Korting: 10%15%20%25%30%35%
  • Specificaties
  • Warranty1Jahre
    Beam ShapePunt
    Wavelength532nm
    (grün)
    Optical Power5mW
    Laser Class3R
    Divergence0.5mrad
    Size of Laserdotinstelbaar
    OpticsLensglas met AR-coating
    Beam ModeTEM00
    Laser technologyYVO4+KTP
    Stability+/- 20% @ 15-30°C
    Size
    Materialaluminium
    Cable length100mm
    Focusinstelbaar
    Output Aperture5mm
    Potential of Housinggeïsoleerd
    Max. Mod. Frequency1kHz
    Lifetime>5000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current100 - 300, typ 250mA
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight16g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    • Afbeelding en Technische tekening
    • MD532-5-5-F(22x80) - Hauptbild
      MD532-5-5-F(22x80) - Rendergrafik
      MD532-5-5-F(22x80) - Zeichnung
      MD532-5-5-F(22x80) - Zeichnung Front
      MD532-5-5-F(22x80) - Zeichnung isometrisch
      Warnlabel 3R
      Aansluitgegevens
      Maten:Cable color Ground: blueblauwGND
      Positief:Cable color Positive: redrood5V DC
      Modulatie:Cable color Modulate: yellowgeel1kHz
    • Passende toebehoren
    • LFNT-5LFNT-5
      Bestel Nr.: 70114683
      Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
      22.61 EUR
      • Downloads
      • Datasheet Faxbestelformulier
