QLD635-5-6(9x20)25
Numéro de commande: 70115093
Description du produit:
Dotline lasermodule, red, 635nm, 5mW, 3V DC, 9x20mm, class 2
• Operating Voltage 3 V DC
• Laser Class 2
• Fan angle 25 °
• fixed focus
• compact size
Description du produit:
Dotline lasermodule, red, 635nm, 5mW, 3V DC, 9x20mm, class 2
• Operating Voltage 3 V DC
• Laser Class 2
• Fan angle 25 °
• fixed focus
• compact size
90-F250.png "QLD635-5-6(9x20)25 - Zeichnung")

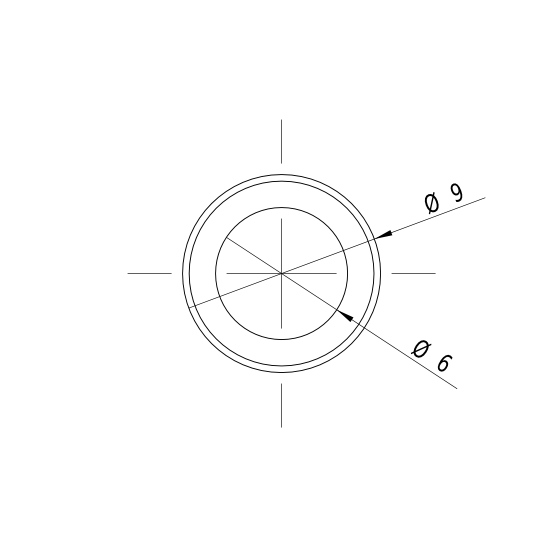

90-F250.png "QLD635-5-6(9x20)25 - Zeichnung Front")

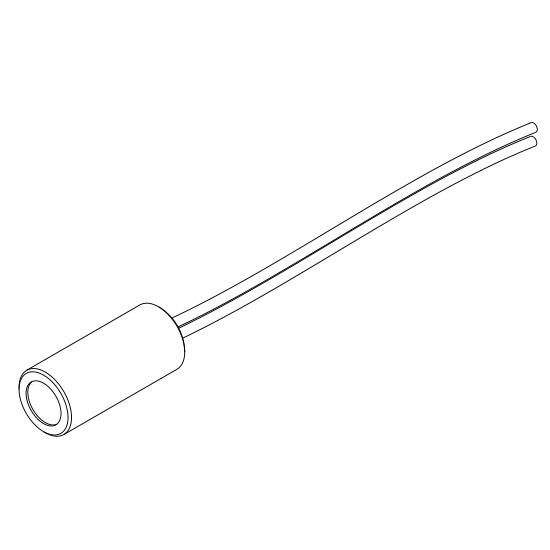

90-F250.png "QLD635-5-6(9x20)25 - Zeichnung isometrisch")
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Dot Line Wavelength 635nm
(rot)Optical Power 5mW Laser Class 2 Divergence 1mrad Fan Angle 25° Size of Laserdot <5mm@5m Line Thickness <3mm@5m Operating Distance 5m Optics acryl lense Laser technology diode Protection Lens Ja Size Material Laiton Cable length 100mm Wire type 26AWG, 0,14mm² Focus fixed (5.0m) Output Aperture 6mm Potential of Housing VDD(+) Lifetime >5000h Operating Voltage 2.7 - 6, typ 3V DC Operating Current 20 - 60, typ 40mA Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 5.1g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. - Illustration et dessin technique
- Affectation des connecteurs
Dimensions:
noir GND Positif:
rouge 3V DC - Accessoires adaptés
AM1-1203SZ
Référence: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
