DD650-25-3-F(16x50)
focusable isolated Dot lasermodule, red, 650nm, 25mW, 3V DC, 16x50mm, class 3B
DOE262-520-5-3-F(16X65)-QCW
Número de pedido: 70184532
Descripción del producto:
Focusable DOE laser module, green, 520nm, 5mW, 3V DC, 16x65mm, class 2M, internal modulation, with DOE-DE-R262
Descripción del producto:
Focusable DOE laser module, green, 520nm, 5mW, 3V DC, 16x65mm, class 2M, internal modulation, with DOE-DE-R262
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape DOE Wavelength 520nm

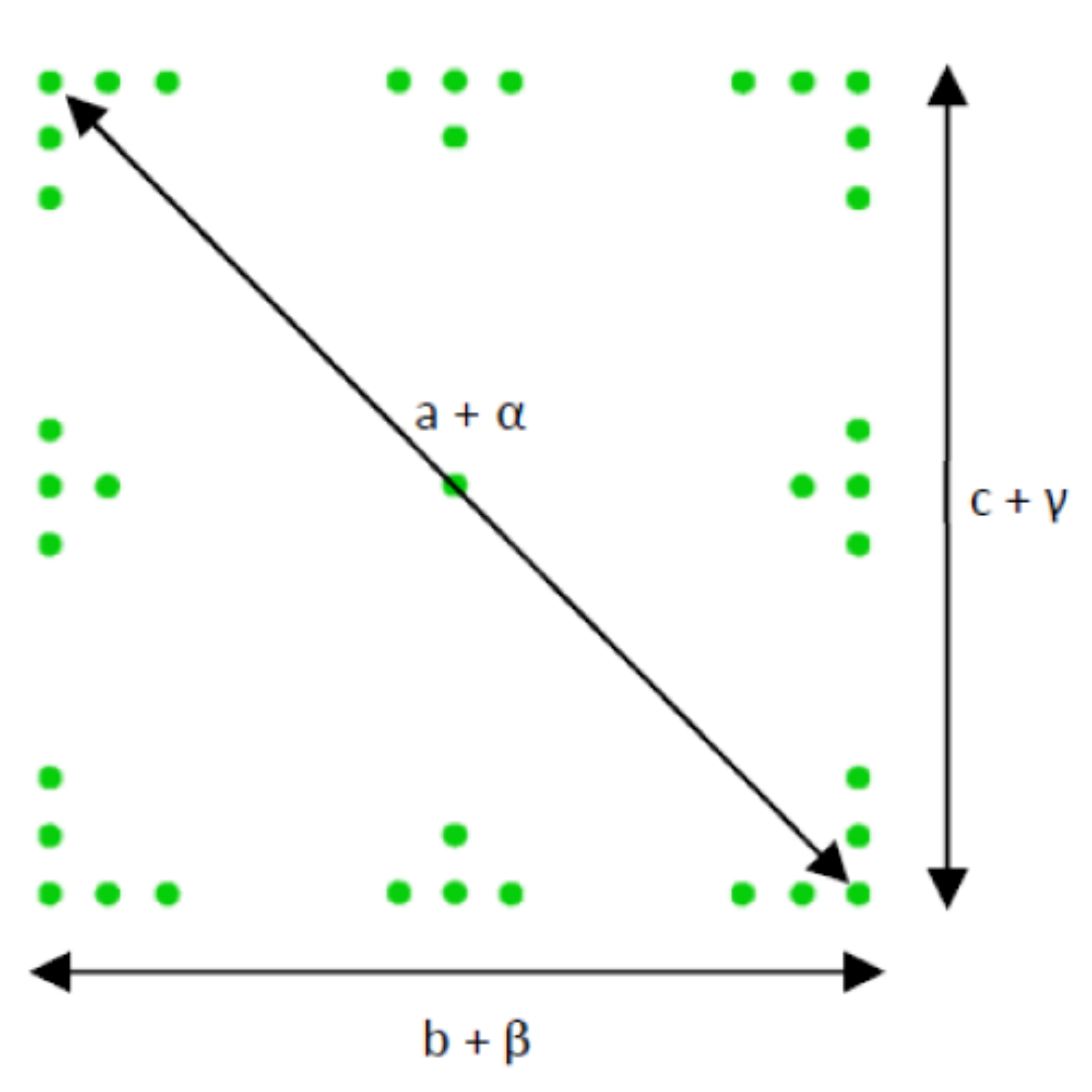

(grün)Optical Power 5mW Laser Class 2M Divergence 0.5mrad Fan Angle 15.9° Operating Distance 3m Optics Lente de cristal con recubrimiento AR Size Material aluminium Cable length 100mm Wire type 26AWG, 0,14mm² Focus ajustable Output Aperture 3mm Potential of Housing aislado Lifetime >6000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 150 - 220, typ 180mA Housing Color negro Operating Temperature -10°C - 60°C Storage Temperature -40°C - 80°C Power Supply included Ja Weight 16g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Alpha 9.8° Beta 6.9° Gamma 6.9° Diameter (without holder) 8mm Material PC internal modulation frequency 1kHz - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
