KS-MOUNT-12(36X62)-MAGNETIC

Número de pedido: 70160246

Descripción del producto:
Magnetic mount for laser module 12mm, diameter 36mm, height 62mm, plastic, holding force 6.5 kg
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 1
KS-MOUNT-12(36X62)-MAGNETIC - Hauptbild
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 2
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 3
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 4
18,40
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • MaterialPlastic
    Housing Colornegro
    Operating Temperature-20°C - 50°C
    Storage Temperature-50°C - 70°C
    Weight20g

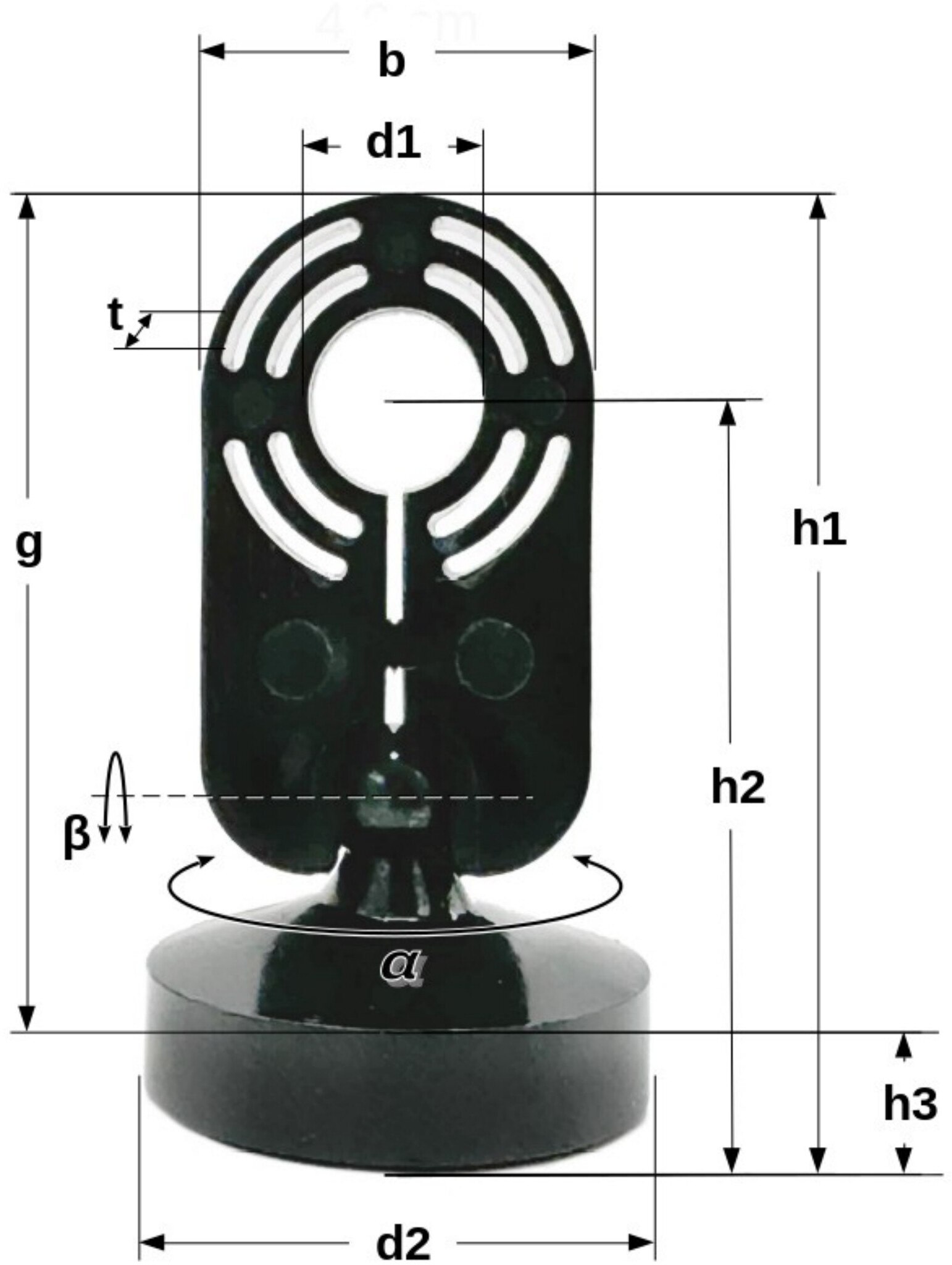

    Total Height (h1)62mm
    Height to Laseraxis (h2)47mm
    Height of Base (h3)17mm
    Mount Diameter (d1)Ø12mm
    Diameter of Base (d2)Ø36mm
    Width of Mount (b)26mm
    Height of Mount (g)45mm
    Depth of Mount (t)12mm
    Angle of Rotation Alpha (α)360°
    Angle of Rotation Beta (β)±180°
  • Imágenes y dibujo técnico
  • KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 1
    KS-MOUNT-12(36X62)-MAGNETIC - Hauptbild
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 2
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 3
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 4
