KS-MOUNT-12(36X62)-MAGNETIC

Order number: 70160246

Product description:
Magnetic mount for laser module 12mm, diameter 36mm, height 62mm, plastic, holding force 6.5 kg

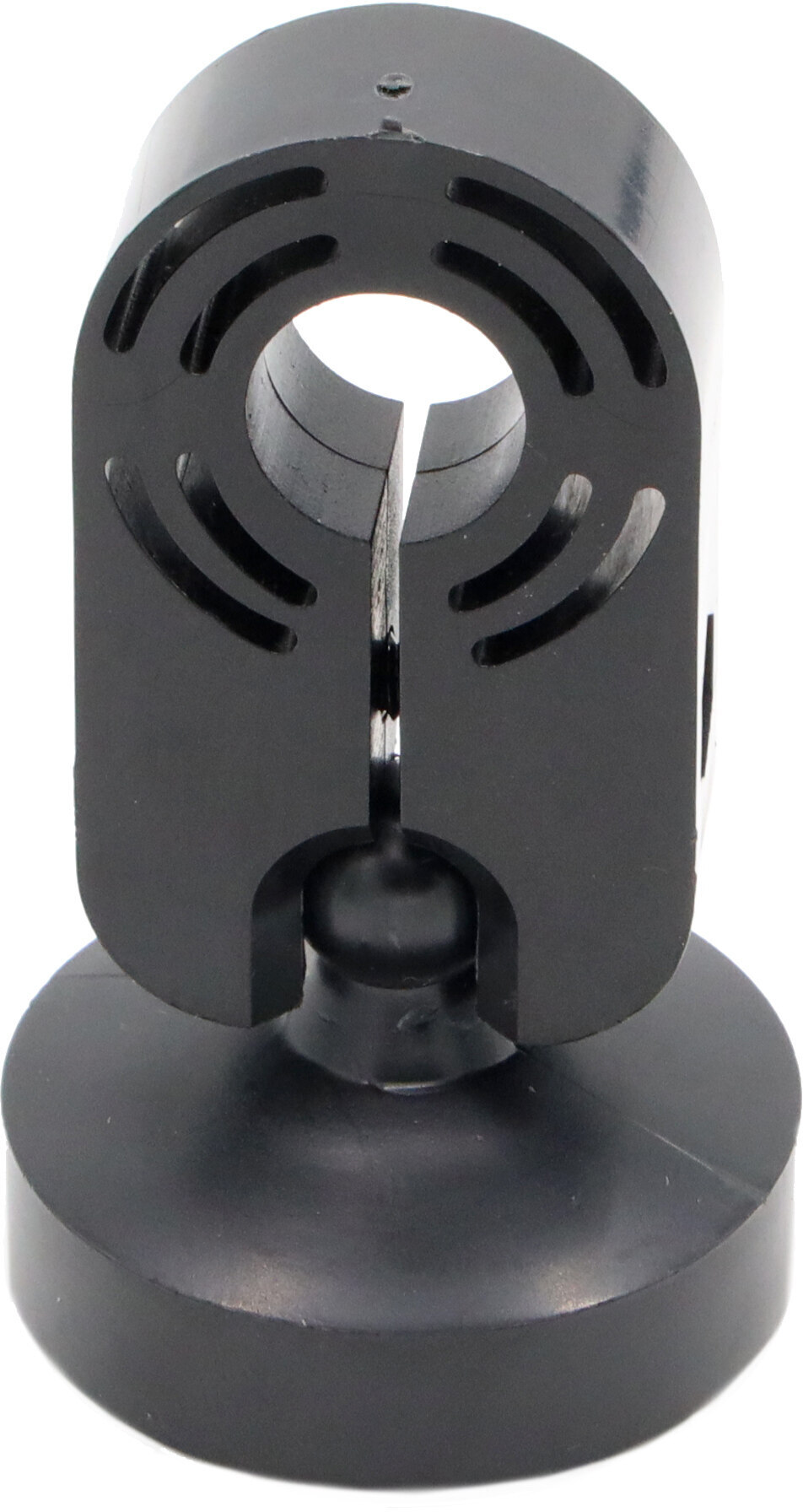

KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 1
KS-MOUNT-12(36X62)-MAGNETIC - Hauptbild
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 2
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 3
KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 4
18,40
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • MaterialPlastic
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-50°C - 70°C
    Weight20g
    Total Height (h1)62mm
    Height to Laseraxis (h2)47mm
    Height of Base (h3)17mm
    Mount Diameter (d1)Ø12mm
    Diameter of Base (d2)Ø36mm
    Width of Mount (b)26mm
    Height of Mount (g)45mm
    Depth of Mount (t)12mm
    Angle of Rotation Alpha (α)360°
    Angle of Rotation Beta (β)±180°
  • Illustration and technical drawing
  • KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 1
    KS-MOUNT-12(36X62)-MAGNETIC - Hauptbild
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 2
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 3
    KS-MOUNT-12(36X62)-MAGNETIC - Produktbild 4
  • Downloads
  • Contact
  • Please note our privacy policy.

    These are mandatory fields

KS-MOUNT-12(36X62)-MAGNETIC – Shops

  • KS-MOUNT-12(36X62)-MAGNETIC available on Laserfuchs
  • KS-MOUNT-12(36X62)-MAGNETIC available on Ebay
  • KS-MOUNT-12(36X62)-MAGNETIC available on shop.picotronic.de
  • KS-MOUNT-12(36X62)-MAGNETIC available on Mercateo
