MLH660-5-10(10x50)45-PWL-F1815-P
Número de pedido: 70141993
Descripción del producto:

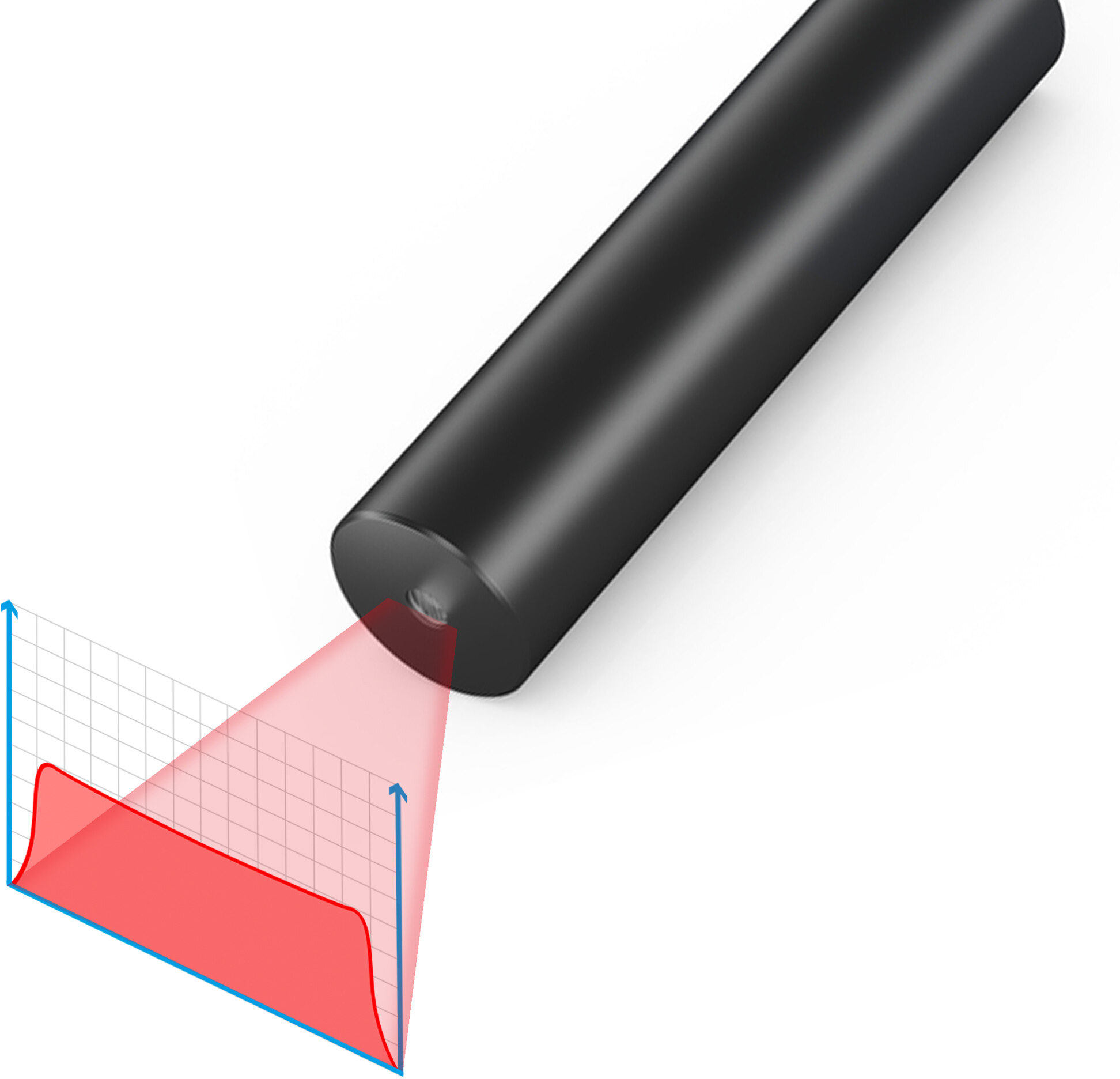

line laser, red, 45°, 660nm, 5mW, 10V DC, 10x50mm, class 2M, uniform line distribution, Powell lens, Focus 1815mm, Output power control 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
Descripción del producto:
line laser, red, 45°, 660nm, 5mW, 10V DC, 10x50mm, class 2M, uniform line distribution, Powell lens, Focus 1815mm, Output power control 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 660nm
(rot)Optical Power 5mW Laser Class 2M Divergence 1mrad Fan Angle 45° Line Thickness <1mm@1815mm Operating Distance 1.815m Optics Powell Lens Laser technology Single Mode Diode Opt. Power Stability at const. Temp. <5% Axial Divergence ±1° Size Material aluminium Cable length 100mm Wire type 26AWG, UL, isolated Focus fixed (1815mm) Output Aperture 4mm Potential of Housing aislado Max. Mod. Frequency 50kHz Lifetime >10000h Operating Voltage 9.5 - 10.5, typ 10V DC Operating Current 30 - 80, typ 50mA Housing Color negro Operating Temperature -20°C - 60°C Storage Temperature -40°C - 85°C Weight 20g Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 10V DC Modulación:
verde 50kHz - Accesorios idóneos
LABEL-DIN-CLASS2M-DE
Pedido Nr.: 70114201
Safety Label german DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.60 EUR- Downloads
